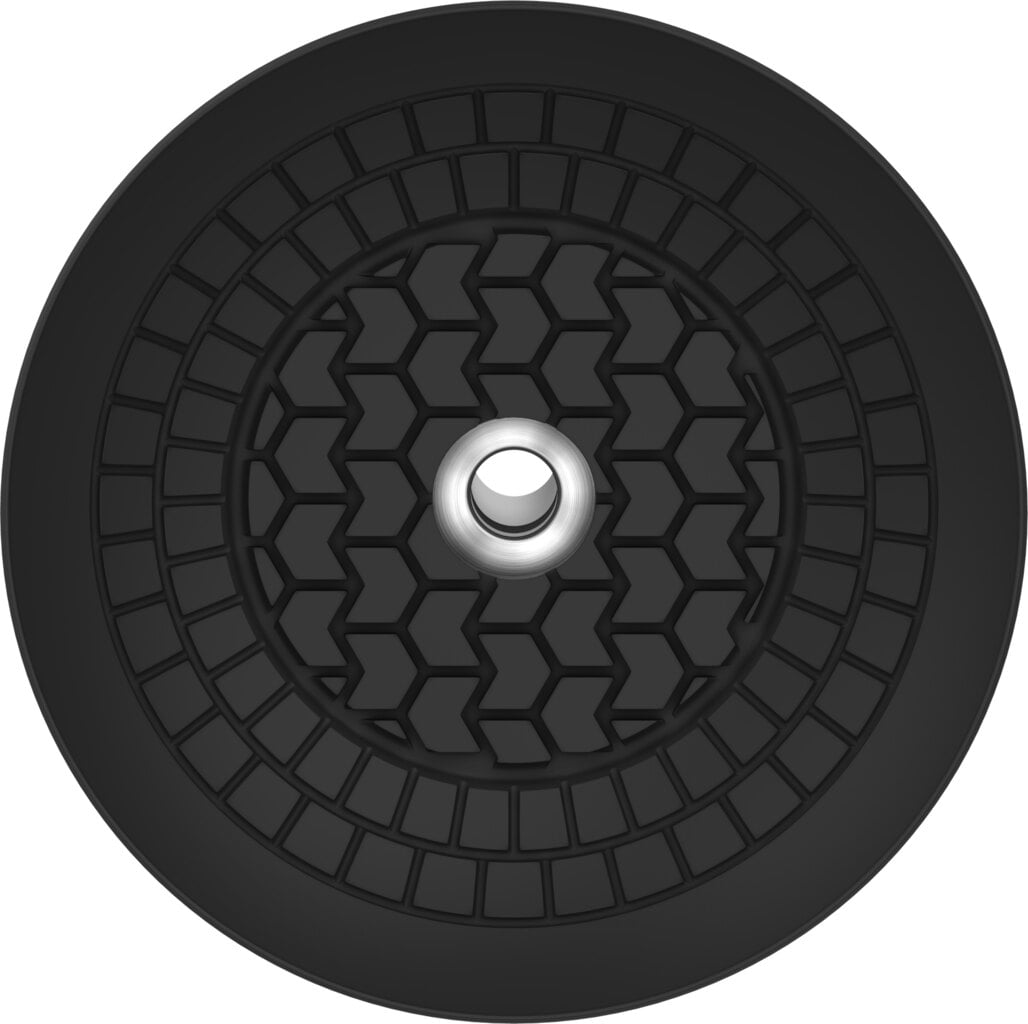

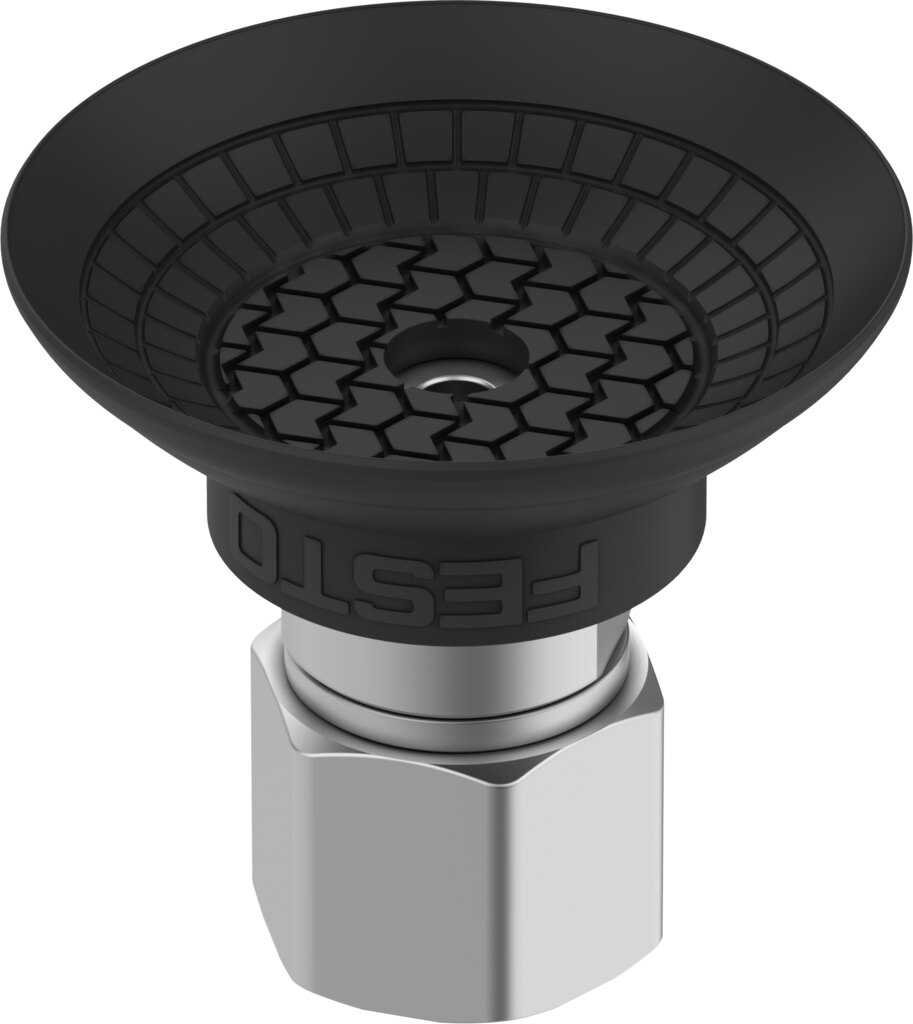

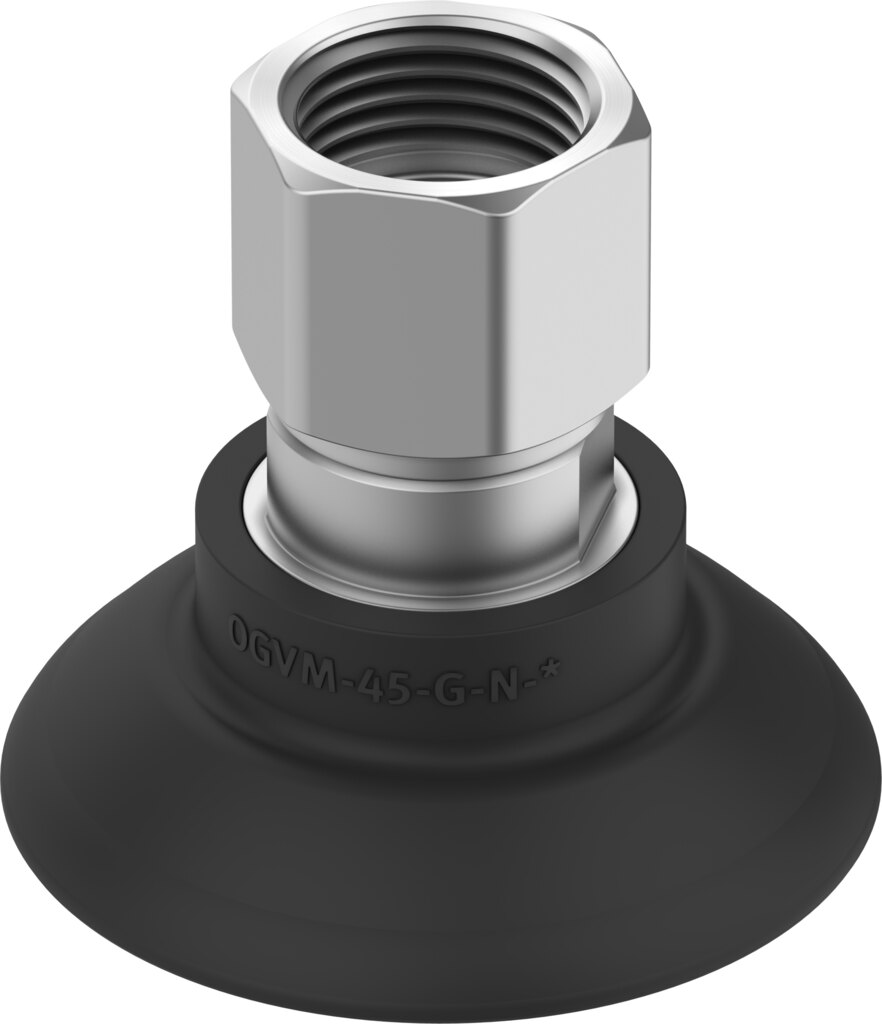

Round bell-shaped vacuum suction cup Ø 45 mm NBR G3/8 OGVM-45-G-N-G38F - Festo 8211022

Festo ✓ Original product Brand new

With 77 N of holding force at -0.6 bar, the Festo OGVM-45-G-N-G38F vacuum suction cup (Ø 45 mm) holds parts reliably during handling. Round bell-shaped design made of NBR. Bell shape for curved workpieces from a workpiece radius of 25 mm. NBR suction cup, Shore hardness 60 +/-5.

Net
€36.71
excl. VAT
Item FES-8211022
Manufacturer no. OGVM-45-G-N-G38F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 77 N of holding force at -0.6 bar, the Festo OGVM-45-G-N-G38F vacuum suction cup (Ø 45 mm) holds parts reliably during handling.

Why choose it

  • 77 N holding force at -0.6 bar nominal operating pressure
  • Bell shape for curved workpieces from a workpiece radius of 25 mm
  • NBR suction cup, Shore hardness 60 +/-5
  • Lateral force of 117 N at nominal operating pressure, relevant for fast sideways moves
  • Mounts directly via the female thread G3/8 vacuum connection

Typical applications

The bell shape suits curved surfaces and textured parts, such as tubes, mouldings or castings.

Technical data

TypeOGVM-45-G-N-G38F
Festo part number8211022
Height compensator for suction cup7.8 mm
Minimum workpiece radius25 mm
Nominal size4 mm
Suction cup diameter45 mm
Suction cup volume9.4 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound bell-shaped
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure77 N
Lateral force at nominal operating pressure117 N
Product weight25 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G3/8
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.027 kg
ManufacturerFesto
Hersteller-NrOGVM-45-G-N-G38F
EAN4052568790363
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 3/8 IG
Nominal size DN [mm]4
Diameter [mm]45
MediumAir
Thread typeInternal thread
Pneumatic connectionG3/8 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
