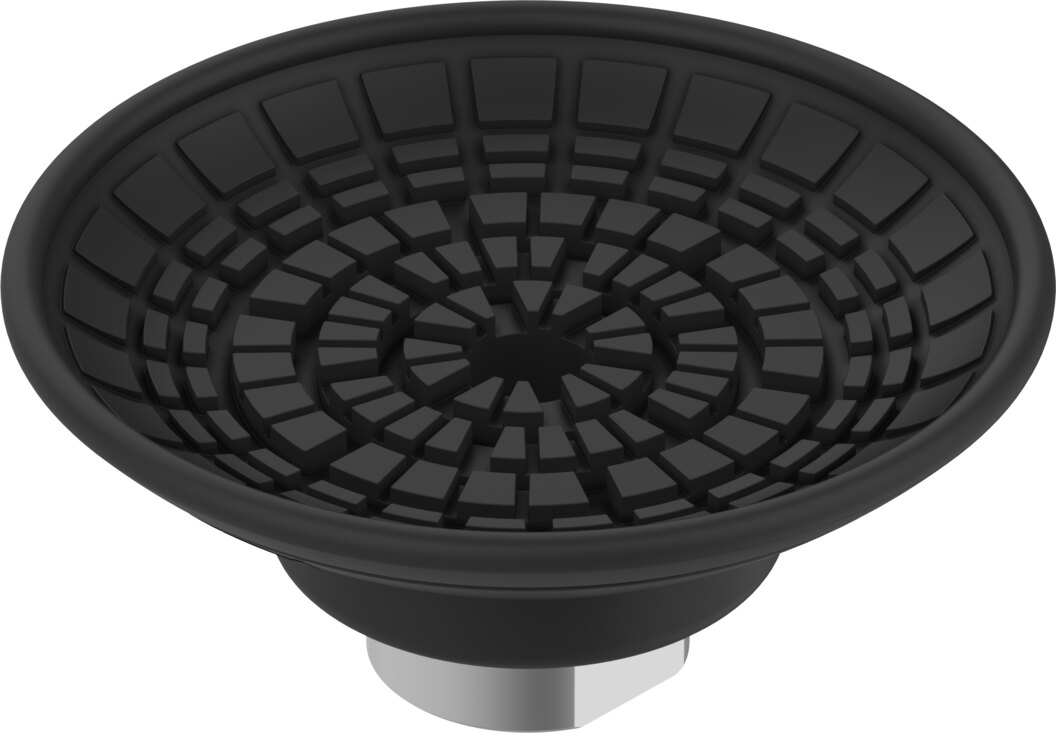

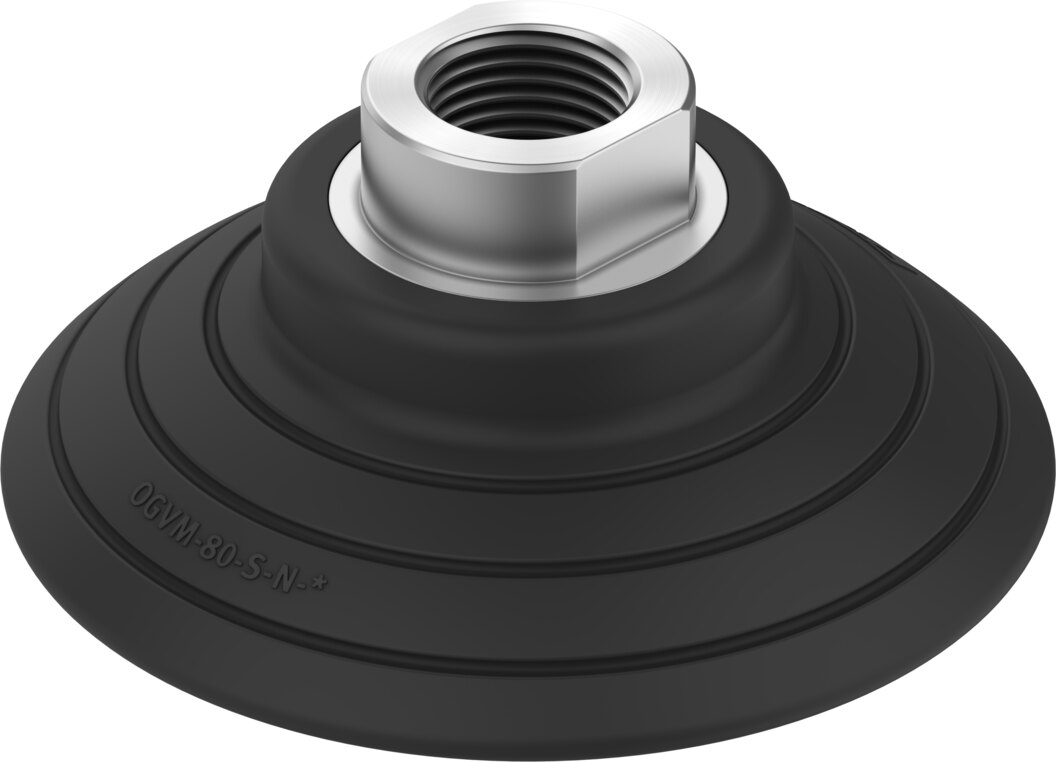

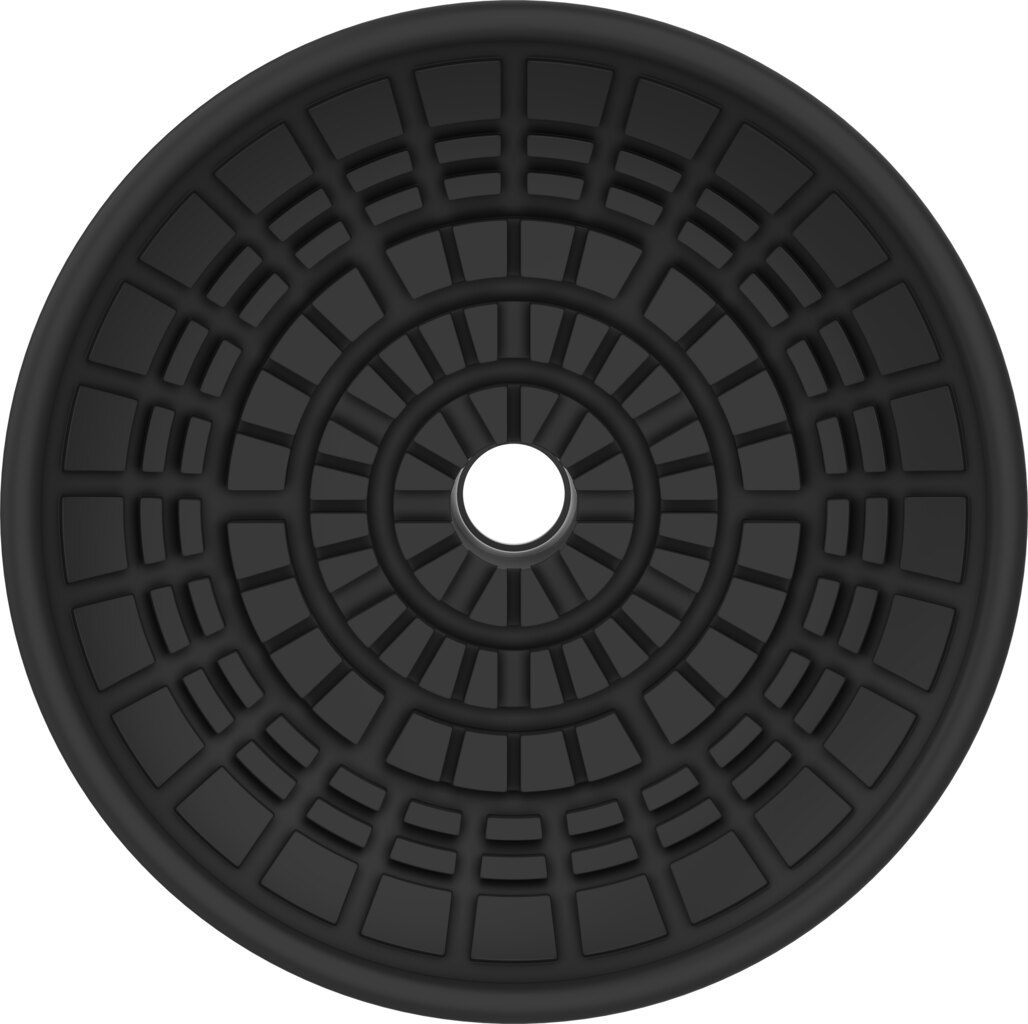

Round flat vacuum suction cup Ø 80 mm NBR G3/8 OGVM-80-S-N-G38F - Festo 8211016
With 225 N of holding force at -0.6 bar, the Festo OGVM-80-S-N-G38F vacuum suction cup (Ø 80 mm) holds parts reliably during handling. Round flat design made of NBR. Low internal volume of 35 cm³ in a flat design, so the vacuum builds up quickly. NBR suction cup, Shore hardness 60 +/-5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 225 N of holding force at -0.6 bar, the Festo OGVM-80-S-N-G38F vacuum suction cup (Ø 80 mm) holds parts reliably during handling.
Why choose it
- 225 N holding force at -0.6 bar nominal operating pressure
- Low internal volume of 35 cm³ in a flat design, so the vacuum builds up quickly
- NBR suction cup, Shore hardness 60 +/-5
- Lateral force of 113 N at nominal operating pressure, relevant for fast sideways moves
- Vacuum connection female thread G3/8 on top, mounted directly via the port
Applications
Flat suction cups suit smooth, even workpieces such as sheet metal, glass, cardboard or plastic panels.
Technical data
| Type | OGVM-80-S-N-G38F |
|---|---|
| Festo part number | 8211016 |
| Height compensator for suction cup | 7.6 mm |
| Minimum workpiece radius | 70 mm |
| Nominal size | 8 mm |
| Suction cup diameter | 80 mm |
| Suction cup volume | 35 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, flat |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 225 N |
| Lateral force at nominal operating pressure | 113 N |
| Product weight | 60 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G3/8 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-80-S-N-G38F |
| EAN | 4052568790332 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Thread | G 3/8 IG |
| Nominal size DN [mm] | 8 |
| Diameter [mm] | 80 |
| Medium | Air |
| Thread type | Internal thread |
| Pneumatic connection | G3/8 IG |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
