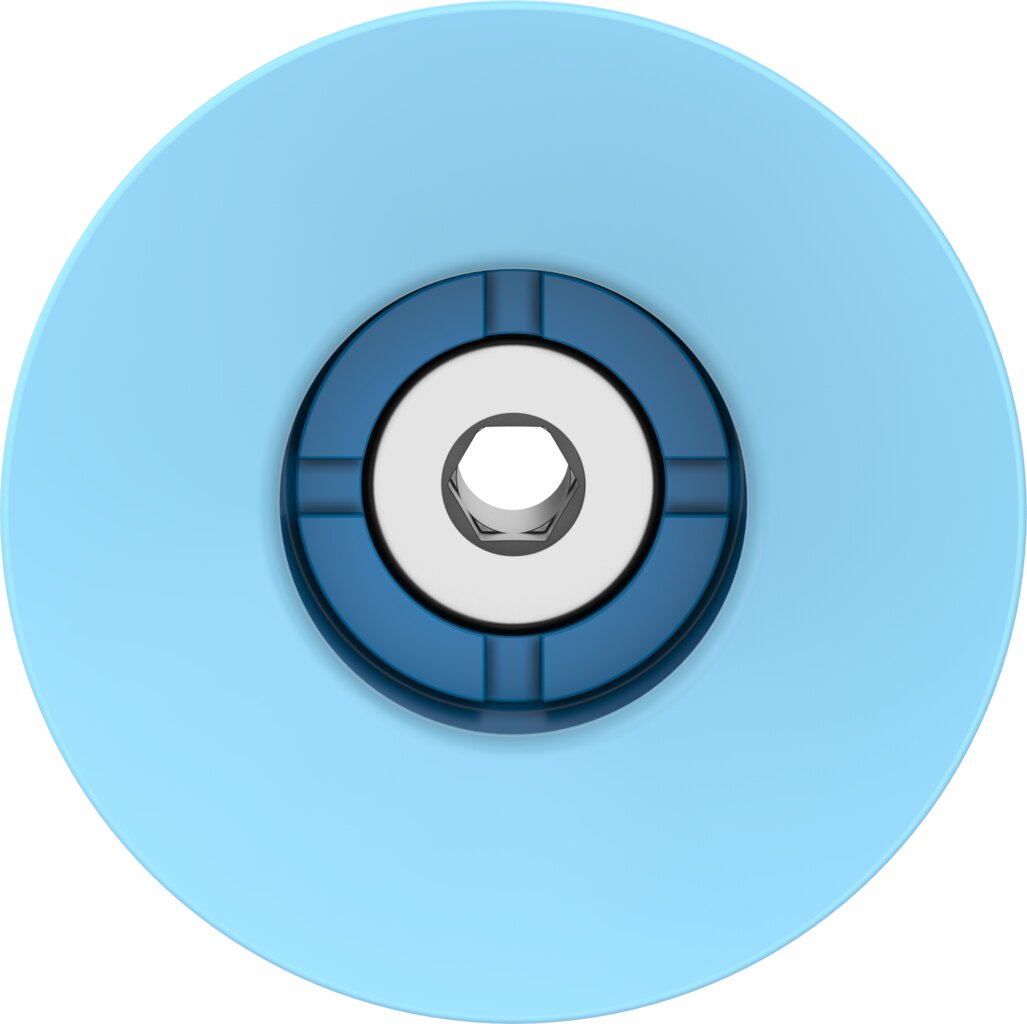

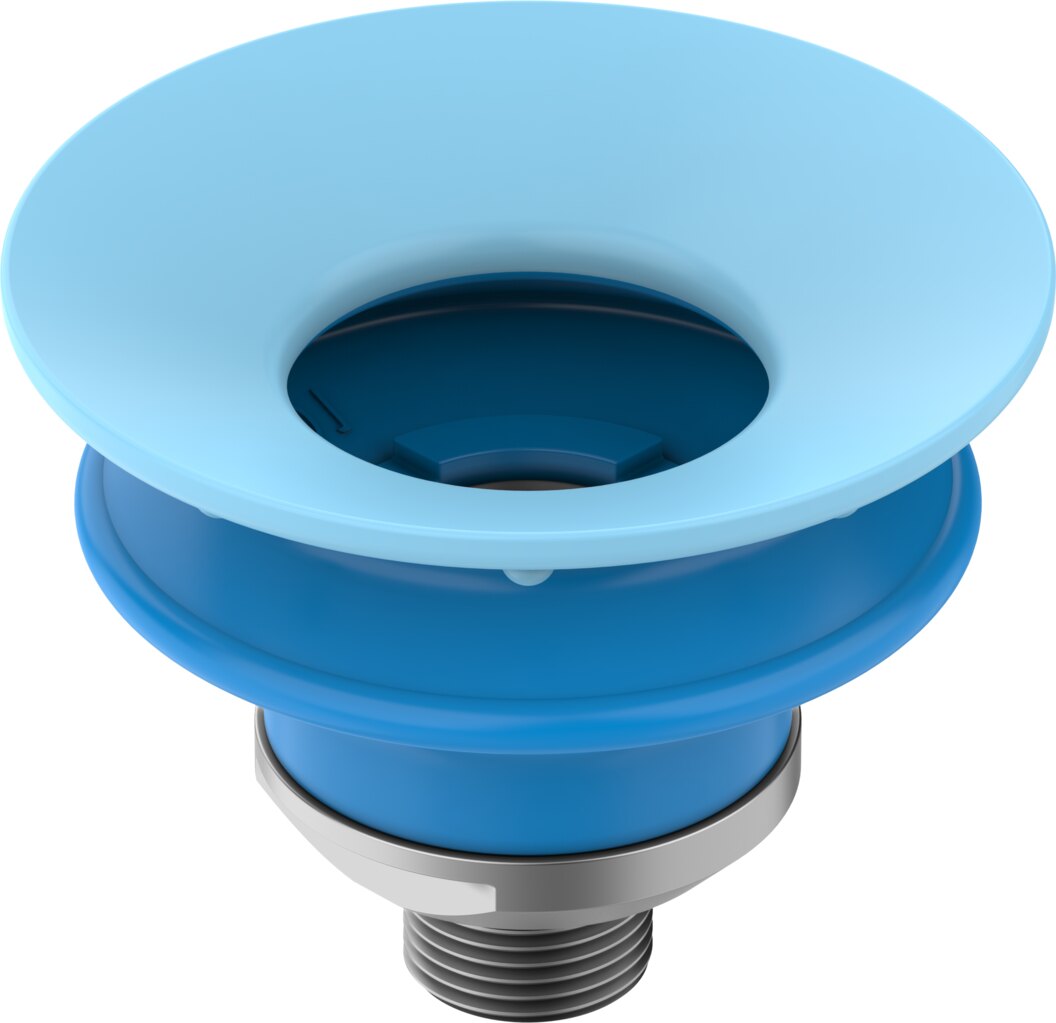

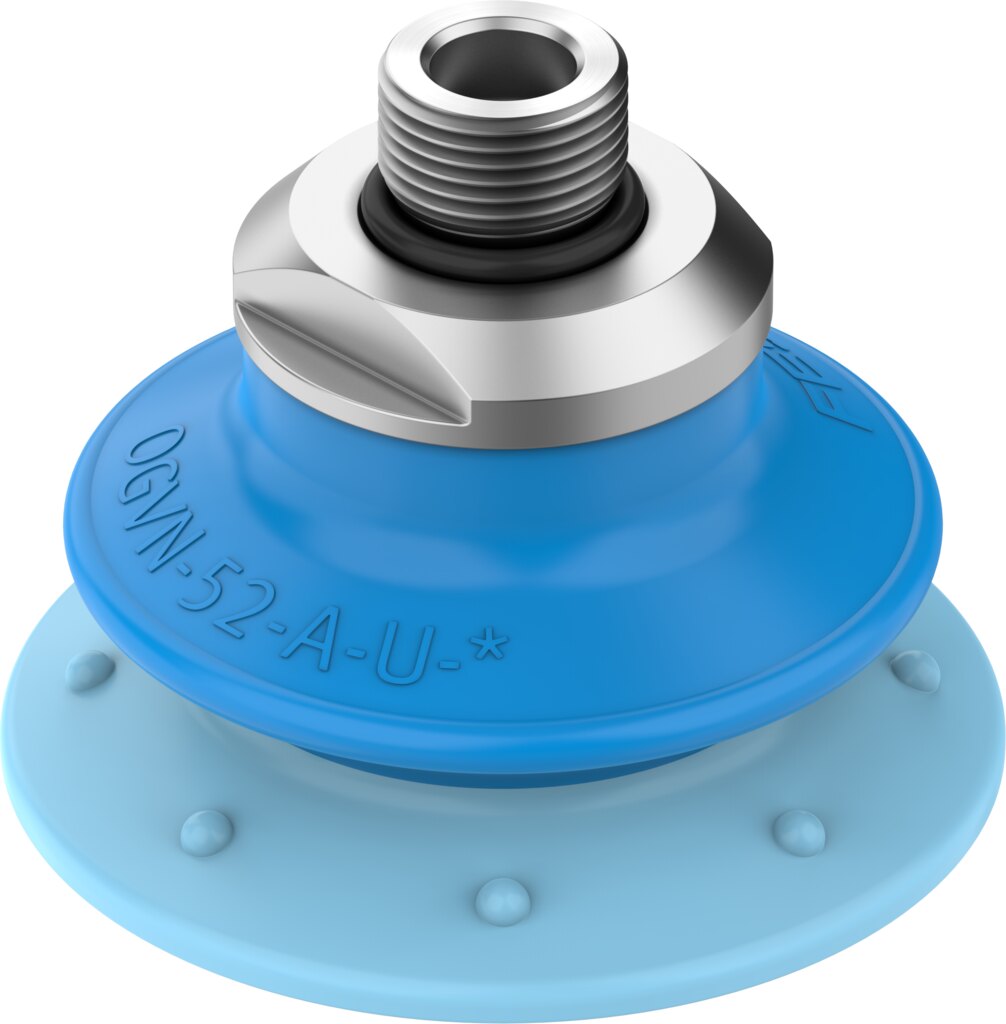

Round bellows vacuum suction cup Ø 52 mm PUR G1/4 OGVN-52-A-U-G14 - Festo 8204833
With 90 N of holding force at -0.7 bar, the Festo OGVN-52-A-U-G14 vacuum suction cup (Ø 52 mm) holds parts reliably during handling. Round bellows design made of PUR. The 1.5-convolution bellows compensates 11.2 mm in height and touches down gently.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 90 N of holding force at -0.7 bar, the Festo OGVN-52-A-U-G14 vacuum suction cup (Ø 52 mm) holds parts reliably during handling.
Benefits
- Holding force of 90 N at a nominal operating pressure of -0.7 bar
- The 1.5-convolution bellows compensates 11.2 mm in height and touches down gently
- Suction cup material PUR with Shore hardness A 70 +/-5
- Takes up 65 N of lateral force at nominal operating pressure
- Mounts directly via the G1/4 vacuum connection
Areas of use
Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.
Technical data
| Type | OGVN-52-A-U-G14 |
|---|---|
| Festo part number | 8204833 |
| Height compensator for suction cup | 11.2 mm |
| Nominal size | 6 mm |
| Suction cup diameter | 52 mm |
| Suction cup volume | 13.3 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | 10 to 45 °C |
| Holding force at nominal operating pressure | 90 N |
| Lateral force at nominal operating pressure | 65 N |
| Product weight | 14.2 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | G1/4 |
| Colour | Blue/light blue |
| Shore hardness | A 70 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | PUR |
| Weight | 0.03 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVN-52-A-U-G14 |
| EAN | 4052568929954 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PUR |
| Thread | G 1/4 |
| Nominal size DN [mm] | 6 |
| Diameter [mm] | 52 |
| Medium | Air |
| Pneumatic connection | G1/4 |
| Temperature (max.) | 45 |
