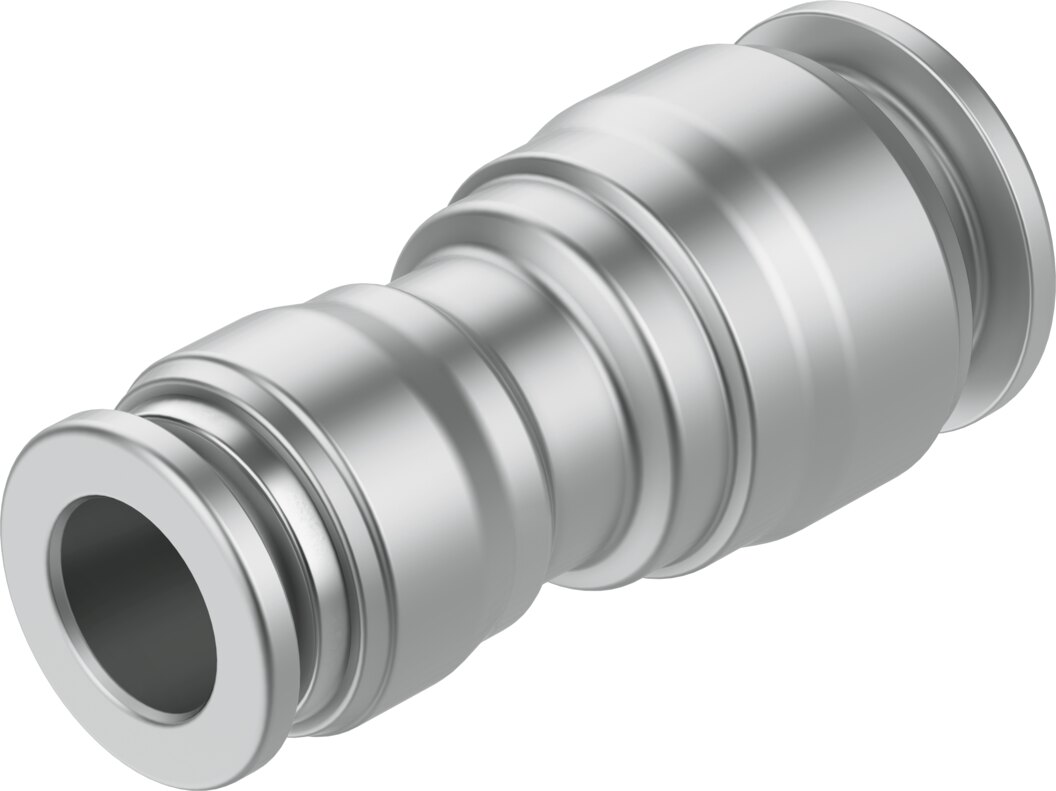

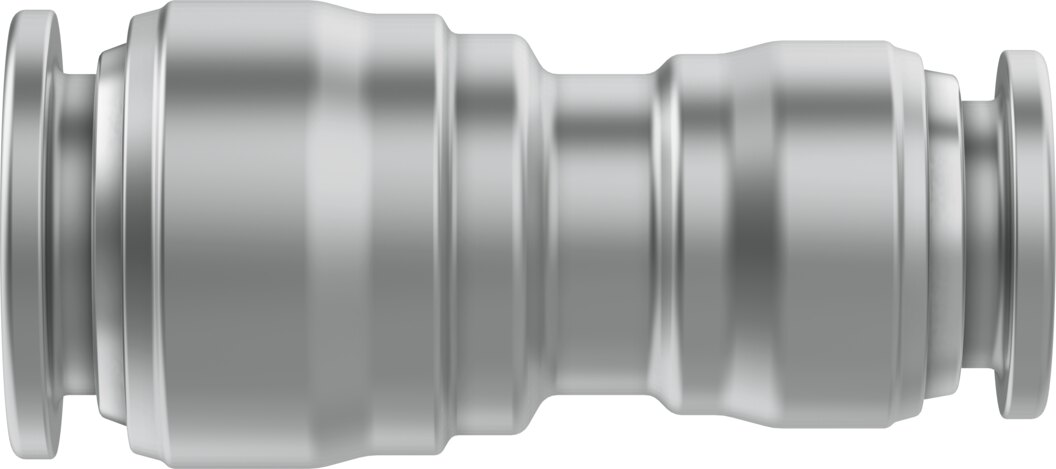

Straight push-in connector for tubing OD 10 mm to 8 mm, stainless steel NPQR-D-Q10-Q8 - Festo 8085706

Festo ✓ Original product Brand new

The straight push-in connector NPQR-D-Q10-Q8 joins tubing with an OD of 10 mm to tubing with an OD of 8 mm. The NPQR-D-Q10-Q8 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. NSF/ANSI 169 listed for the food sector and also usable with water.

Net
€36.88
excl. VAT
Item FES-8085706
Manufacturer no. NPQR-D-Q10-Q8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The straight push-in connector NPQR-D-Q10-Q8 joins tubing with an OD of 10 mm to tubing with an OD of 8 mm. The NPQR-D-Q10-Q8 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Food sector NSF/ANSI 169, see declaration of conformity
  • Nominal width 7 mm
  • Also for water max. 7 bar at 0 to 80 °C
  • Ambient temperature -20 to 150 °C
  • Push-pull principle push the tube in, press the silver release ring to remove it

Applications

NPQR-D-Q10-Q8 is used to extend, repair and reduce tubing lines in machine building. The NPQR-D-Q10-Q8 works with compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-D-Q10-Q8
Festo part number8085706
SizeStandard
Nominal width7 mm
Tubing insertion depth17.25 to 19.35 mm
Note on tubing insertion depthØ8 depth 17.25 mm, Ø10 depth 19.35 mm
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Product weight25.1 g
Pneumatic connection 1For tubing OD 10 mm
Pneumatic connection 2For tubing OD 8 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.025 kg
ManufacturerFesto
Hersteller-NrNPQR-D-Q10-Q8
EAN4052568454951
Zolltarifnummer73072980
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
Nominal size DN [mm]7
Size BGStandard
Seal materialFPM
MediumCompressed air
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
