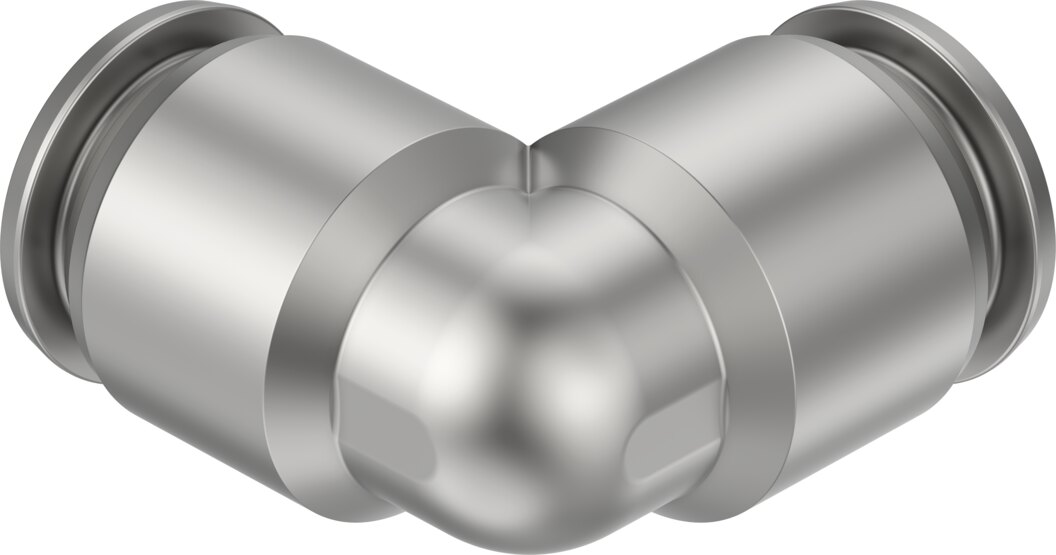

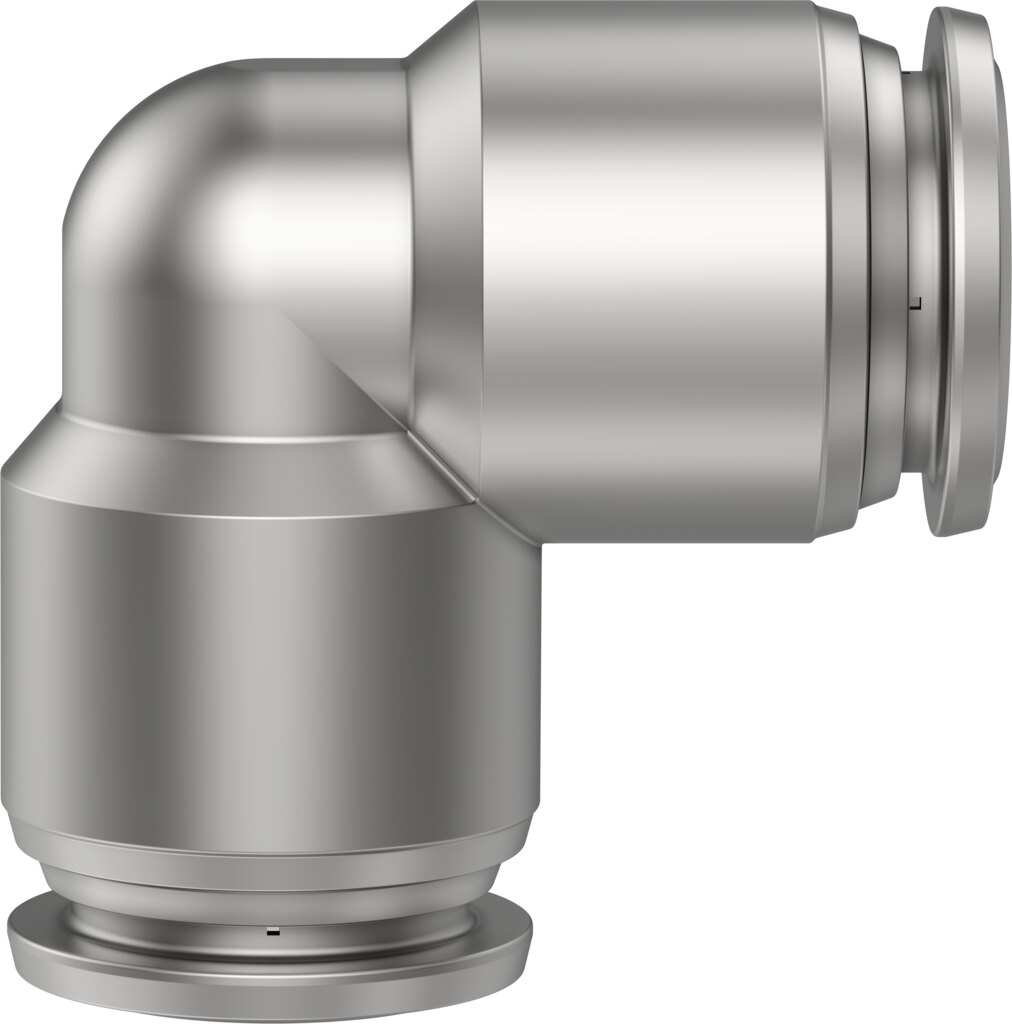

Push-in L-connector for tubing OD 14 mm, stainless steel NPQR-L-Q14-E - Festo 8085714

Festo ✓ Original product Brand new

The push-in L-connector NPQR-L-Q14-E routes a tubing line with an OD of 14 mm round a corner. Operating limits: -0.95 to 12 bar and -5 to 150 °C. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.

Net
€96.46
excl. VAT
Item FES-8085714
Manufacturer no. NPQR-L-Q14-E
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in L-connector NPQR-L-Q14-E routes a tubing line with an OD of 14 mm round a corner. Operating limits: -0.95 to 12 bar and -5 to 150 °C.

Benefits

  • From vacuum up to 12 bar operating pressure -0.95 to 12 bar across the full temperature range
  • LABS (PWIS) conformity to VDMA24364-B2-L
  • Cleanroom suitable class 4 to ISO 14644-1
  • Battery production reduced Cu/Zn/Ni content to F1a
  • Food sector NSF/ANSI 169, see declaration of conformity
  • Nominal width 14 mm

Applications

NPQR-L-Q14-E is meant for routing tubing round corners and in tight spaces. The NPQR-L-Q14-E works with compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-L-Q14-E
Festo part number8085714
SizeStandard
Nominal width14 mm
Tubing insertion depth21.5 mm
Mounting positionAny
DesignL-shape
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 12 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-5 to 150 °C
Note on ambient temperatureWith PUN-H: -20 to 60 °C
Product weight60.6 g
Pneumatic connection 1For tubing OD 14 mm
Pneumatic connection 2For tubing OD 14 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.06 kg
ManufacturerFesto
Hersteller-NrNPQR-L-Q14-E
EAN4052568553319
Zolltarifnummer73072980
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
BauformL-Form
For hose OD [mm]14
Nominal size DN [mm]14
Size BGStandard
Seal materialFPM
MediumCompressed air
Betriebsdruck max [bar]12
Temperature (max.)150
