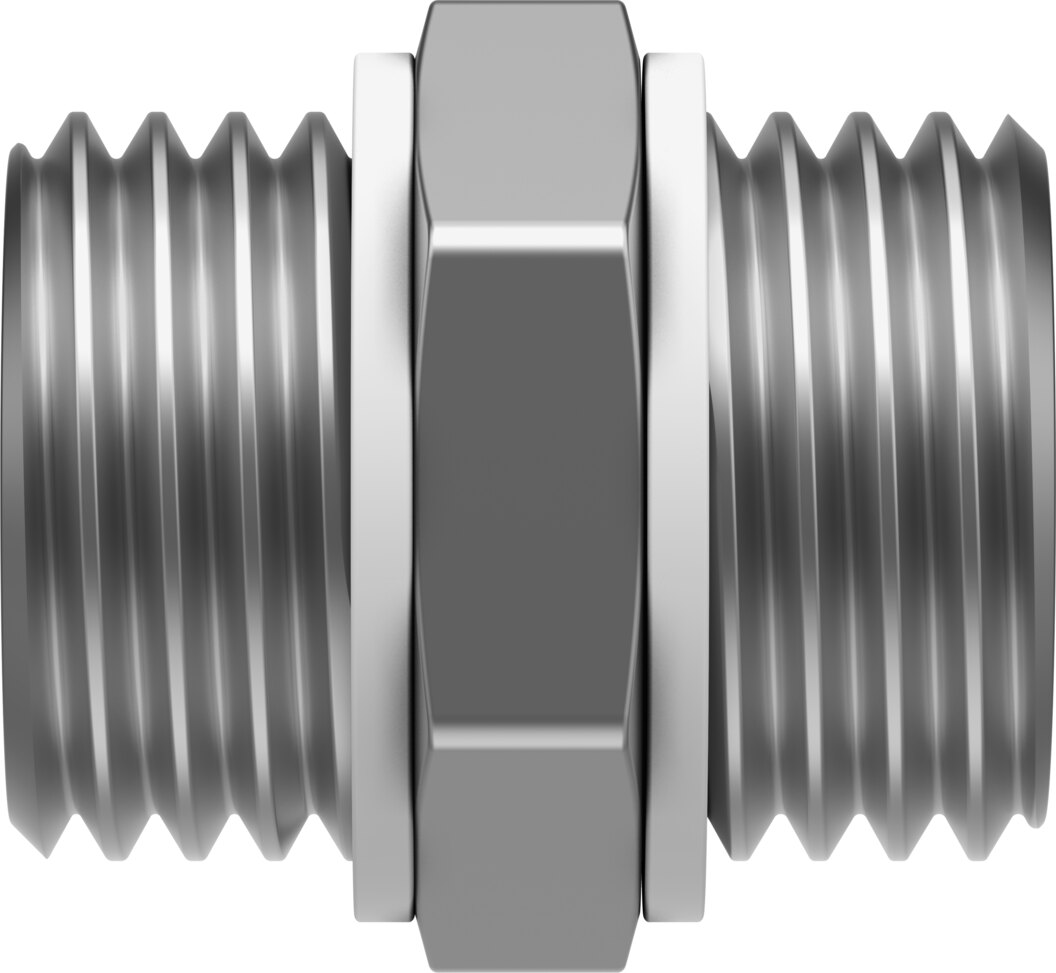

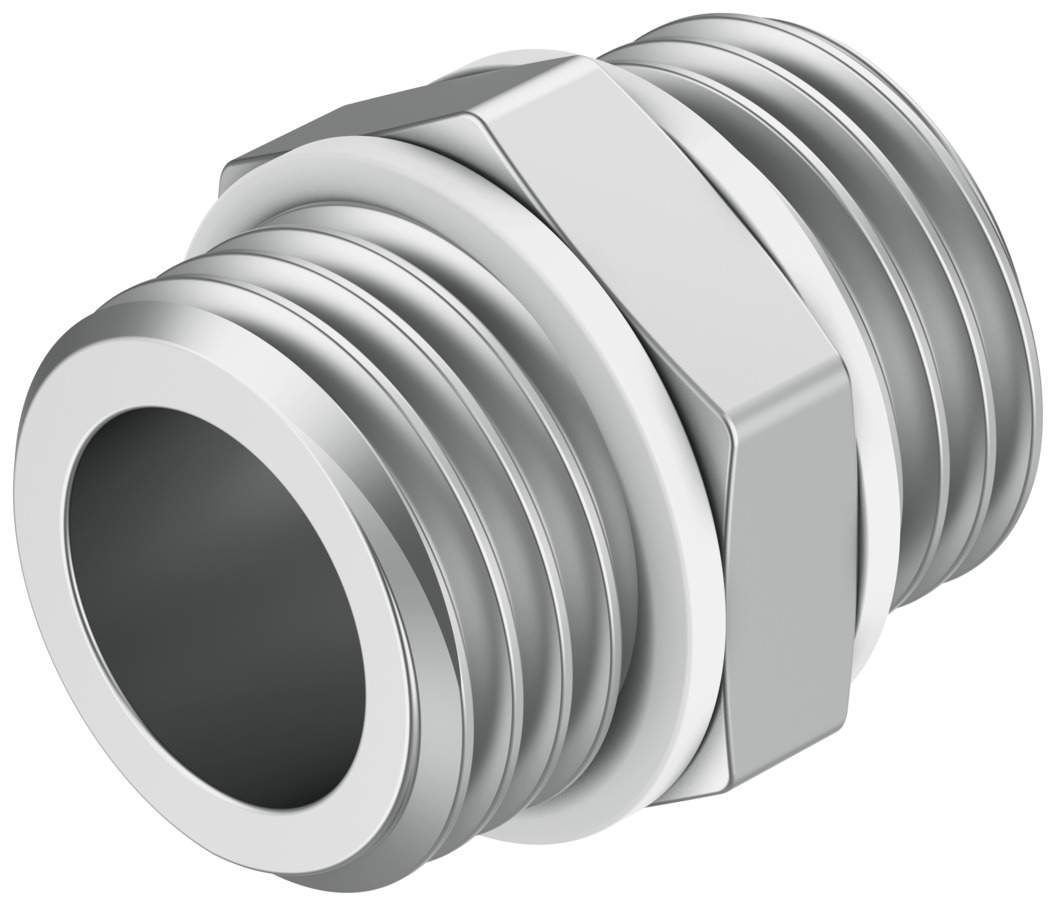

Double nipple G3/8 on both ends made of nickel-plated brass NPFC-DS-G38-G38-M - Festo 8142588

Festo ✓ Original product Brand new

The NPFC-DS-G38-G38-M double nipple screws two components with female threads directly together. Both ends carry G3/8. Materials: threaded fitting made of nickel-plated brass, seal made of PVC.

Net
€2.28
excl. VAT
Item FES-8142588
Manufacturer no. NPFC-DS-G38-G38-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The NPFC-DS-G38-G38-M double nipple screws two components with female threads directly together. Pressure range NPFC-DS-G38-G38-M: -0.95 to 10 bar.

Benefits in use

  • Operating pressure -0.95 to 10 bar, vacuum-capable
  • Ambient temperature -10 to 60 °C
  • Threaded fitting made of nickel-plated brass
  • Corrosion resistance class CRC 1 for low corrosion stress
  • Defined assembly with nominal tightening torque 38.5 Nm
  • PWIS (LABS) conformity to VDMA24364-B2-L

Applications

For compact assemblies of valves, manifolds, filters and fittings.

Technical data

FeatureValue
TypeNPFC-DS-G38-G38-M
Festo part number8142588
Threaded fitting materialNickel-plated brass
Operating pressure-0.95 to 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B2-L
Ambient temperature-10 to 60 °C
Nominal tightening torque, port 138.5 Nm
Nominal tightening torque, port 238.5 Nm
Tolerance of nominal tightening torque± 20 %
Pneumatic connection 1G3/8
Pneumatic connection 2G3/8
Material noteRoHS compliant
Seal materialPVC
Weight0.025 kg
ManufacturerFesto
Hersteller-NrNPFC-DS-G38-G38-M
EAN4052568568214
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass
ThreadG 3/8
Thread 2G 3/8
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG3/8
Temperaturbereich-10-60 °C
Temperature (max.)60
