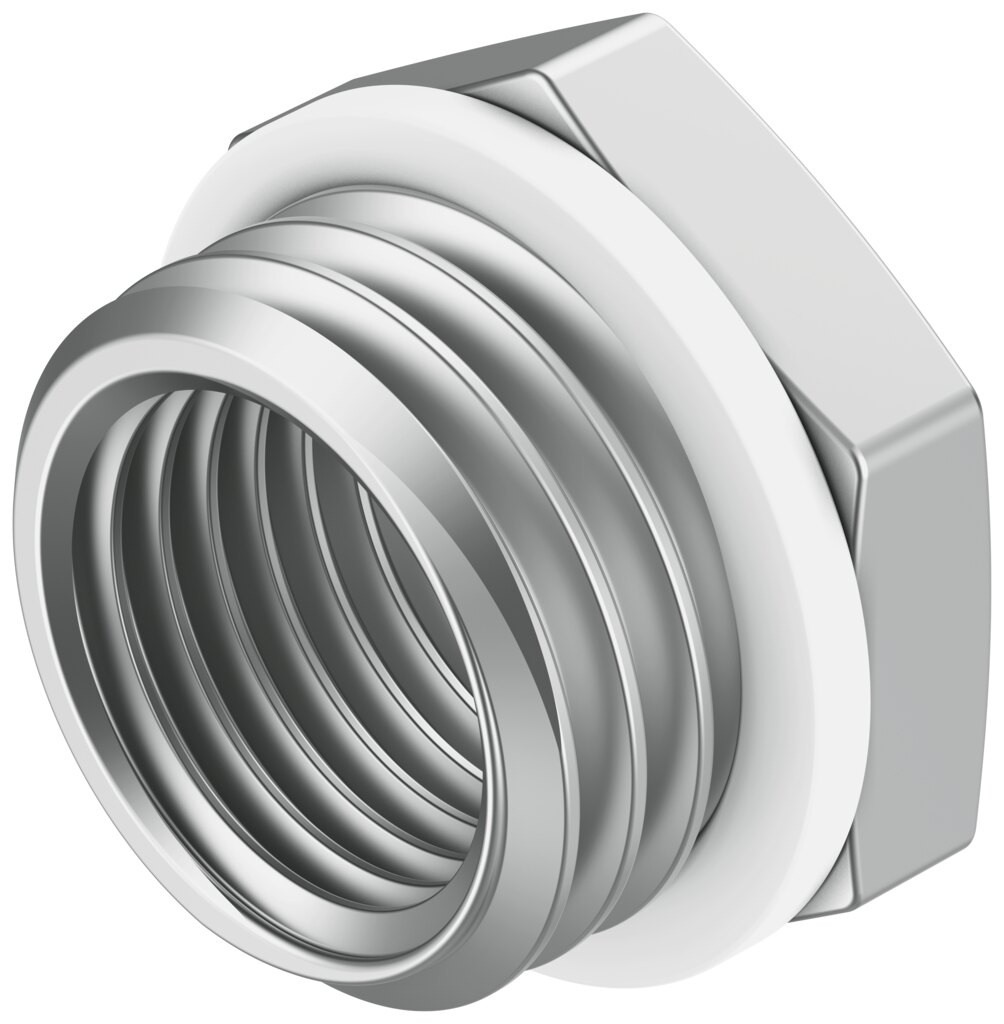

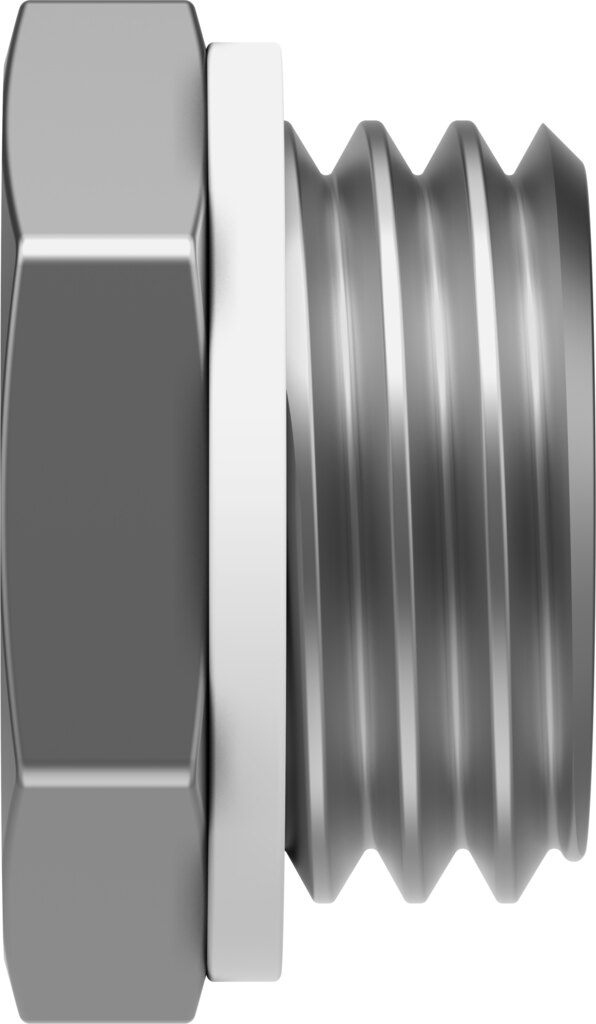

Reducing nipple G1/2 to G3/8 made of nickel-plated brass NPFC-RS-G12-G38-MF - Festo 8142598

Festo ✓ Original product Brand new

The NPFC-RS-G12-G38-MF reducing nipple connects two threaded ports of different sizes directly. Connections: G1/2 to G3/8. Usable from vacuum (-0.95 bar) up to 10 bar.

Net
€2.91
excl. VAT
Item FES-8142598
Manufacturer no. NPFC-RS-G12-G38-MF
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The NPFC-RS-G12-G38-MF reducing nipple connects two threaded ports of different sizes directly. Usable from vacuum (-0.95 bar) up to 10 bar.

Benefits

  • Operating pressure -0.95 to 10 bar, vacuum-capable
  • Ambient temperature -10 to 60 °C
  • Threaded fitting made of nickel-plated brass
  • Corrosion resistance class CRC 1 for low corrosion stress
  • Defined assembly with nominal tightening torque 47.9 Nm
  • PWIS (LABS) conformity to VDMA24364-B2-L

Applications

For valves, manifolds and fittings with differing port sizes.

Technical data

FeatureValue
TypeNPFC-RS-G12-G38-MF
Festo part number8142598
Threaded fitting materialNickel-plated brass
Operating pressure-0.95 to 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B2-L
Ambient temperature-10 to 60 °C
Nominal tightening torque, port 147.9 Nm
Tolerance of nominal tightening torque± 20 %
Pneumatic connection 1G1/2
Pneumatic connection 2G3/8
Material noteRoHS compliant
Seal materialPVC
Weight0.022 kg
ManufacturerFesto
Hersteller-NrNPFC-RS-G12-G38-MF
EAN4052568568313
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass
ThreadG 1/2
Thread 2G 3/8
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1/2
Temperaturbereich-10-60 °C
Temperature (max.)60
