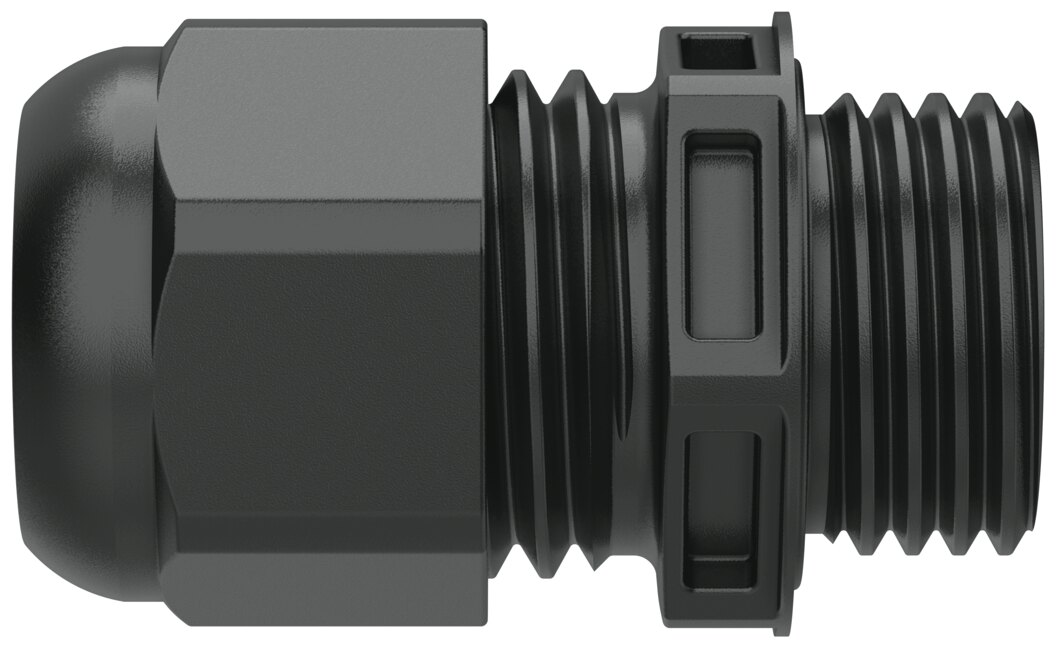

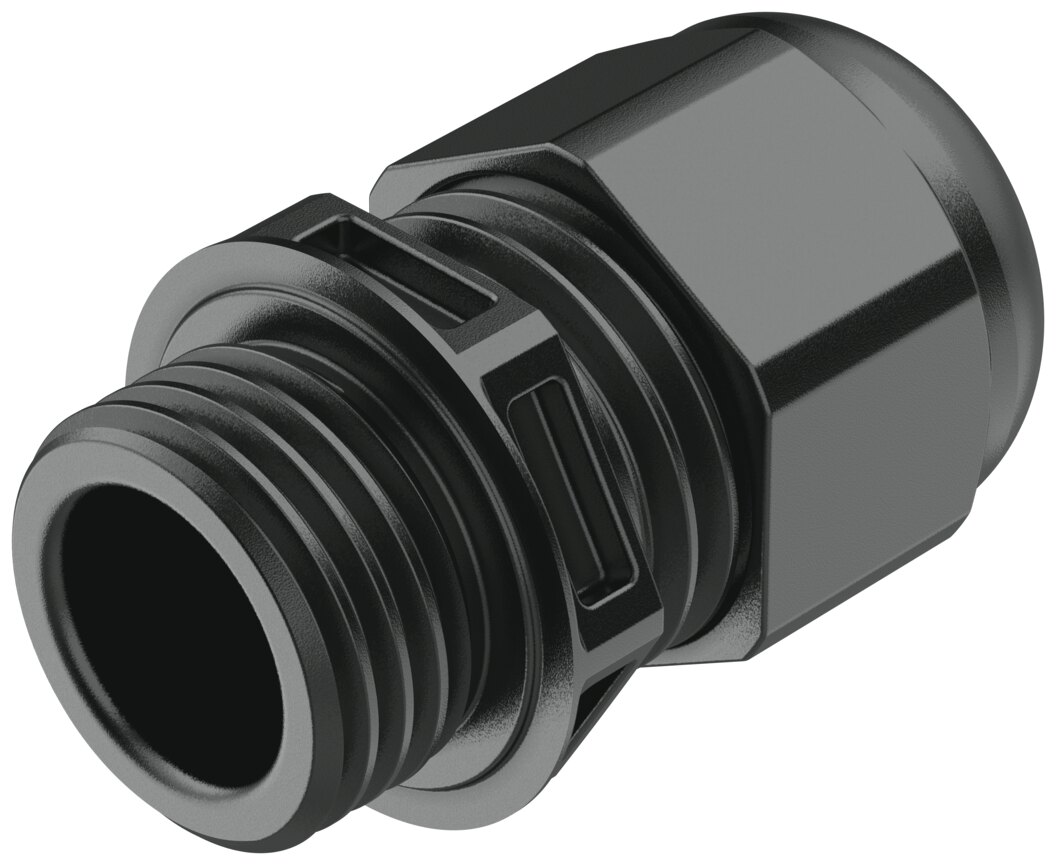

Cable gland for electrical connection technology M20x1.5 IP68 NETC-M20-PBK-T14 - Festo 8151590
The Festo cable gland NETC-M20-PBK-T14 leads cables into housings with a seal. At a glance: size M20x1.5 and for cable diameters of 4 to 13 mm. Plus: degree of protection IP66, IP68 (dust-tight, protected against continuous immersion).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo cable gland NETC-M20-PBK-T14 leads cables into housings with a seal. At a glance: size M20x1.5 and for cable diameters of 4 to 13 mm.
Benefits
- Sealed: degree of protection IP66, IP68, dust-tight, protected against continuous immersion
- Temperature range: usable from -40 to 100 °C
- Cable entry: for cable diameters of 4 to 13 mm
- PWIS: PWIS conformity VDMA24364 zone III
Applications
For electrical installation at valves, valve terminals and sensors. The permitted temperature range is -40 to 100 °C.
Technical data
| Feature | Value |
|---|---|
| Type | NETC-M20-PBK-T14 |
| Festo part number | 8151590 |
| Ambient temperature | -40 to 100 °C |
| Degree of protection | IP66, IP68 |
| Note on degree of protection | IP68 at 5 bar for 30 minutes |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| Size | M20x1.5 |
| Cable diameter | 4 to 13 mm |
| Colour | Black |
| Material cable gland | PA |
| Material seals | EPDM |
| Product weight | 14 g |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS compliant |
| Weight | 0.014 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NETC-M20-PBK-T14 |
| EAN | 4052568619985 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PA |
| Seal material | EPDM |
| Housing material | PA |
| Series | NETC |
| Protection rating | IP68 |
| Temperaturbereich | -40-100 °C |
| Temperature (max.) | 100 |
