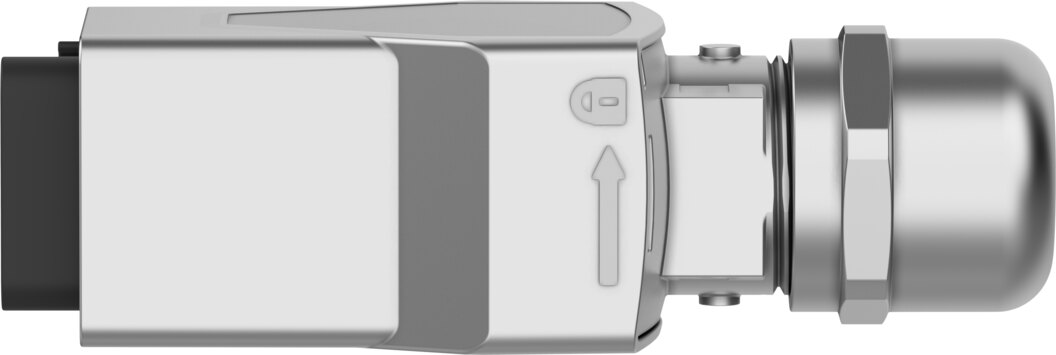

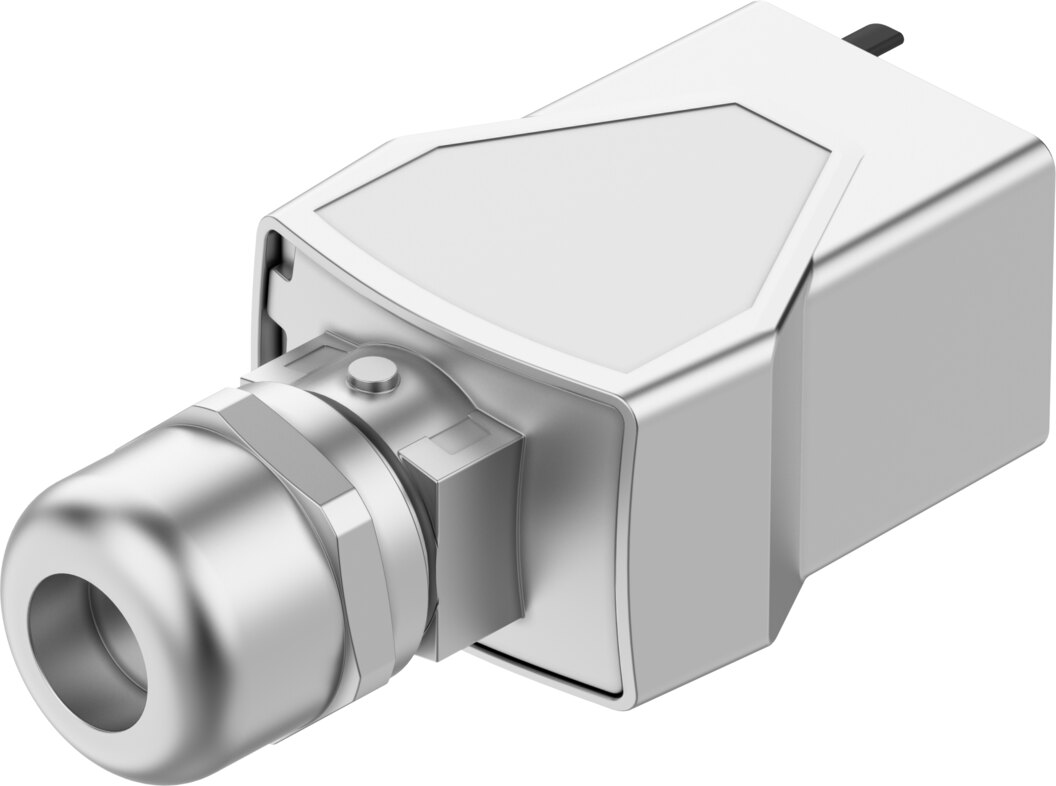

Dummy plug for electrical connection technology For IP67 NEAC-M-S-BD-R3SCPP - Festo 8090740
The Festo dummy plug NEAC-M-S-BD-R3SCPP closes an unused plug-in slot. At a glance: degree of protection IP65, IP67 (dust-tight, protected against temporary immersion) and ambient temperature -40 to 70 °C. Plus: housing made of Nickel-plated die-cast zinc.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo dummy plug NEAC-M-S-BD-R3SCPP closes an unused plug-in slot. At a glance: degree of protection IP65, IP67 (dust-tight, protected against temporary immersion) and ambient temperature -40 to 70 °C.
Benefits
- Sealed: degree of protection IP65, IP67, dust-tight, protected against temporary immersion
- Temperature range: usable from -40 to 70 °C
- Corrosion protection: corrosion resistance class CRC 1 (low corrosion stress)
- PWIS: PWIS conformity VDMA24364-A1-L
Applications
Intended for control and signal installations in machine building. The permitted temperature range is -40 to 70 °C.
Technical data
| Feature | Value |
|---|---|
| Type | NEAC-M-S-BD-R3SCPP |
| Festo part number | 8090740 |
| Width | 34 mm |
| Height | 22.4 mm |
| Length | 69.2 mm |
| Product weight | 79.6 g |
| Electrical connection 1, connector system | For RJ45 and SC-RJ |
| Electrical connection 1, type of mounting | Push-pull |
| Degree of protection | IP65, IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 to 70 °C |
| Storage temperature | -40 to 70 °C |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Housing colour | Silver |
| Material housing | Nickel-plated die-cast zinc |
| Material seals | NBR |
| Fire test | UL94 V-0 |
| Weight | 0.08 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEAC-M-S-BD-R3SCPP |
| EAN | 4052568772482 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Silver |
| Seal material | NBR |
| Protection rating | IP67 |
| Temperature (max.) | 70 |
