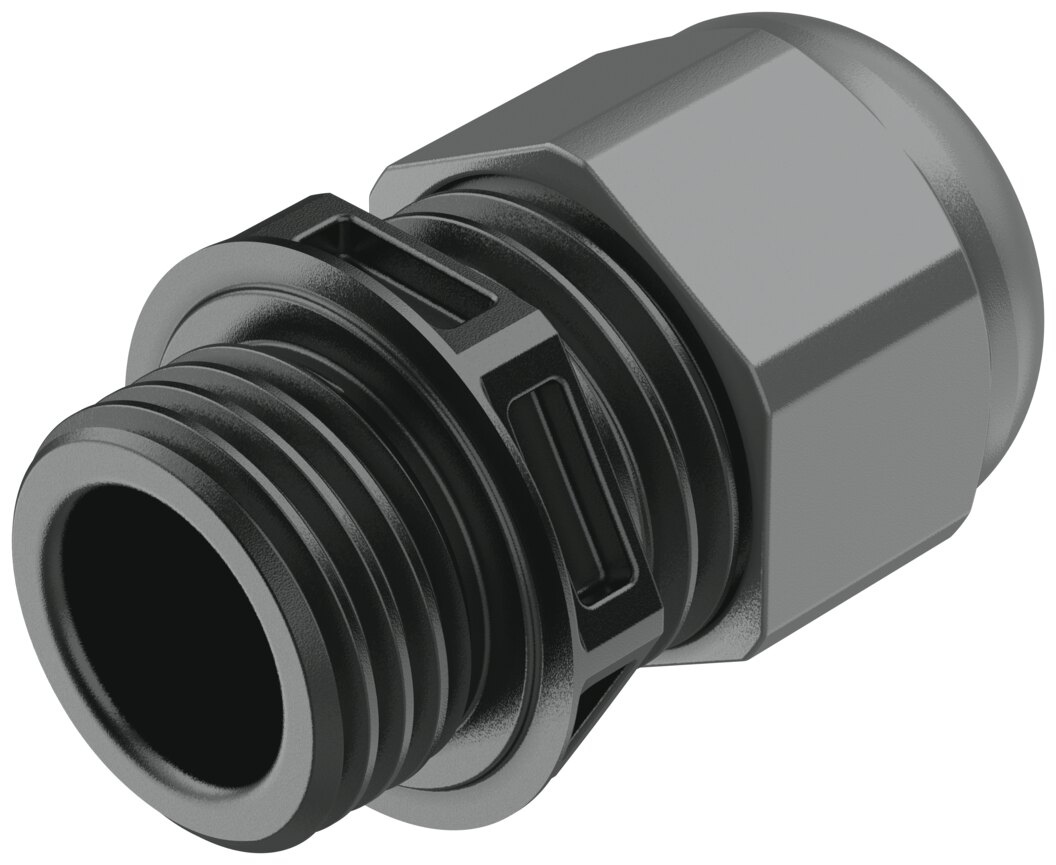

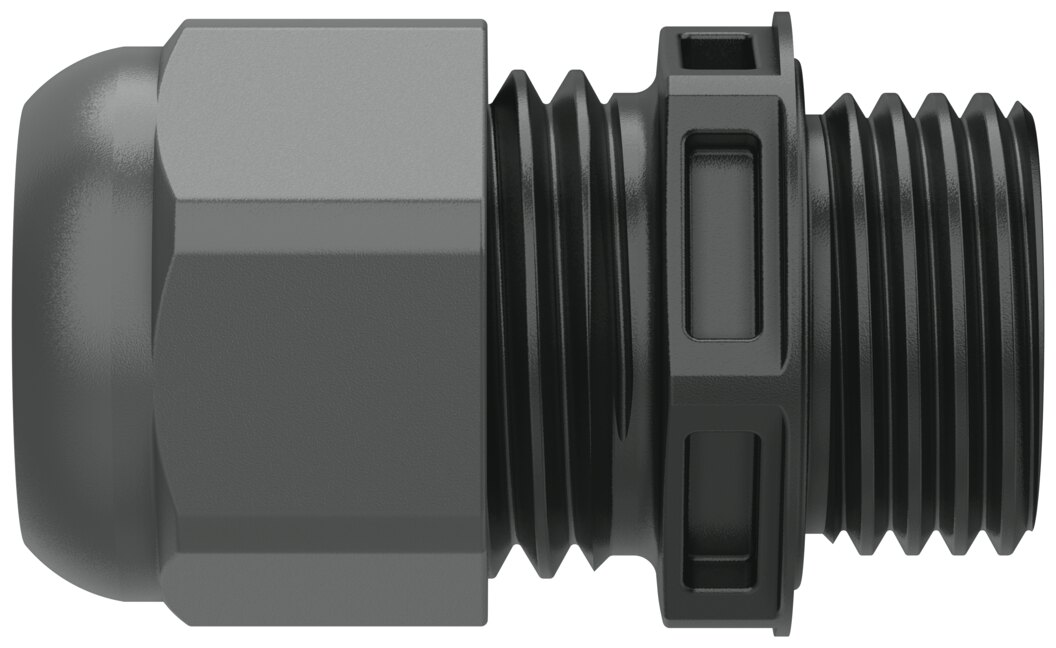

Cable gland M20x1.5 ATEX NETC-M20-PBK-T26-EX4-E - Festo 8151588
The Festo cable gland NETC-M20-PBK-T26-EX4-E leads cables into housings with a seal. Technically decisive: size M20x1.5 and ATEX marking II 2G, II 2D. In addition: type of protection Ex eb IIC Gb and Ex tb IIIC Db.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo cable gland NETC-M20-PBK-T26-EX4-E leads cables into housings with a seal. Technically decisive: size M20x1.5 and ATEX marking II 2G, II 2D.
Benefits
- Sealed: degree of protection IP66, IP68, dust-tight, protected against continuous immersion
- Temperature range: usable from -40 to 75 °C
- Hazardous areas: ATEX marking II 2G, II 2D, type of protection Ex eb IIC Gb and Ex tb IIIC Db
- Cable entry: for cable diameters of 7 to 13 mm
- PWIS: PWIS conformity VDMA24364 zone III
Applications
Suited to wiring automation components. Its II 2G and II 2D marking also allows use in potentially explosive areas. The permitted temperature range is -40 to 75 °C.
Technical data
| Feature | Value |
|---|---|
| Type | NETC-M20-PBK-T26-EX4-E |
| Festo part number | 8151588 |
| Ambient temperature | -40 to 75 °C |
| Degree of protection | IP66, IP68 |
| Note on degree of protection | IP68 at 5 bar for 30 minutes |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex eb IIC Gb |
| Explosion ignition protection type for dust | Ex tb IIIC Db |
| Explosion ambient temperature | -40°C ≤ Ta ≤ +75°C |
| Explosion protection certification outside the EU | EPL Gb (IECEx) |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Size | M20x1.5 |
| Cable diameter | 7 to 13 mm |
| Colour | Black |
| Material cable gland | PA |
| Material seals | EPDM |
| Product weight | 13 g |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS compliant |
| Weight | 0.026 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NETC-M20-PBK-T26-EX4-E |
| EAN | 4052568619961 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PA |
| Seal material | EPDM |
| Housing material | PA |
| Series | NETC |
| Protection rating | IP68 |
| Temperaturbereich | -40-75 °C |
| Temperature (max.) | 75 |
