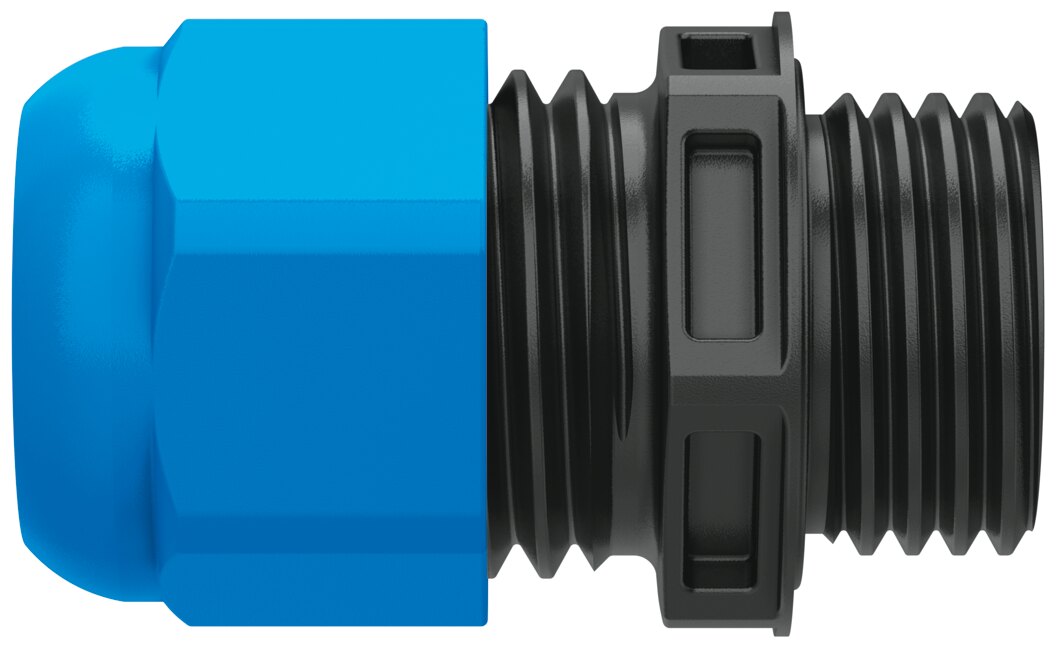

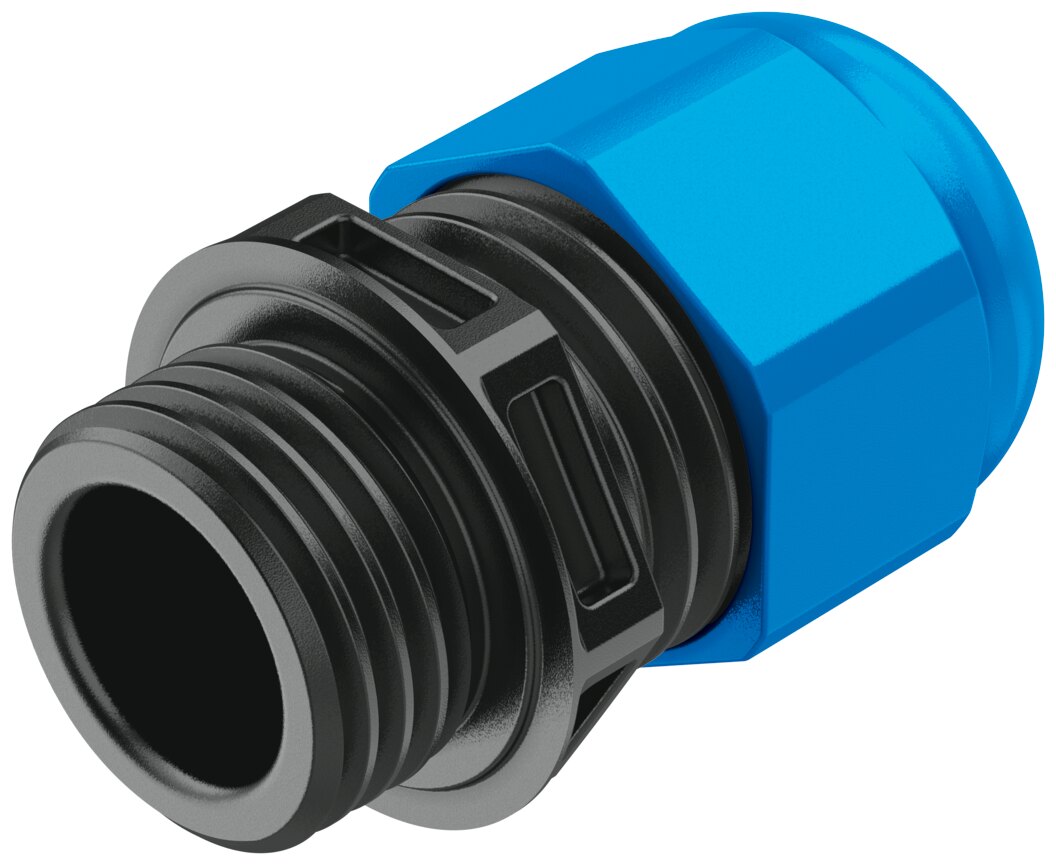

Cable gland M20x1.5 ATEX NETC-M20-PBU-T26-EX4-E - Festo 8151587

Festo ✓ Original product Brand new

The Festo cable gland NETC-M20-PBU-T26-EX4-E leads cables into housings with a seal. Key data: size M20x1.5 and ATEX marking II 2G, II 2D. Further: type of protection Ex eb IIC Gb and Ex tb IIIC Db.

Net
€7.16
excl. VAT
Item FES-8151587
Manufacturer no. NETC-M20-PBU-T26-EX4-E
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo cable gland NETC-M20-PBU-T26-EX4-E leads cables into housings with a seal. Key data: size M20x1.5 and ATEX marking II 2G, II 2D.

Benefits

  • Sealed: degree of protection IP66, IP68, dust-tight, protected against continuous immersion
  • Temperature range: usable from -40 to 75 °C
  • Hazardous areas: ATEX marking II 2G, II 2D, type of protection Ex eb IIC Gb and Ex tb IIIC Db
  • Cable entry: for cable diameters of 7 to 13 mm
  • PWIS: PWIS conformity VDMA24364 zone III

Applications

For electrical installation at valves, valve terminals and sensors. Its II 2G and II 2D marking also allows use in potentially explosive areas. The permitted temperature range is -40 to 75 °C.

Technical data

FeatureValue
TypeNETC-M20-PBU-T26-EX4-E
Festo part number8151587
Ambient temperature-40 to 75 °C
Degree of protectionIP66, IP68
Note on degree of protectionIP68 at 5 bar for 30 minutes
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx eb IIC Gb
Explosion ignition protection type for dustEx tb IIIC Db
Explosion ambient temperature-40°C ≤ Ta ≤ +75°C
Explosion protection certification outside the EUEPL Gb (IECEx)
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive
SizeM20x1.5
Cable diameter7 to 13 mm
ColourBlue/black
Material cable glandPA
Material sealsEPDM
Product weight13 g
LABS (PWIS) conformityVDMA24364 zone III
Note on materialsRoHS compliant
Weight0.026 kg
ManufacturerFesto
Hersteller-NrNETC-M20-PBU-T26-EX4-E
EAN4052568619954
Zolltarifnummer39269097
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPA
Seal materialEPDM
Housing materialPA
SeriesNETC
Protection ratingIP68
Temperaturbereich-40-75 °C
Temperature (max.)75
