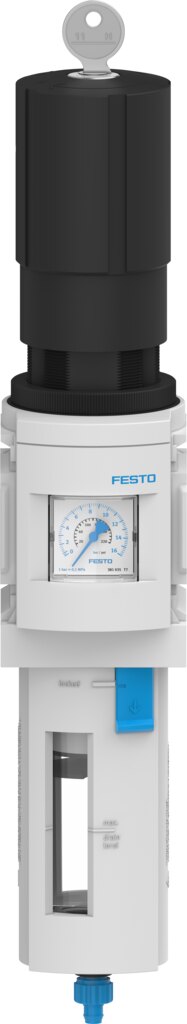

Filter regulator 40 µm 0.5 to 12 bar MS6-LFR-3/8-D7-E-R-M-RG-AS - Festo 609938
The filter regulator MS6-LFR-3/8-D7-E-R-M-RG-AS combines filter and pressure regulator with a 40 µm grade of filtration, the output pressure can be set within 0.5 to 12 bar. Key values: port G3/8 and condensate drain manual, rotating.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The key values of the filter regulator MS6-LFR-3/8-D7-E-R-M-RG-AS: grade of filtration 40 µm, pressure regulation range 0.5 to 12 bar and port G3/8. The filter regulator MS6-LFR-3/8-D7-E-R-M-RG-AS combines filter and pressure regulator with a 40 µm grade of filtration, the output pressure can be set within 0.5 to 12 bar.
Advantages
- Grade of filtration 40 µm.
- Output pressure adjustable from 0.5 to 12 bar.
- Condensate drain manual, rotating.
- Pressure indication: red/green scale.
- Pneumatic connection G3/8.
Application
The filter regulator MS6-LFR-3/8-D7-E-R-M-RG-AS suits machines and systems that need filtered compressed air at a constant output pressure.
Technical data
| Type | MS6-LFR-3/8-D7-E-R-M-RG-AS |
|---|---|
| Series | MS |
| Size | 6 |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pressure regulation range | 0.5 to 12 bar |
| Grade of filtration | 40 µm |
| Material bowl | PC |
| Bowl guard | Plastic bowl guard |
| Condensate drain | Manual, rotating |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Red/green scale |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LFR-3/8-D7-E-R-M-RG-AS |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 3/8 |
| Size BG | 6 |
| Control range max. [bar] | 12 |
| Filter grade [µm] | 40 |
| Druckregelbereich [bar] | 0,5 bis 12 |
| Pneumatic connection | G3/8 |
