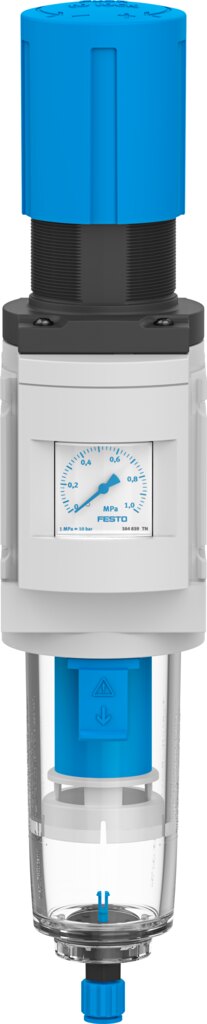

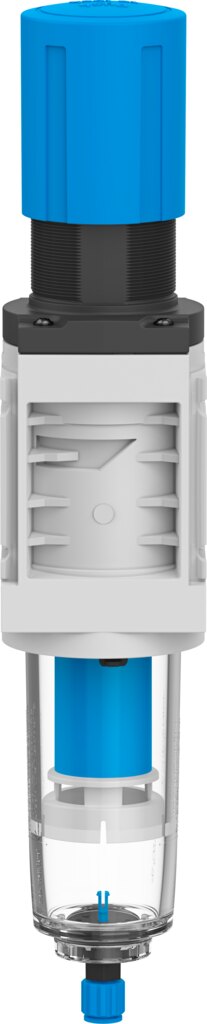

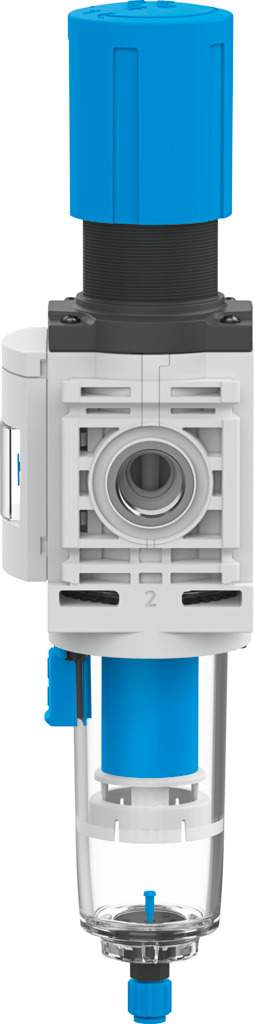

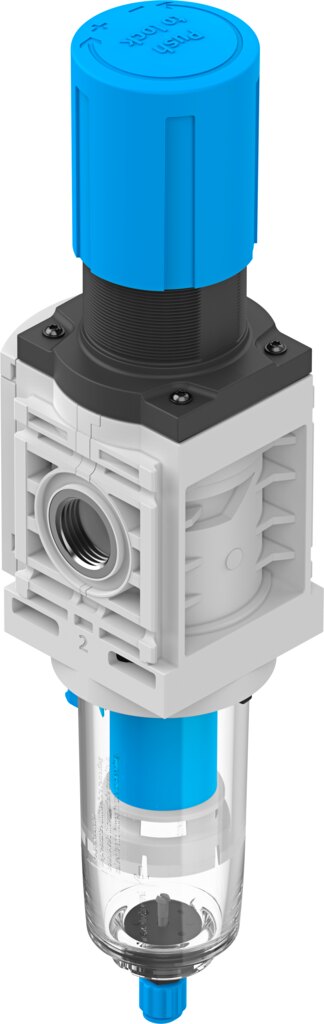

Filter regulator MS6-LFR-1/2-D6-E-P-M-AG-MPA-B - Festo 8098307

Name: Filter regulator MS6-LFR-1/2-D6-E-P-M-AG-MPA-B - Festo 8098307
Brand: Festo
SKU: FES-8098307
Price: 75.72 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€75.72

excl. VAT

Item FES-8098307

Manufacturer no. MS6-LFR-1/2-D6-E-P-M-AG-MPA-B

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Size	6
Series	MS
Actuator lock	Rotary knob with detent
Mounting position	Vertical +/-5°
Grade of filtration	40 µm
Condensate drain	Manual, rotating

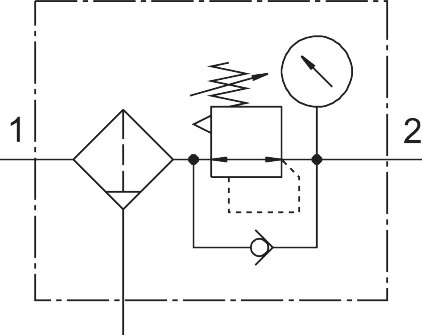

Design	Filter regulator with pressure gauge, Directly actuated piston regulator
Max. condensate volume	27.3 ml
Controller function	Output pressure constant, With secondary exhausting, With return flow function
Degree of condensate separation	75 %
Displayable units	MPa
Pressure gauge (ANALOG) or Pressure display (DIGITAL)	With pressure gauge
Operating pressure	1 ... 10 bar
Pressure regulation range	0.3 ... 7 bar
Max. pressure hysteresis	0.35 bar
Standard nominal flow rate (standardised to DIN 1343)	5300 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot medium	Compatibility with ester oil not guaranteed
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14	Class 7 according to ISO 14644-1
Storage temperature	-5 ... 50 °C
Air purity class at output	Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature	-5 ... 50 °C
Ambient temperature	-5 ... 50 °C
Pore size	40 µm
Product weight	581 g
Type of mounting	With accessories
Pneumatic connection, port 1	G1/2
Pneumatic connection, port 2	G1/2
Note on materials	RoHS compliant
Material seals	NBR
Material rotary knob	POM
Material spring	High-alloy steel, Galvanised steel
Material filter	Packaging unit
Material housing	Reinforced PA
Material bowl	Makrolon®
Material valve stem	POM
Weight	0.7 kg
Manufacturer	Festo
Hersteller-Nr	MS6-LFR-1/2-D6-E-P-M-AG-MPA-B
EAN	4052568569709
Zolltarifnummer	84811005
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
