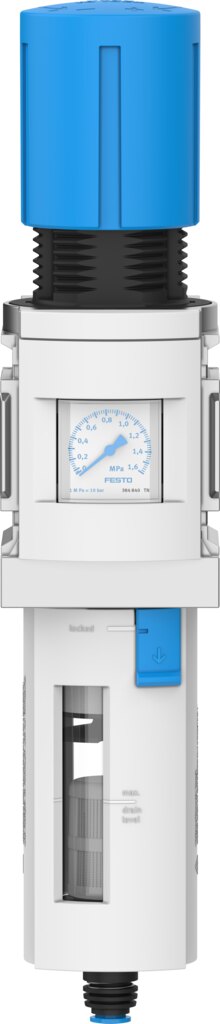

Filter regulator MS6-LFR-1/4-D7-E-R-V-MPA - Festo 8232900
Net
excl. VAT
€110.74
Item
FES-8232900
Manufacturer no.
MS6-LFR-1/4-D7-E-R-V-MPA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 40 µm |
| Condensate drain | Fully automatic |

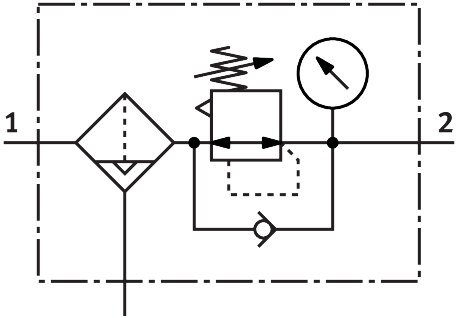

| Design | Filter regulator with pressure gauge |
| Max. condensate volume | 38 ml |
| Controller function | Output pressure constant, With secondary exhausting |
| Bowl guard | Plastic bowl guard |
| Degree of condensate separation | 75 % |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure | 2 ... 12 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 2500 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-], Inert gas |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 ... 60 °C |
| Suitable for use with food | See supplementary material information |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:8:4] |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | -10 ... 60 °C |
| Pore size | 40 µm |
| Product weight | 875 g |
| Type of mounting | Either:, Front panel mounting, Inline installation, With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Material control panel | PA, POM |
| Material seals | NBR |
| Material filter | Packaging unit |
| Material housing | Die-cast aluminium |
| Material membrane | NBR |
| Material bowl | Makrolon® |
| Material separating plate | POM |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LFR-1/4-D7-E-R-V-MPA |
| EAN | 4052568778385 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
