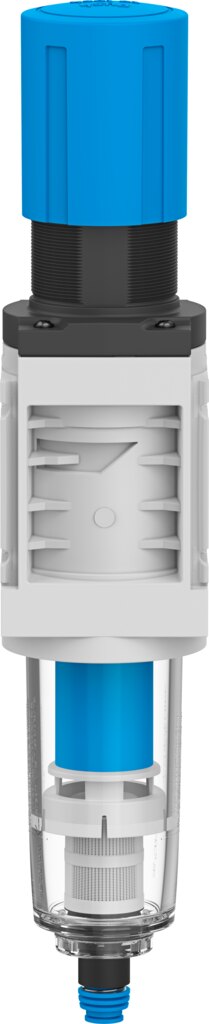

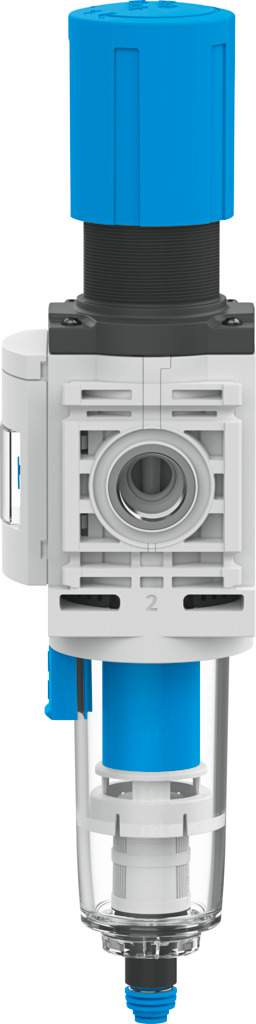

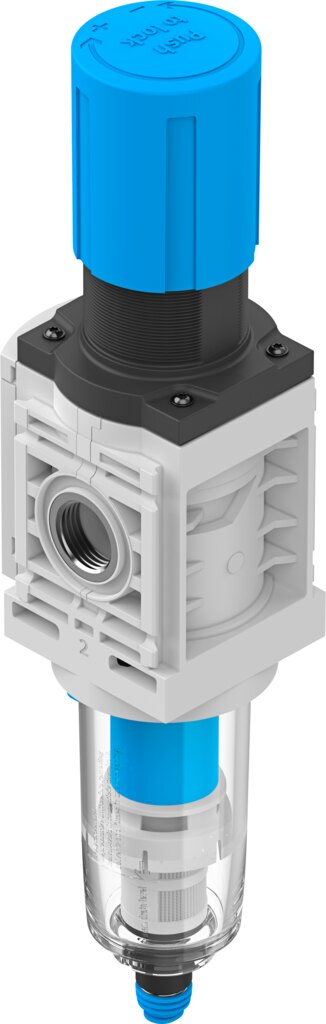

Filter regulator G1/2, 40 µm, 0.3 to 7 bar MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B - Festo 8098305

Festo ✓ Original product Brand new

The filter regulator MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B combines filter and pressure regulator in one housing, regulation range 0.3 to 7 bar. Key data: 40 µm grade of filtration, 5300 l/min standard nominal flow rate and G1/2 ports. Condensate drain: manual, non-detenting.

Net
€108.77
excl. VAT
Item FES-8098305
Manufacturer no. MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

One unit instead of two: the MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B filters to 40 µm and regulates within 0.3 to 7 bar. Standard nominal flow rate is 5300 l/min, operating pressure 2 to 10 bar.

Benefits

  • 5300 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm, condensate separation 75 %
  • Pressure regulation range 0.3 to 7 bar, hysteresis max. 0.35 bar
  • Operating pressure 2 to 10 bar
  • Condensate volume up to 27.3 ml, drain manual, non-detenting
  • Air purity at output: Compressed air to ISO 8573-1:2010 [7:4:4]

Applications

The MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B sits in the supply line upstream of cylinders and valves and protects them from dirt and water. Permissible media temperature 5 to 50 °C. Mounting of the MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B: with accessories.

Technical data

TypeMS6-LFR-1/2-D6-E-P-VC-AG-MPA-B
Festo part number8098305
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainManual, non-detenting

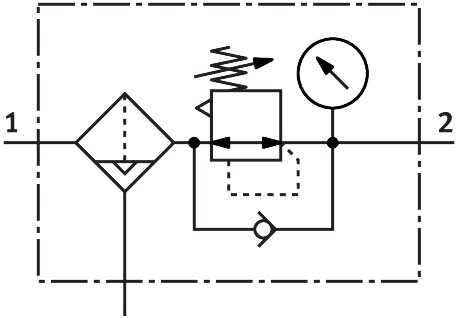

DesignFilter regulator with pressure gauge, directly actuated piston regulator
Max. condensate volume27.3 ml
Controller functionOutput pressure constant, with secondary exhausting, with return flow function
Degree of condensate separation75 %

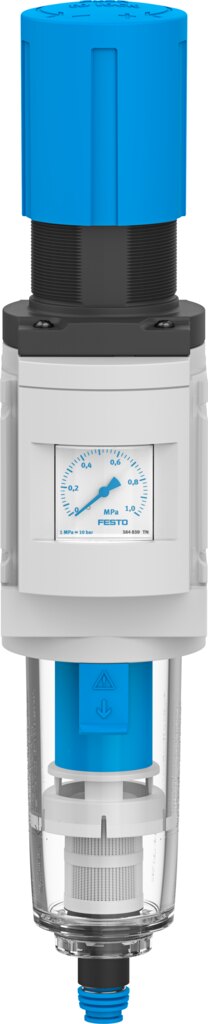

Pressure indicatorWith pressure gauge
Operating pressure2 to 10 bar
Pressure regulation range0.3 to 7 bar
Max. pressure hysteresis0.35 bar
Standard nominal flow rate (standardised to DIN 1343)5300 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumCompatibility with ester oil not guaranteed
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-5 to 50 °C
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
Media temperature5 to 50 °C
Ambient temperature5 to 50 °C
Pore size40 µm
Product weight589 g
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material sealsNBR
Material rotary knobPOM
Material springHigh-alloy steel, galvanised steel
Material filterPE
Material housingReinforced PA
Material bowlPC
Material valve stemPOM
Weight0.75 kg
ManufacturerFesto
Hersteller-NrMS6-LFR-1/2-D6-E-P-VC-AG-MPA-B
EAN4052568569686
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/2
Size BG6
Control range max. [bar]7
Seal materialNBR
MediumCompressed air, neutral gases
Flow rate [l/min]5300
Filter grade [µm]40
Betriebsdruck max [bar]10
Pneumatic connectionG1/2
Temperature (max.)50
