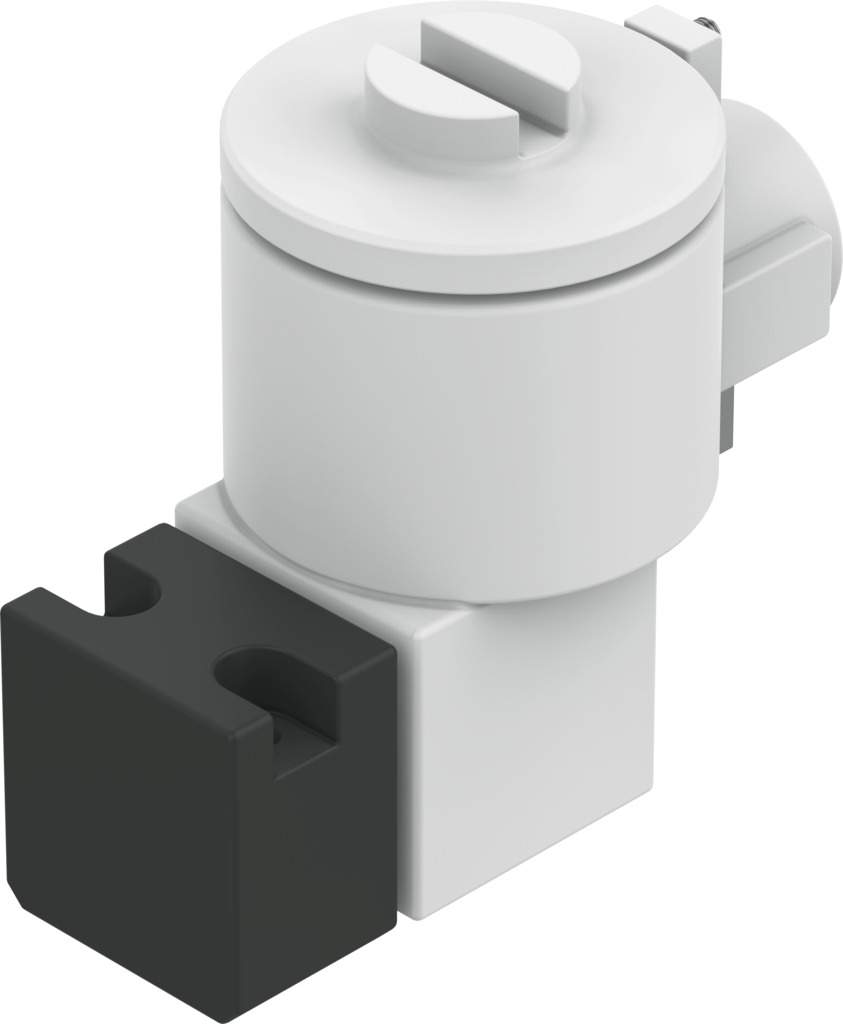

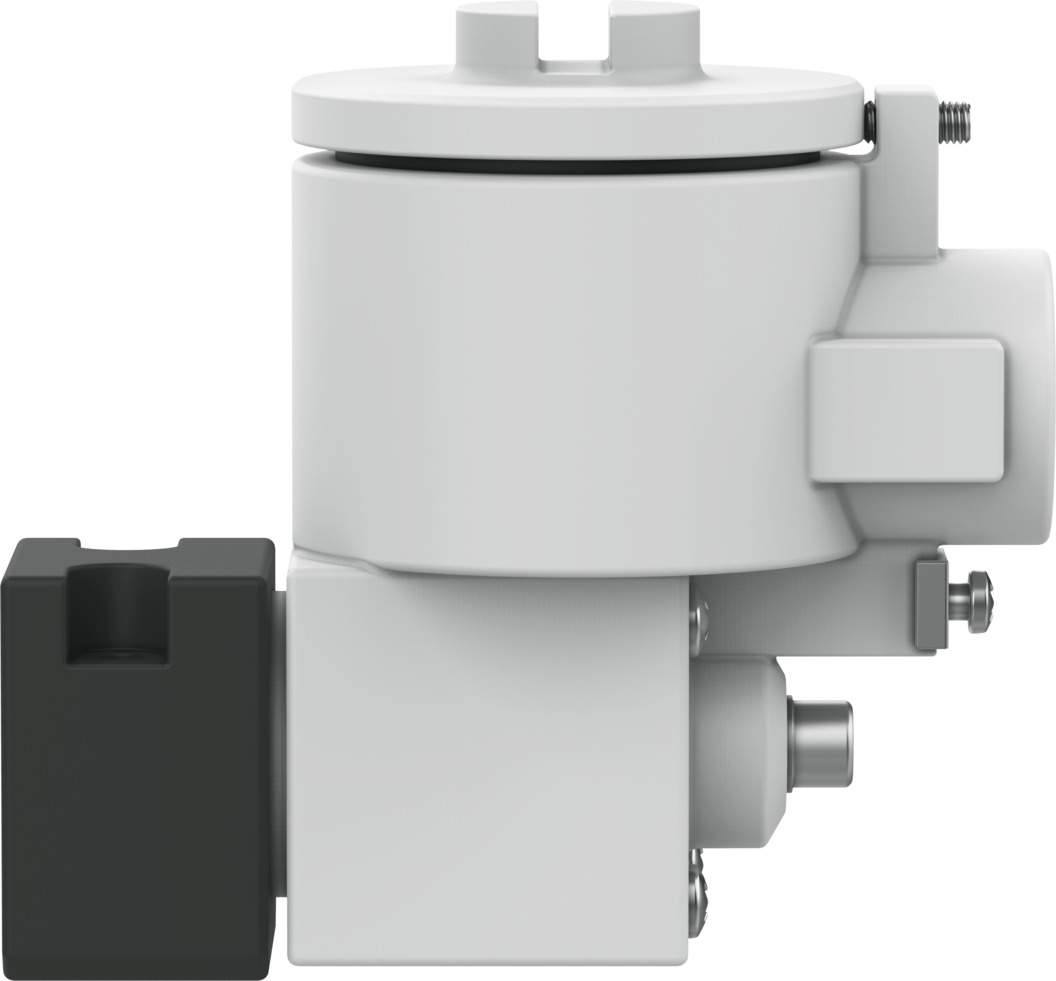

Pilot valve 3/2-way single solenoid, closed MGXDH-3/2-1.2-24DC-KS - Festo 8118342

Festo ✓ Original product Brand new

Festo pilot valve MGXDH-3/2-1.2-24DC-KS as a 3/2-way valve (single solenoid, closed) for electrical actuation. Ratings: -0.9 to 8 bar operating pressure and IP66 protection.

Net
€282.64
excl. VAT
Item FES-8118342
Manufacturer no. MGXDH-3/2-1.2-24DC-KS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The pilot valve MGXDH-3/2-1.2-24DC-KS works as a 3/2-way valve (single solenoid, closed) at -0.9 to 8 bar operating pressure. It also offers IP66 protection.

Key benefits

  • Pressure range: -0.9 to 8 bar, vacuum included
  • Rugged: IP66 protection, corrosion resistance class 2
  • Temperature: -20 to 80 °C ambient
  • Continuous duty: 100 % duty cycle

Applications

Typical tasks for the MGXDH-3/2-1.2-24DC-KS are single-acting cylinders, blow air and piloting larger valves. Mounting: CNOMO. Operating medium for the MGXDH-3/2-1.2-24DC-KS: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeMGXDH-3/2-1.2-24DC-KS
Festo part number8118342
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Operating pressure-0.9 to 8 bar
Designon/off valve
Reset methodmechanical spring
Certificate issuing authority21-GA4BO-0068X, 21-GA4BO-0069X
Explosion ignition protection type for gasEx db IIC T6...T3 Gb
Explosion ignition protection type for dustEx tb IIIC T85°C Db
Explosion ambient temperature-65°C ~+40°C T6, -65°C ~+55°C T5, -65°C ~+60°C T4
Degree of protectionIP66
Manual overridedetenting
Flow directionnon-reversible
Duty cycle100%
Insulation material classH
Coil characteristics24 V DC: 3 W
Permissible frequency fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Ambient temperature-20 to 80 °C
Type of mountingCNOMO
Note on materialsRoHS compliant
Weight (shipping)0.9 kg
Weight0.9 kg
ManufacturerFesto
Hersteller-NrMGXDH-3/2-1.2-24DC-KS
EAN4052568580926
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air
Function3/2 closed monostable
Actuation typeElectrical
Betriebsdruck max [bar]8
Protection ratingIP66
Temperaturbereich-20-80 °C
