This cylinder switch reports the position of the magnetic piston from the T-slot of the cylinder without contact. A key figure is the operating voltage 5 - 240 V (AC / DC). The listed size is sensor type two-wire reed sensor with a red LED, connecting lead 3 mtr., 2x 0,32 mm².
Cylinder switch for a 5 mm T-slot, two-wire reed sensor, red LED, lead 3 m
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€16.84
Item
FL-142694
Manufacturer no.
ZSF 12
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ZSF 12
EAN4050571620776
Customs tariff number85365019
ConditionNew
Artikel
FL-142694
Frequently Bought Together
-
This Item:
€16.84
-
Network cable, M12 plug (D-coded) - M12 connector, D-coded (DIN EN 61076-2-101) (Plug), 10m
€58.52
-

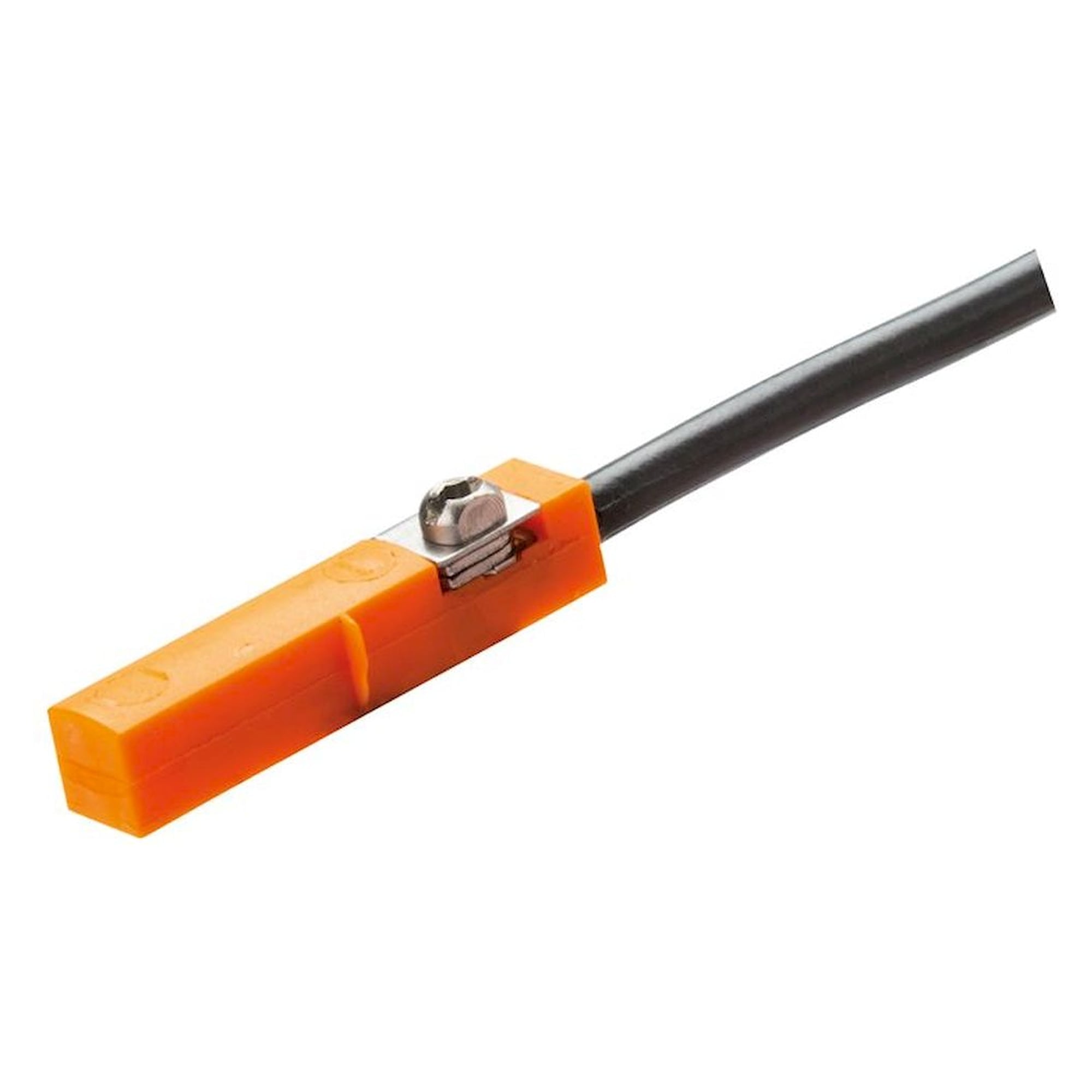

Cylinder switch for a 5 mm T-slot, fully electronic sensor, yellow LED, lead 0.5 m
€98.28
Total price
As a cylinder switch the article reports the position of the magnetic piston from the T-slot of the cylinder without contact. The article is listed with the operating voltage 5 - 240 V (AC / DC).
Benefits
- Operating voltage 5 - 240 V (AC / DC) with the switching function normally open contact.
- Maximum switching current 100 mA and maximum power 10 W / VA.
- Connecting lead 3 mtr., 2x 0,32 mm².
- Temperature range -10 to +70 °C, protection class IP 67.
- Listed with Max. switching current 100 mA.
Technical data
| Sensor type | two-wire reed sensor with a red LED |
|---|---|
| Operating voltage | 5 - 240 V (AC / DC) |
| Switching function | normally open contact |
| Max. switching current [mA] | 100 |
| Maximum power | 10 W / VA |
| Connecting lead | 3 mtr., 2x 0,32 mm² |
| Protection class | IP 67 |
| Temperature range [°C] | -10 to +70 |
| Sensor design | two-wire reed sensor |
| Status indicator | red LED |
| Lead length [m] | 3 |
Applications
The cylinder switch is used wherever it has to report the piston position from the T-slot without contact.
| Hersteller-Nr | ZSF 12 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571620776 |
| Weight | 0.046000 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
