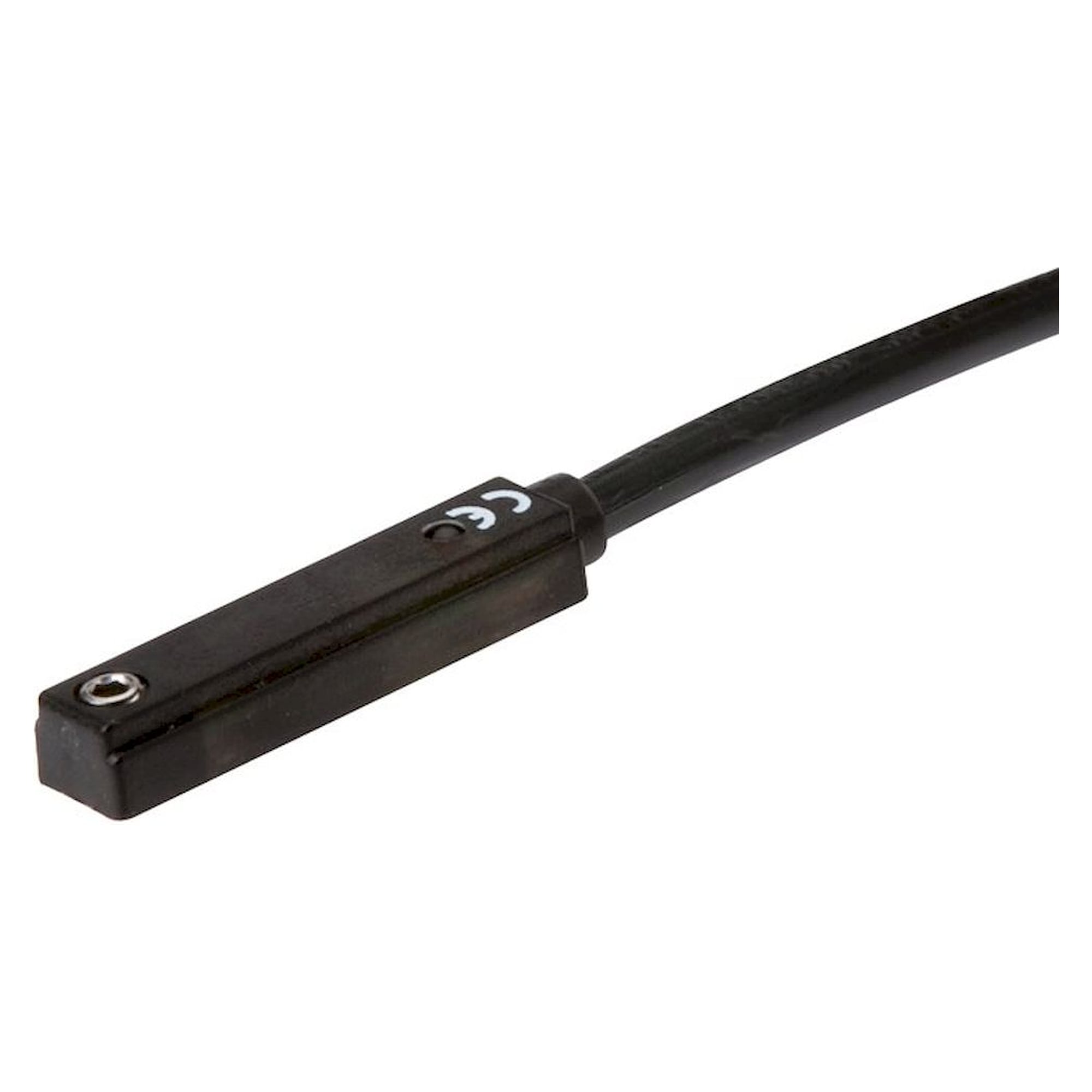

T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)

Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

This cylinder switch reports the position of the magnetic piston from the T-slot of the cylinder without contact. What counts here is the operating voltage 10 - 30 V (DC). The listed size is sensor type fully electronic sensor, reverse polarity protected, with a yellow LED, connecting lead 3 mtr., 3x 0,14 mm².

Cylinder switch for a 5 mm T-slot, fully electronic sensor, yellow LED, lead 3 m

Name: Cylinder switch for a 5 mm T-slot, fully electronic sensor, yellow LED, lead 3 m
Brand: Fluidics equipment
SKU: FL-029967
Price: 68.59 EUR
Availability: InStock

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€68.59 €57.64

Item FL-029967

Manufacturer no. ZSA 33

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.ZSA 33

EAN4050571817152

Customs tariff number85365019

ConditionNew

Artikel

FL-029967

Frequently Bought Together

This Item: Cylinder switch for a 5 mm T-slot, fully electronic sensor, yellow LED, lead 3 m
€68.59 €57.64
Fixing clamps for ZSC (Tie rod Ø (80 - 125) mm)
€13.29 €11.17
Network cable for the Ethernet link, connection a D-coded M 12 connector to DIN EN 61076-2-101
€35.35 €29.71

Details

The cylinder switch reports the position of the magnetic piston from the T-slot of the cylinder without contact. This version is listed with sensor type fully electronic sensor, reverse polarity protected, with a yellow LED and connecting lead 3 mtr., 3x 0,14 mm². The stated figure is the operating voltage 10 - 30 V (DC).

Benefits

Operating voltage 10 - 30 V (DC) with the switching function normally open contacts (PNP).
Maximum switching current 130 mA and maximum power 4 W.
Connecting lead 3 mtr., 3x 0,14 mm².
Temperature range -20 to +70 °C, protection class IP 67.
Listed with Max. switching current 130 mA.

Technical data

Sensor type	fully electronic sensor, reverse polarity protected, with a yellow LED
Operating voltage	10 - 30 V (DC)
Switching function	normally open contacts (PNP)
Max. switching current [mA]	130
Maximum power	4 W
Connecting lead	3 mtr., 3x 0,14 mm²
Protection class	IP 67
Temperature range [°C]	-20 to +70
Sensor design	fully electronic sensor
Status indicator	yellow LED
Lead length [m]	3

Applications

Typical use is anywhere the cylinder switch has to report the piston position from the T-slot without contact.

Information

More Information
Hersteller-Nr	ZSA 33
Manufacturer	Fluidics equipment
EAN	4050571817152
Weight	0.048000
Zolltarifnummer	85365019
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität	Original product
Artikelzustand	New
Position sensing	No
