Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
This suction cup holder connects the suction cup to the vacuum line by a thread. What counts here is a nominal width of 1.3 mm. The listed size is thread M 5 (AG), nominal width DN 1.3 mm, height H2 5.7 mm.

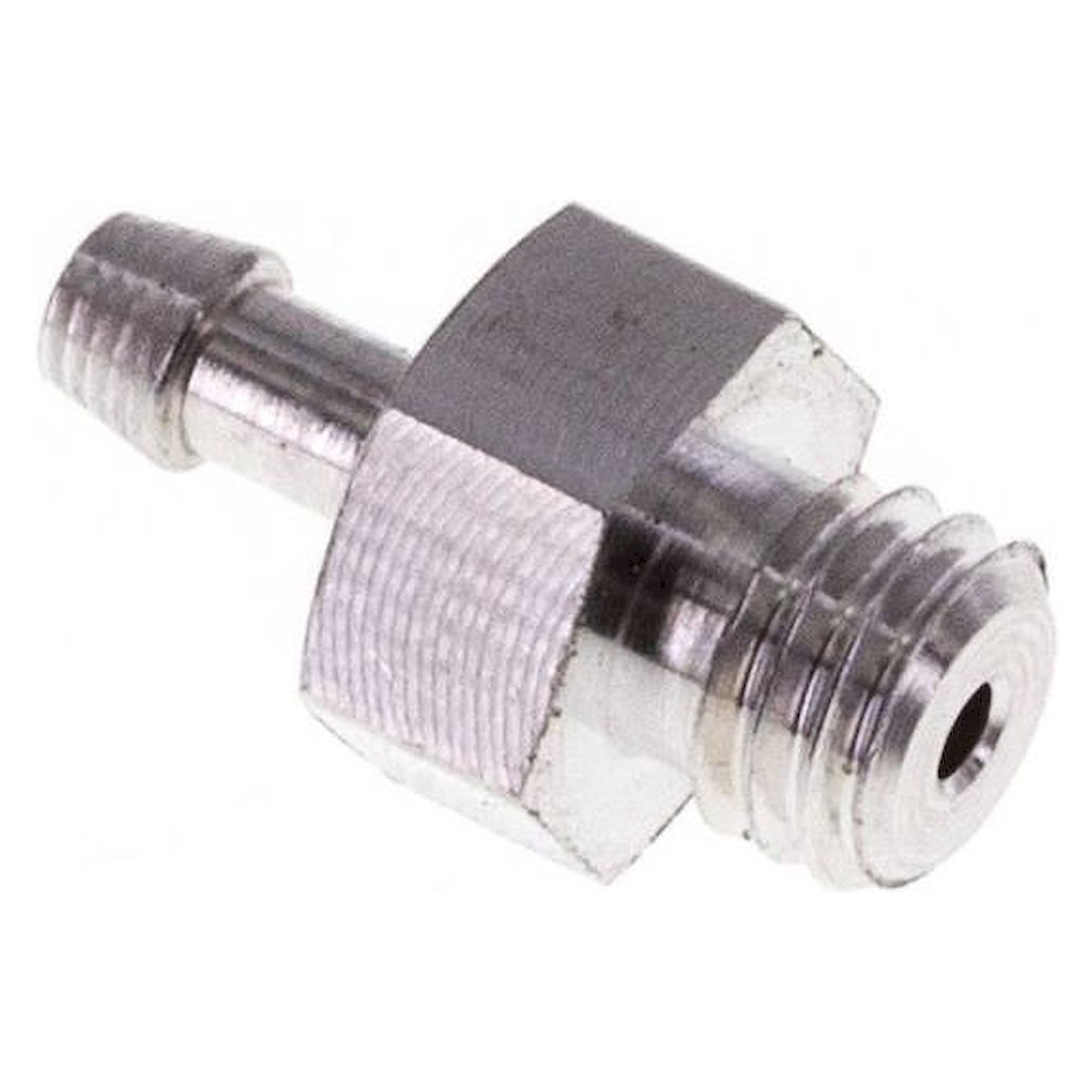

Aluminium suction cup holder, type A, thread M 5 (AG), nominal width DN 1.3 mm
FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€2.00 €1.68
Item FL-228817
Manufacturer no. VSPH A50
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.VSPH A50
EAN4050571727536
Customs tariff number74153900
ConditionNew
Artikel
FL-228817
Frequently Bought Together
- This Item: €2.00 €1.68

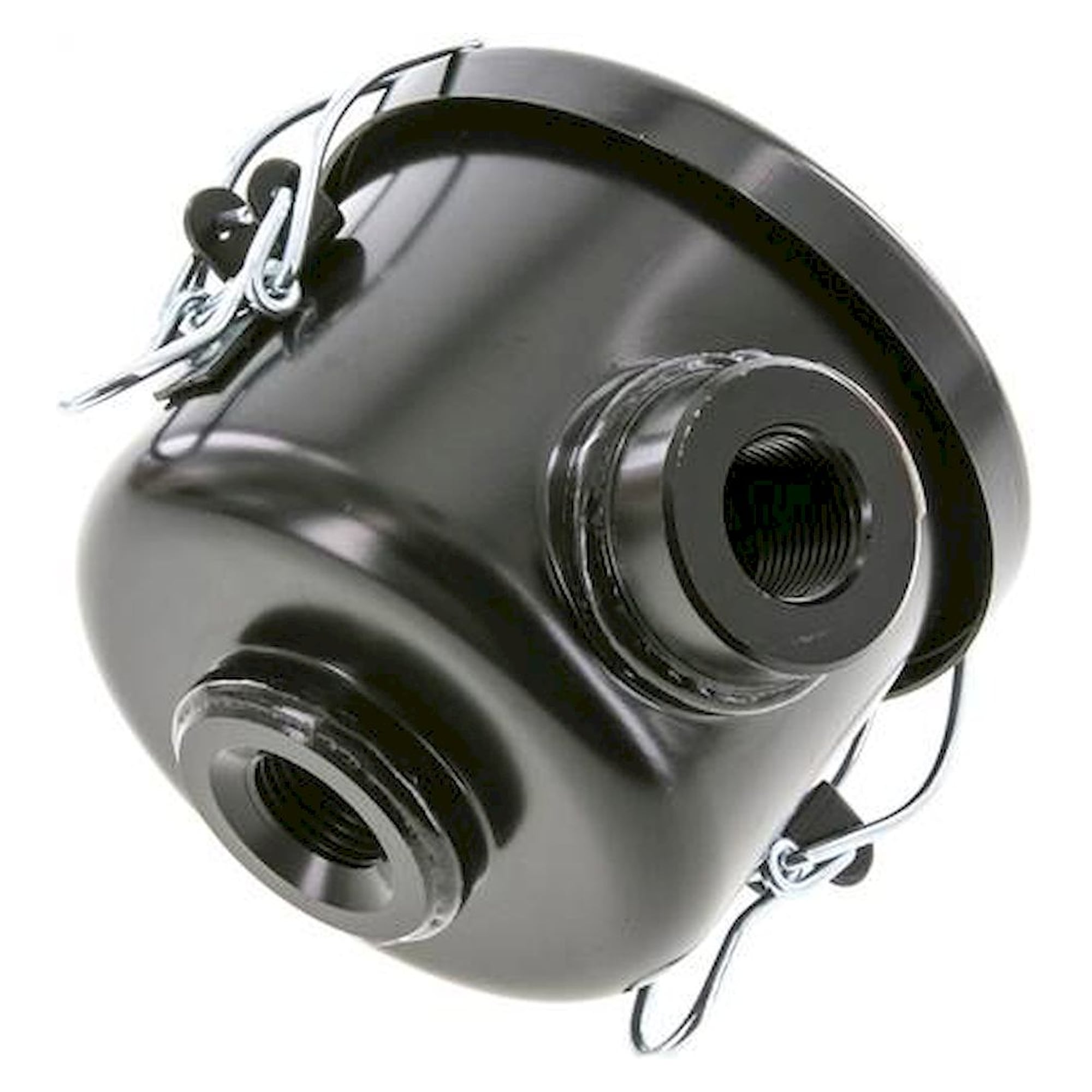

- Vacuum filter for the hose line, for hose outside diameter 10 mm, suction rate 100 l/min €60.58 €50.91
- Flat suction cup, Ø 75 mm, stroke 6 mm, CR (60A), black, standard lip €42.97 €36.11
Once installed, the suction cup holder connects the suction cup to the vacuum line by a thread. It is supplied with thread M 5 (AG), nominal width DN 1.3 mm and height H2 5.7 mm.
Benefits
- Listed with Nominal width DN 1.3 mm.
- Dimension D1 2.3 mm.
- Dimension D2 of 3.1 mm as per the data sheet.
- Listed with Width across flats SW 7 mm.
- Dimension H1 2.3 mm.
Technical data
| Version | aluminium suction cup holder |
|---|---|
| Holder type | A |
| Thread G | M 5 (AG) |
| Nominal width DN [mm] | 1.3 |
| Dimension D1 [mm] | 2.3 |
| Dimension D2 [mm] | 3.1 |
| Width across flats SW [mm] | 7 |
| Dimension H1 [mm] | 2.3 |
| Dimension H2 [mm] | 5.7 |
| Dimension H3 [mm] | 13.2 |
| Form number | 1 |
Applications
Typical use is anywhere the suction cup holder has to connect the suction cup to the vacuum line.
| Hersteller-Nr | VSPH A50 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571727536 |
| Weight | 0.000600 |
| Zolltarifnummer | 74153900 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
