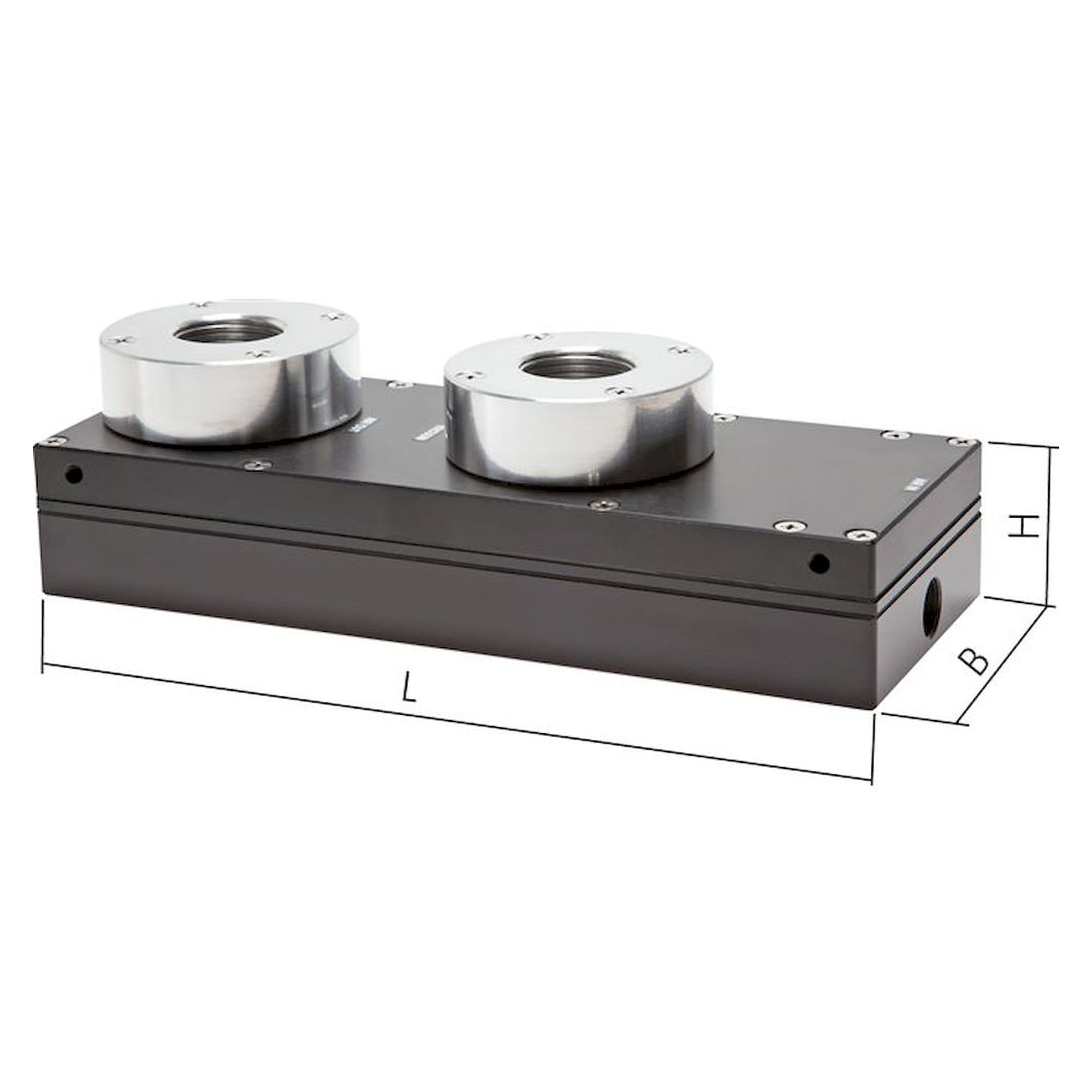

Multi stage ejectors to 90% vacuum, G 1/2", to 165 l/min

Materials:
Body: anodised aluminium, nozzles: brass, seal: neoprene

Temperature range:
-20 to +100 °C

Operating pressure:
1 to 7 bar (optimum 4 bar)

Pressure gauge connection:
G 1/4"

Advantages:
•high vacuum,
•low cost,
•maintenance free,
•high vacuum, ideal for vacuum packaging or large forces with small suction caps

Suction performance [l/min]	165
Thread Supply air	G 1/4"
Thread vacuum	G 1/2"
Thread exhaust air	G 1/2"
Air consumption* [l/min]	63
Silencer**	FFSD 12
Vacuum meter	MW -163
L [mm]	182
B [mm]	67
H [mm]	33,5
Evacuation time (1 ltr. to 10%) [s/l]	0,0460
Evacuation time (1 ltr. to 20%) [s/l]	0,1600
Evacuation time (1 ltr. to 30%) [s/l]	0,360
Evacuation time (1 ltr. to 40%) [s/l]	0,700
Evacuation time (1 ltr. to 50%) [s/l]	1,200
Evacuation time (1 ltr. to 60%) [s/l]	2,000
Evacuation time (1 ltr. to 70%) [s/l]	2,80
Evacuation time (1 ltr. to 90%) [s/l]	18,0
Flow at 0% vacuum [l/min]	165
Flow at 10% vacuum [l/min]	88
Flow at 20% vacuum [l/min]	51
Flow at 30% vacuum [l/min]	24
Flow at 40% vacuum [l/min]	18
Flow at 60% vacuum [l/min]	9
Flow at 80% vacuum [l/min]	3,0
