This vacuum ejector produces the handling vacuum from compressed air on the venturi principle. A key figure is a suction rate of 300 l/min. The listed size is vacuum port G 3/4", suction rate 300 l/min, vacuum up to 90 %.

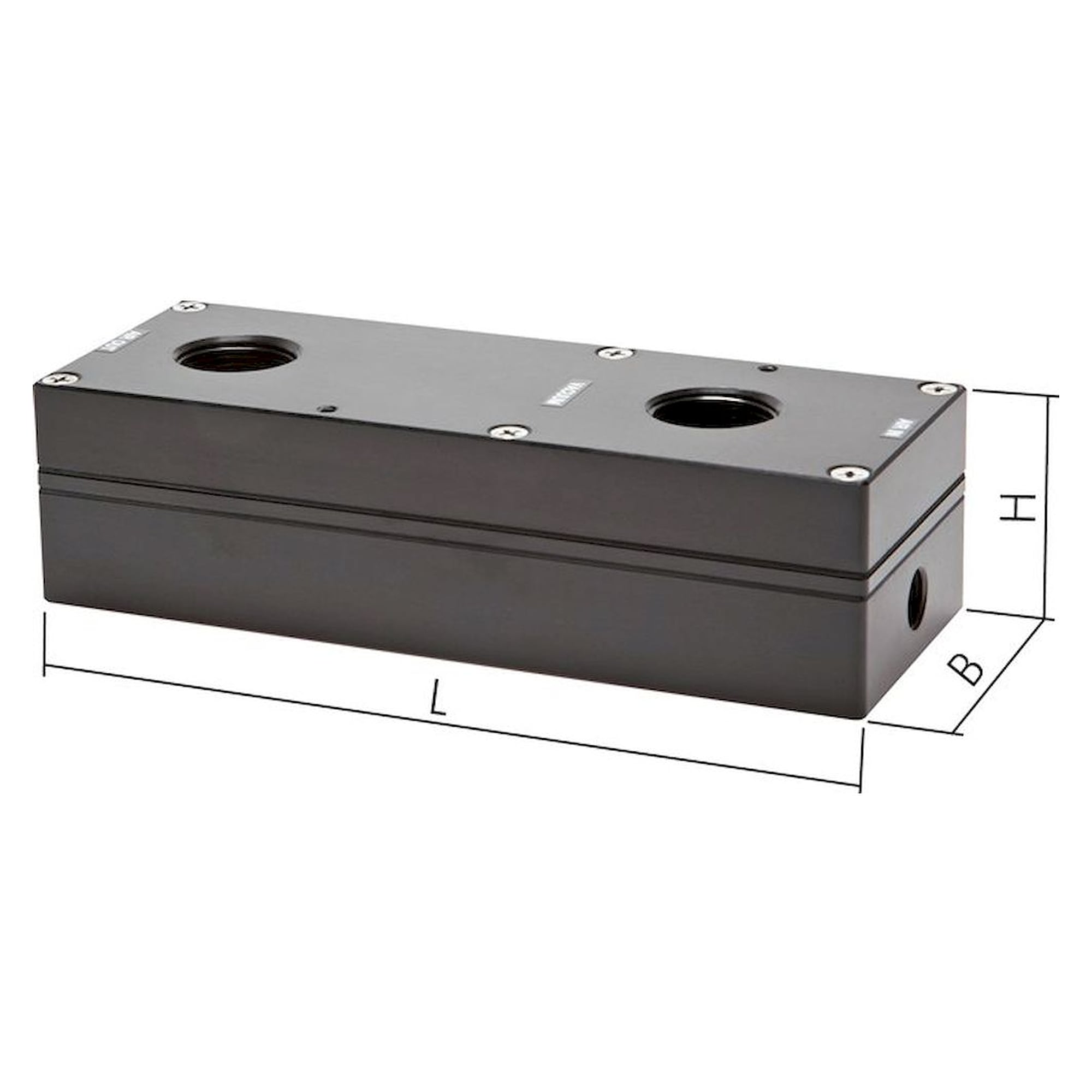

Multi-stage vacuum ejector, vacuum up to 90 %, vacuum port G 3/4", suction rate 300 l/min
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€534.39 €449.07
Item
FL-015969
Manufacturer no.
VILP 4
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.VILP 4
EAN4050571719647
Customs tariff number84141089
ConditionNew
Artikel
FL-015969
Frequently Bought Together
- This Item: €534.39 €449.07
- Flat suction cup, Ø 22 mm, stroke 0.5 mm, CR (50A), black, with a support rib €4.02 €3.38
- Spring plunger G 1/8" (AG)xG 1/8" (Female thread), stroke 8mm, Standard €53.12 €44.64
As a vacuum ejector the article produces the handling vacuum from compressed air on the venturi principle. The article is listed with a suction rate of 300 l/min. This version is listed with vacuum port G 3/4", suction rate 300 l/min and vacuum up to 90 %.
Benefits
- Listed with Suction rate 300 l/min.
- Air consumption 95 l/min.
- Length L of 182 mm as per the data sheet.
- Listed with Width B 67 mm.
- Height H 47 mm.
Technical data
| Suction rate [l/min] | 300 |
|---|---|
| Compressed air thread | G 1/4" |
| Vacuum thread | G 3/4" |
| Exhaust thread | G 3/4" |
| Air consumption [l/min] | 95 |
| Length L [mm] | 182 |
| Width B [mm] | 67 |
| Height H [mm] | 47 |
| Evacuation time down to 10 percent vacuum [s/l] | 0.02000 |
| Evacuation time down to 20 percent vacuum [s/l] | 0.04700 |
| Evacuation time down to 30 percent vacuum [s/l] | 0.100 |
| Evacuation time down to 40 percent vacuum [s/l] | 0.2450 |
| Evacuation time down to 50 percent vacuum [s/l] | 0.4500 |
| Evacuation time down to 60 percent vacuum [s/l] | 0.680 |
| Evacuation time down to 70 percent vacuum [s/l] | 1.500 |
| Evacuation time down to 80 percent vacuum [s/l] | 1.90 |
| Evacuation time down to 90 percent vacuum [s/l] | 7.000 |
| Flow rate at 0 percent vacuum [l/min] | 300 |
| Flow rate at 10 percent vacuum [l/min] | 210 |
| Flow rate at 20 percent vacuum [l/min] | 141 |
| Flow rate at 30 percent vacuum [l/min] | 70 |
| Flow rate at 40 percent vacuum [l/min] | 50 |
| Flow rate at 50 percent vacuum [l/min] | 39 |
| Flow rate at 60 percent vacuum [l/min] | 28 |
| Flow rate at 70 percent vacuum [l/min] | 19 |
| Flow rate at 80 percent vacuum [l/min] | 12 |
| Nozzle material | brass |
| Seals | Neopren |
| Temperature range [°C] | -20 to +80 |
| Vacuum level [%] | 90 |
Applications
The vacuum ejector is used wherever it has to produce a vacuum from compressed air.
| Hersteller-Nr | VILP 4 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571719647 |
| Weight | 1.100000 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
