This suction cup holder connects the suction cup to the vacuum line by a thread. A key figure is a nominal width of 2.8 mm. The dimensions come to thread M 5 (AG), nominal width DN 2.8 mm, height H2 8.0 mm.

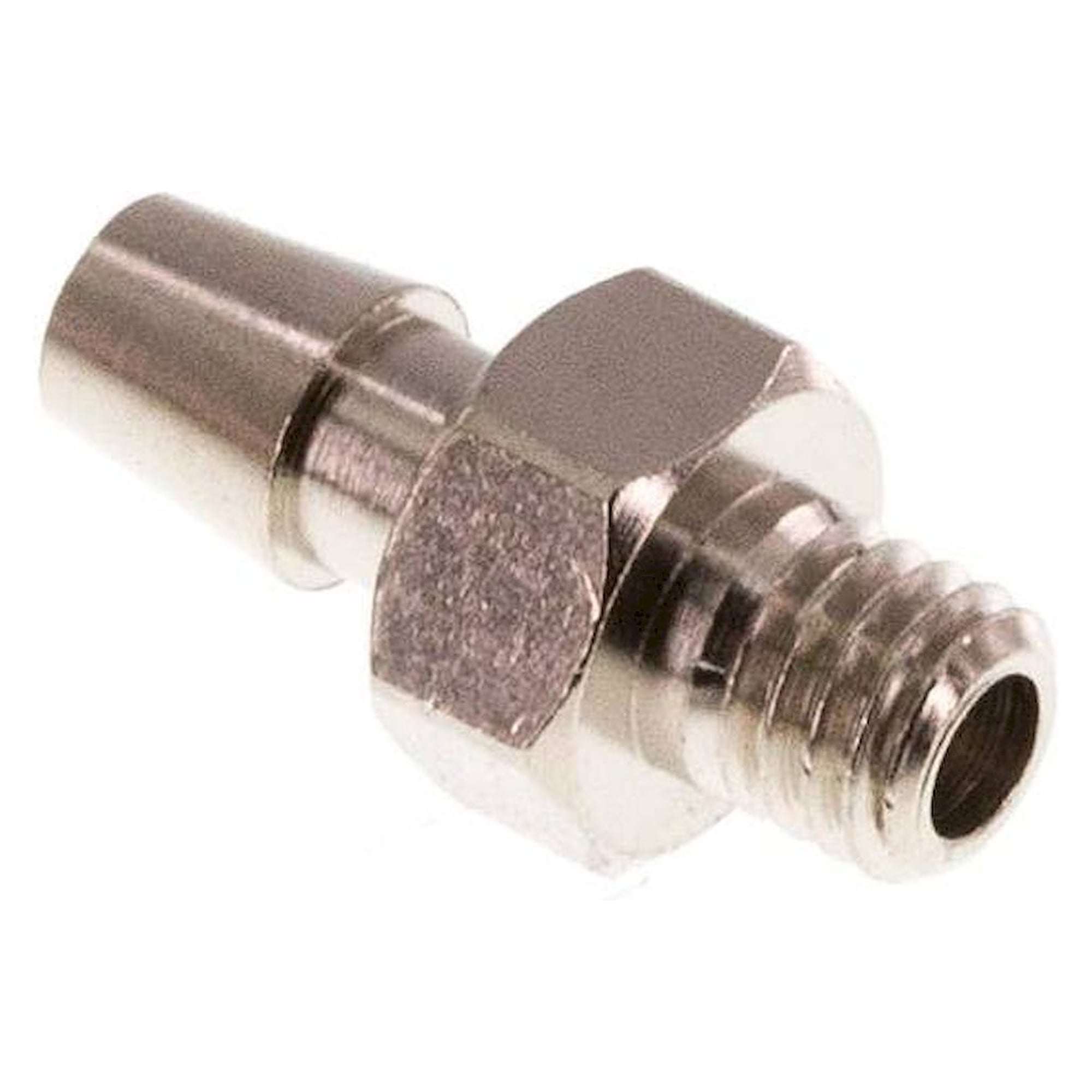

Aluminium suction cup holder, type B, thread M 5 (AG), nominal width DN 2.8 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€2.07
Item
FL-228816
Manufacturer no.
VSPH B50
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.VSPH B50
EAN4050571727543
Customs tariff number74153900
ConditionNew
Artikel
FL-228816
Frequently Bought Together
-
This Item:
€2.07
-
2/2-way vacuum valve, port G 3/8", nominal width DN 10 mm, control voltage 24 V DC
€179.40
-
Spring plunger G 1/8" (AG)xG 1/8" (Female thread), stroke 8mm, Standard
€44.64
Total price
Once installed, the suction cup holder connects the suction cup to the vacuum line by a thread. This version comes with thread M 5 (AG), nominal width DN 2.8 mm and height H2 8.0 mm. It is complemented by a height H2 of 8.0 mm.
Benefits
- Nominal width DN 2.8 mm.
- Dimension D1 of 4.2 mm as per the data sheet.
- Listed with Dimension D2 5.2 mm.
- Width across flats SW 8 mm.
- Dimension H1 of 6.0 mm as per the data sheet.
Technical data
| Version | aluminium suction cup holder |
|---|---|
| Holder type | B |
| Thread G | M 5 (AG) |
| Nominal width DN [mm] | 2.8 |
| Dimension D1 [mm] | 4.2 |
| Dimension D2 [mm] | 5.2 |
| Width across flats SW [mm] | 8 |
| Dimension H1 [mm] | 6.0 |
| Dimension H2 [mm] | 8.0 |
| Dimension H3 [mm] | 17.0 |
| Form number | 1 |
Applications
The suction cup holder is used wherever it has to connect the suction cup to the vacuum line.
| Hersteller-Nr | VSPH B50 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571727543 |
| Weight | 0.001000 |
| Zolltarifnummer | 74153900 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
