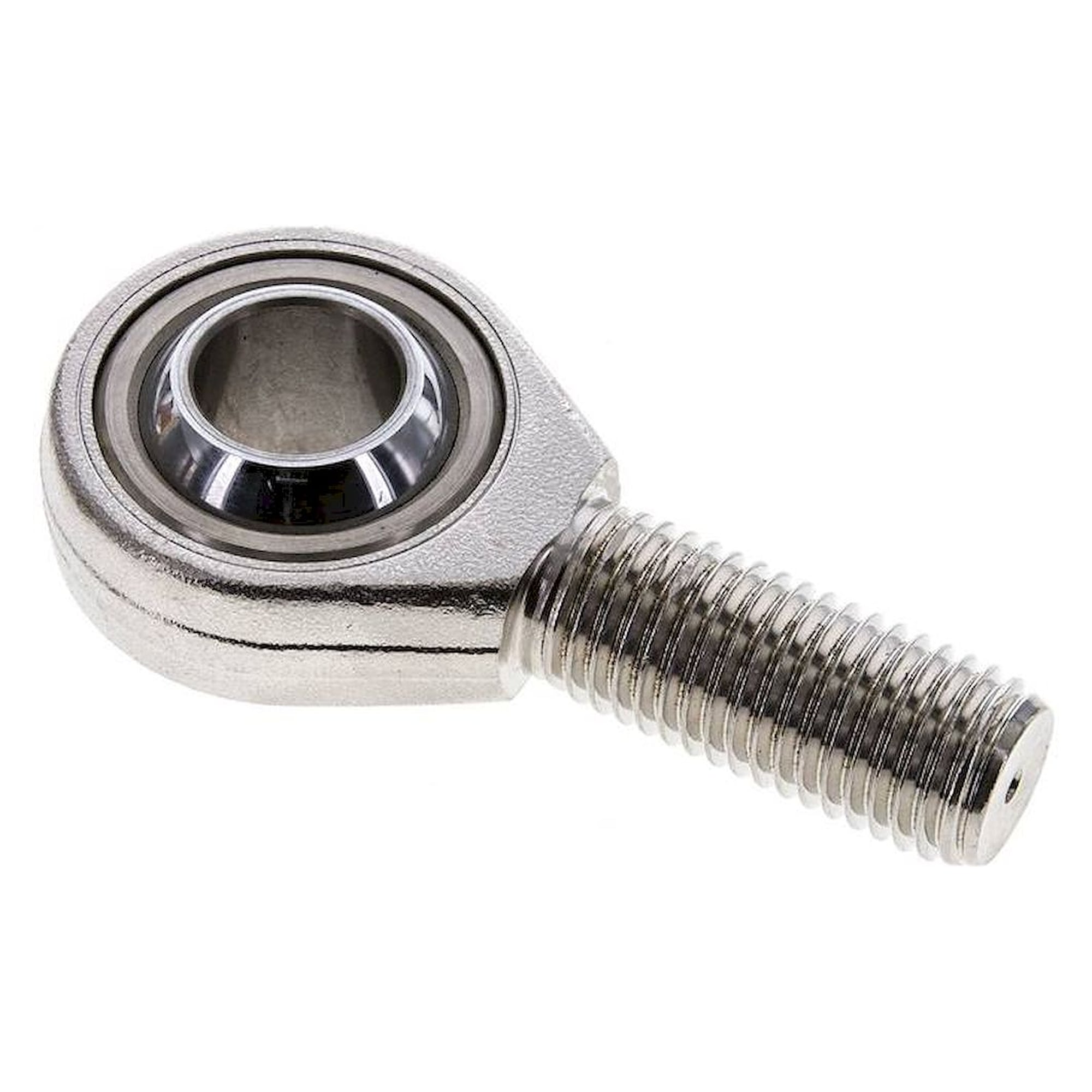

Swivel head, male thread M 8, Stainless steel

Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

This rod end links the piston rod to the load so that it can pivot. A key figure is the piston rod thread M 8. Size 8 x 54 x 42 mm, material stainless steel.

Rod end, for piston rod thread M 8, stainless steel, dimension D 8 mm, dimension L 54 mm

Name: Rod end, for piston rod thread M 8, stainless steel, dimension D 8 mm, dimension L 54 mm
Brand: Fluidics equipment
SKU: FL-045697
Price: 29.90 EUR
Availability: InStock

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€29.90

Item FL-045697

Manufacturer no. SGSA M8 ES

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.SGSA M8 ES

EAN4050571625481

Customs tariff number73269098

ConditionNew

Artikel

FL-045697

Frequently Bought Together

This Item: Rod end, for piston rod thread M 8, stainless steel, dimension D 8 mm, dimension L 54 mm
€29.90
Rod end, for piston rod thread M 27x2, zinc-plated steel, dimension D 30 mm
€92.42
Clevis head with pin, for piston rod thread M 8, stainless steel 1.4571
€39.28

Total price

Details

As a rod end the article links the piston rod to the load so that it can pivot. The data state the piston rod thread M 8. This version is listed with 8 mm for dimension D, 54 mm for dimension L and 42 mm for dimension H. Material stainless steel is listed for this version.

Benefits

Fits the piston rod thread M 8.
Material stainless steel for piston rod thread M 8.
Dimension D comes to 8 mm.
Dimension L comes to 54 mm.
Dimension C comes to 9.00 mm.

Technical data

Material	stainless steel
For piston rod thread A	M 8
Dimension B [mm]	12
Dimension C [mm]	9.00
Dimension D [mm]	8
Dimension D2 [mm]	24
Dimension H [mm]	42
Dimension L [mm]	54
Dimension GL [mm]	25

Applications

On a cylinder with piston rod thread M 8 the rod end makes the link to the load.

Information

More Information
Hersteller-Nr	SGSA M8 ES
Manufacturer	Fluidics equipment
EAN	4050571625481
Weight	0.038000
Zolltarifnummer	73269098
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität	Original product
Artikelzustand	New
