The clevis head links the piston rod to the load through clevis and pin. The underlying rating is the piston rod thread M 20. The dimensions come to 134 x 50 x 50 mm.

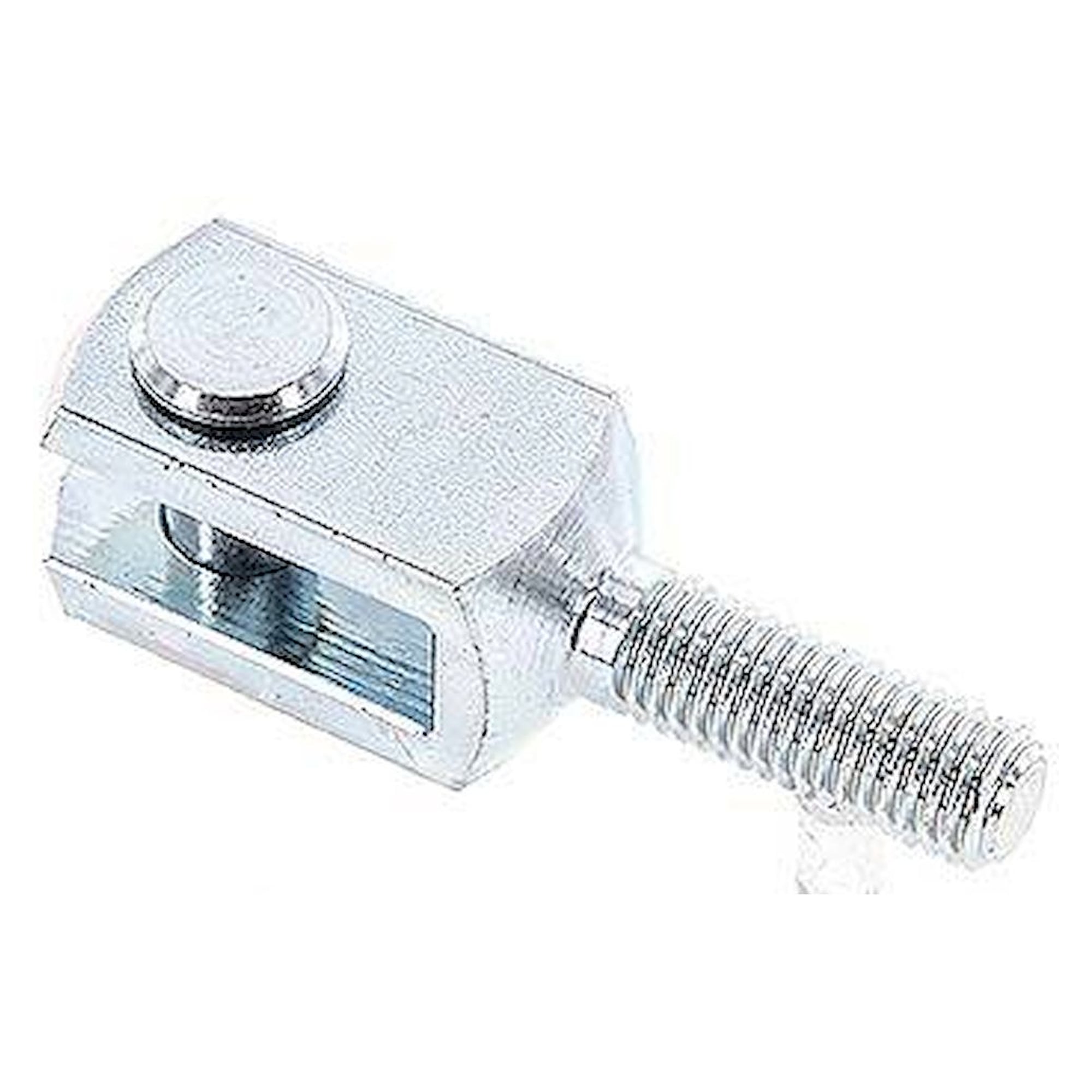

Clevis head with pin and male thread, for piston rod thread M 20
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€67.51
Item
FL-571902
Manufacturer no.
GAKA M20
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.GAKA M20
EAN4050571898830
Customs tariff number73181595
ConditionNew
Artikel
FL-571902
Frequently Bought Together
-
This Item:
€67.51
-
Yoke with bolts M 6, 1.4305
€17.54
-
Rod end, for piston rod thread M 10, zinc-plated steel, dimension D 10 mm, dimension L 20 mm
€18.76
Total price
In use, the clevis head links the piston rod to the load through clevis and pin. It is supplied with 134 mm for dimension F, 50 mm for dimension GL and 50 mm for dimension D.
Benefits
- Fits the piston rod thread M 20.
- Dimension GL comes to 50 mm.
- Dimension F comes to 134 mm.
- Dimension D comes to 50 mm.
- Dimension B of 40 mm as per the data sheet.
Technical data
| For piston rod thread A | M 20 |
|---|---|
| Dimension B [mm] | 40 |
| Dimension C [mm] | 109 |
| Dimension D [mm] | 50 |
| Dimension E [mm] | 20 |
| Dimension F [mm] | 134 |
| Dimension G [mm] | 40 |
| Dimension H [mm] | 20 |
| Dimension GL [mm] | 50 |
Applications
In feed and clamping equipment the clevis head sits on thread M 20.
| Hersteller-Nr | GAKA M20 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571898830 |
| Weight | 0.700000 |
| Zolltarifnummer | 73181595 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
