Air Driven Hydraulic Foot Pump, 4/3 Valve, 1 L - Enerpac XA11V

The XA11V foot pump drives Enerpac hydraulic tools hands-free on compressed air, keeping both hands free for the task. The 4/3 valve controls double-acting cylinders, and the 1-litre bladder reservoir allows use in any position at up to 700 bar.

Benefits

• Hands-free operation via two foot pedals, less operator fatigue on long jobs
• Fine metering control for precise stroke and force dosing
• Closed hydraulic system with bladder reservoir prevents contamination and allows any position
• Pedal lock holds the retract position
• Externally adjustable pressure relief valve
• Grounding screw for ATEX-compliant explosion protection

Technical data

• Type: air-driven hydraulic foot pump
• Valve: 4/3 (double-acting)
• Usable oil volume: 1 L
• Drive: compressed air
• Operating pressure: 700 bar

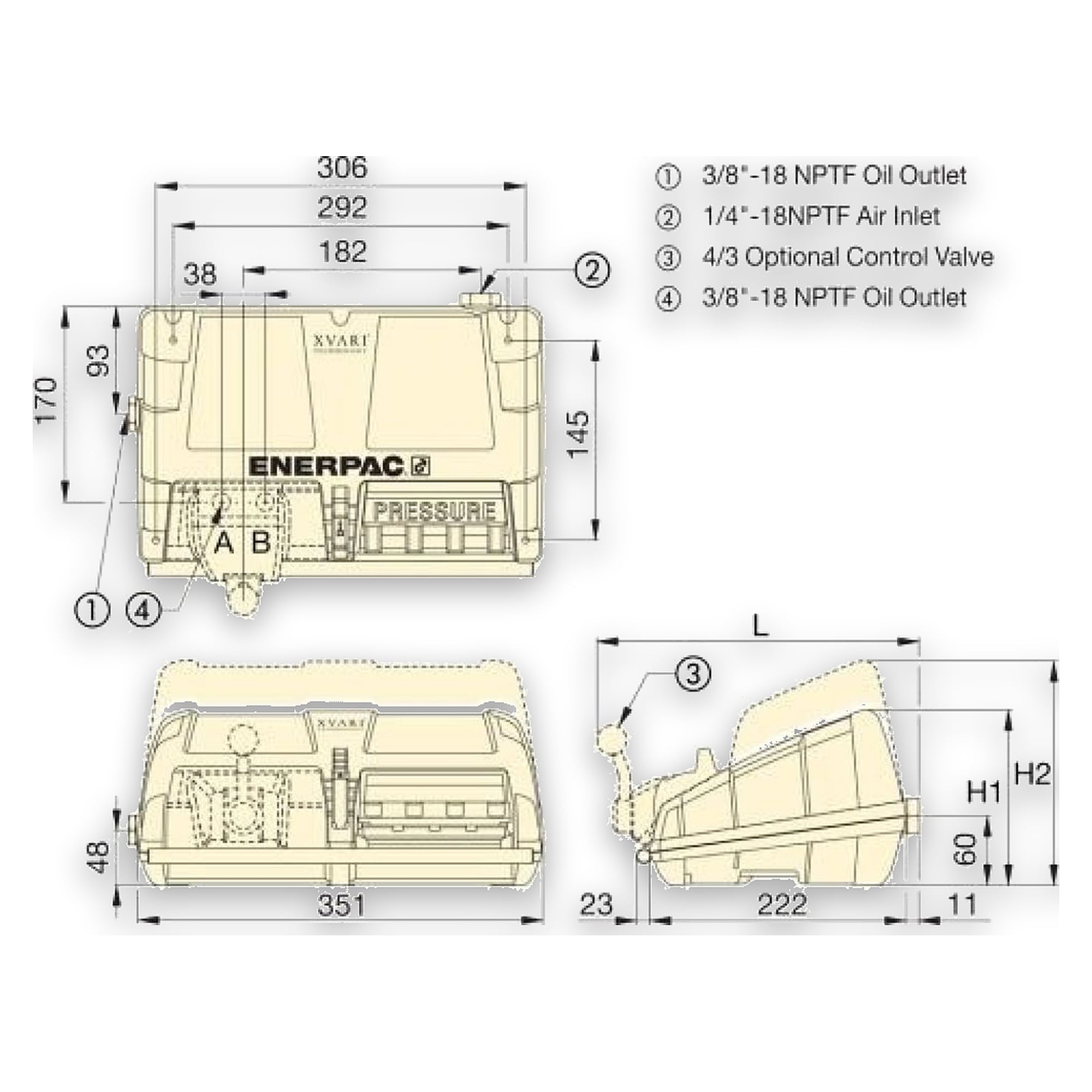

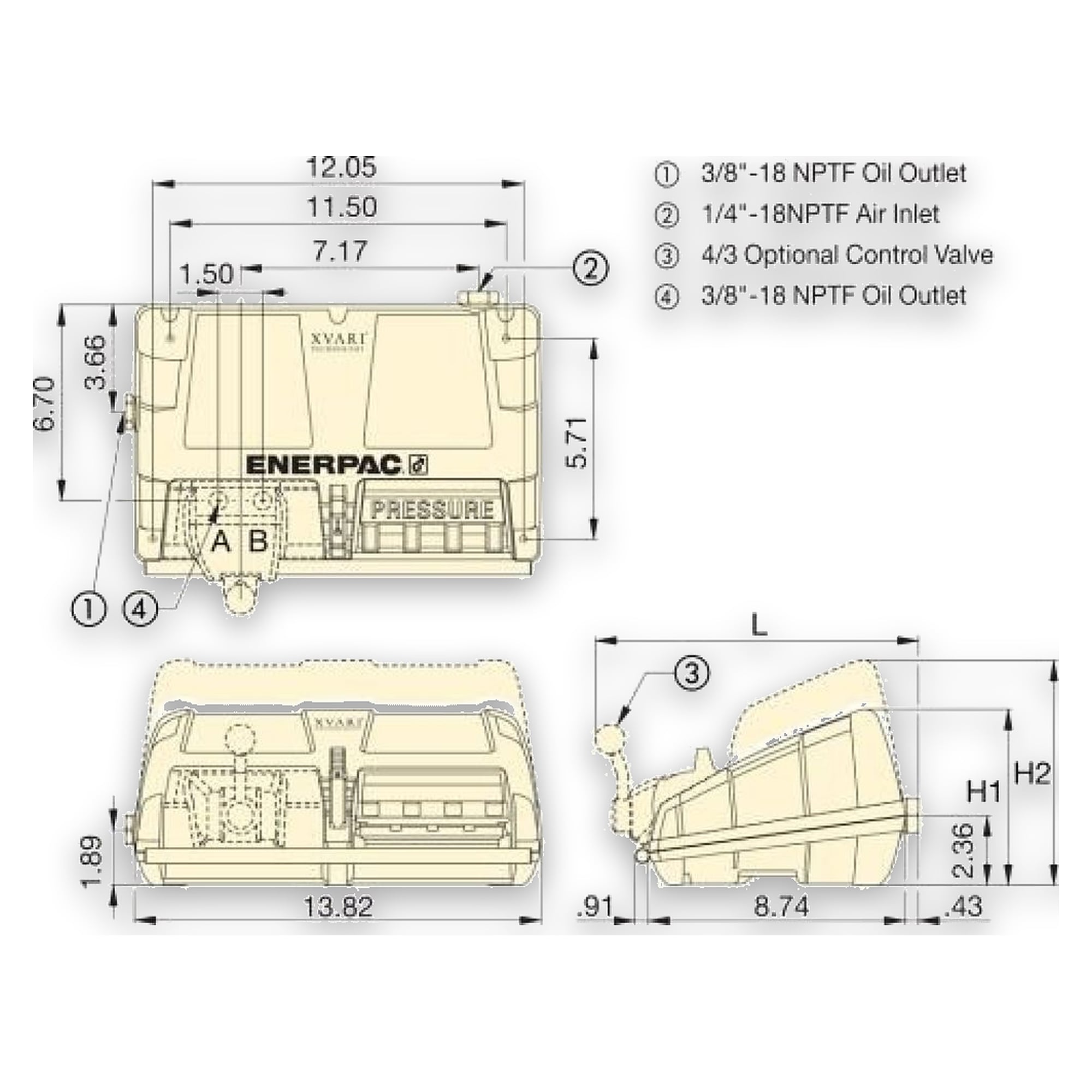

• Height H1: 152 mm
• Length: 279 mm
• Weight: 10.1 kg
• Series: XA

Applications

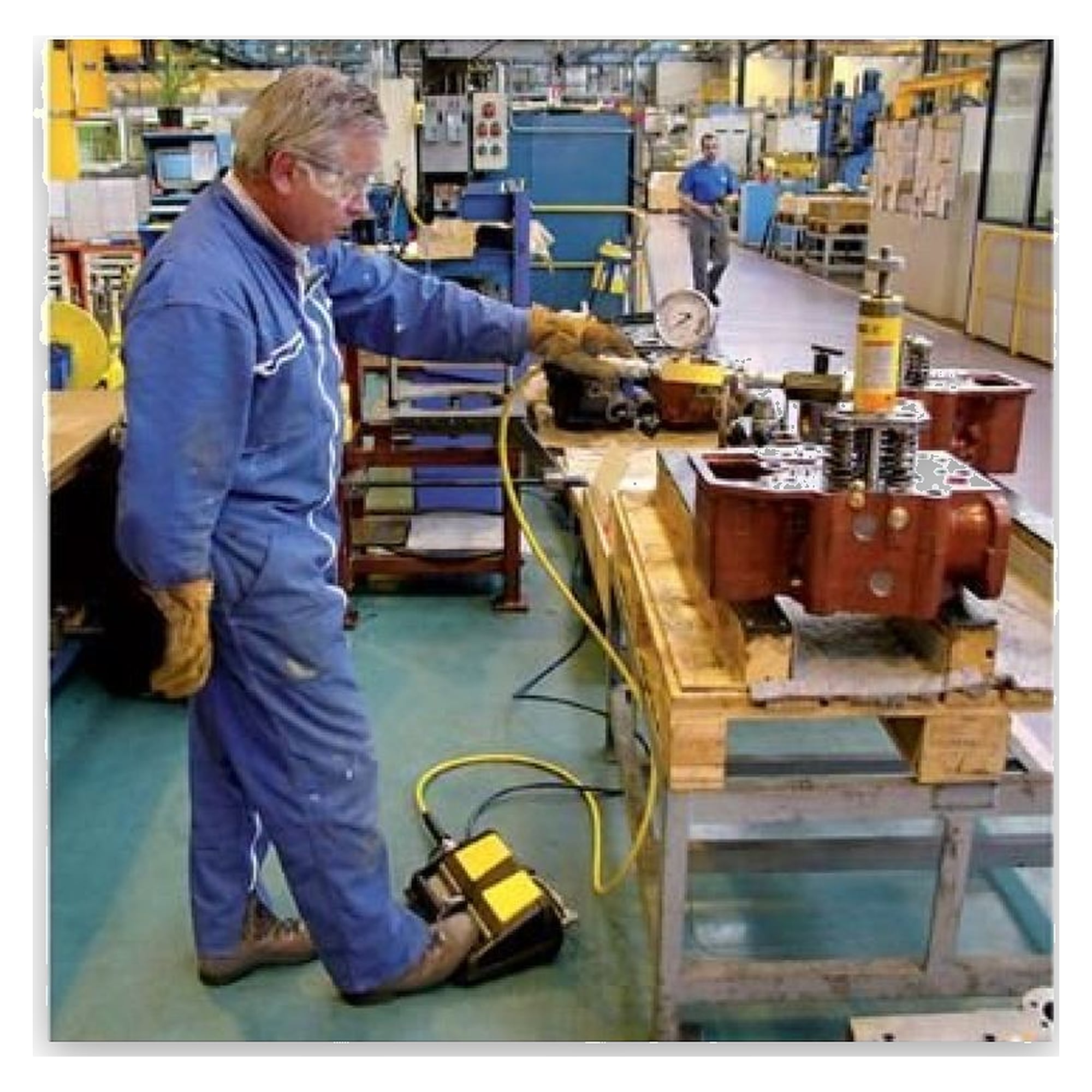

Driving double-acting Enerpac tools and cylinders in locations without mains power where hands-free working is required.
