Air Driven Hydraulic Foot Pump, 3/3 Valve, 2 L, Pressure Gauge - Enerpac XA12G

The XA12G foot pump drives Enerpac hydraulic tools hands-free on compressed air, keeping both hands free for the task. The 3/3 valve controls single-acting cylinders, and the 2-litre bladder reservoir allows use in any position at up to 700 bar.

Benefits

• Hands-free operation via two foot pedals, less operator fatigue on long jobs
• Built-in pressure gauge for direct reading of working pressure
• Fine metering control for precise stroke and force dosing
• Closed hydraulic system with bladder reservoir prevents contamination and allows any position
• Pedal lock holds the retract position
• Externally adjustable pressure relief valve
• Grounding screw for ATEX-compliant explosion protection

Technical data

• Type: air-driven hydraulic foot pump
• Valve: 3/3 (single-acting)
• Usable oil volume: 2 L
• Drive: compressed air
• Operating pressure: 700 bar

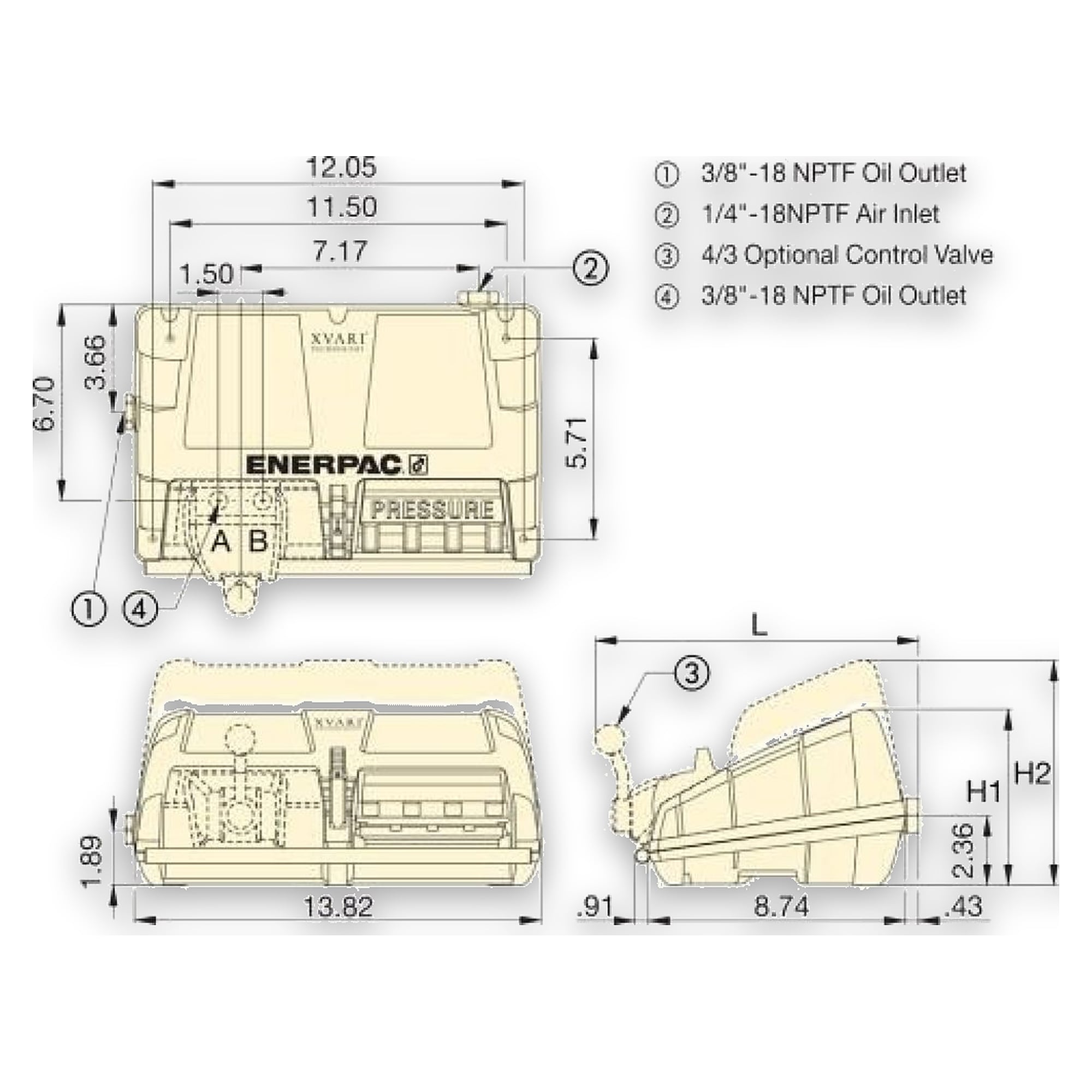

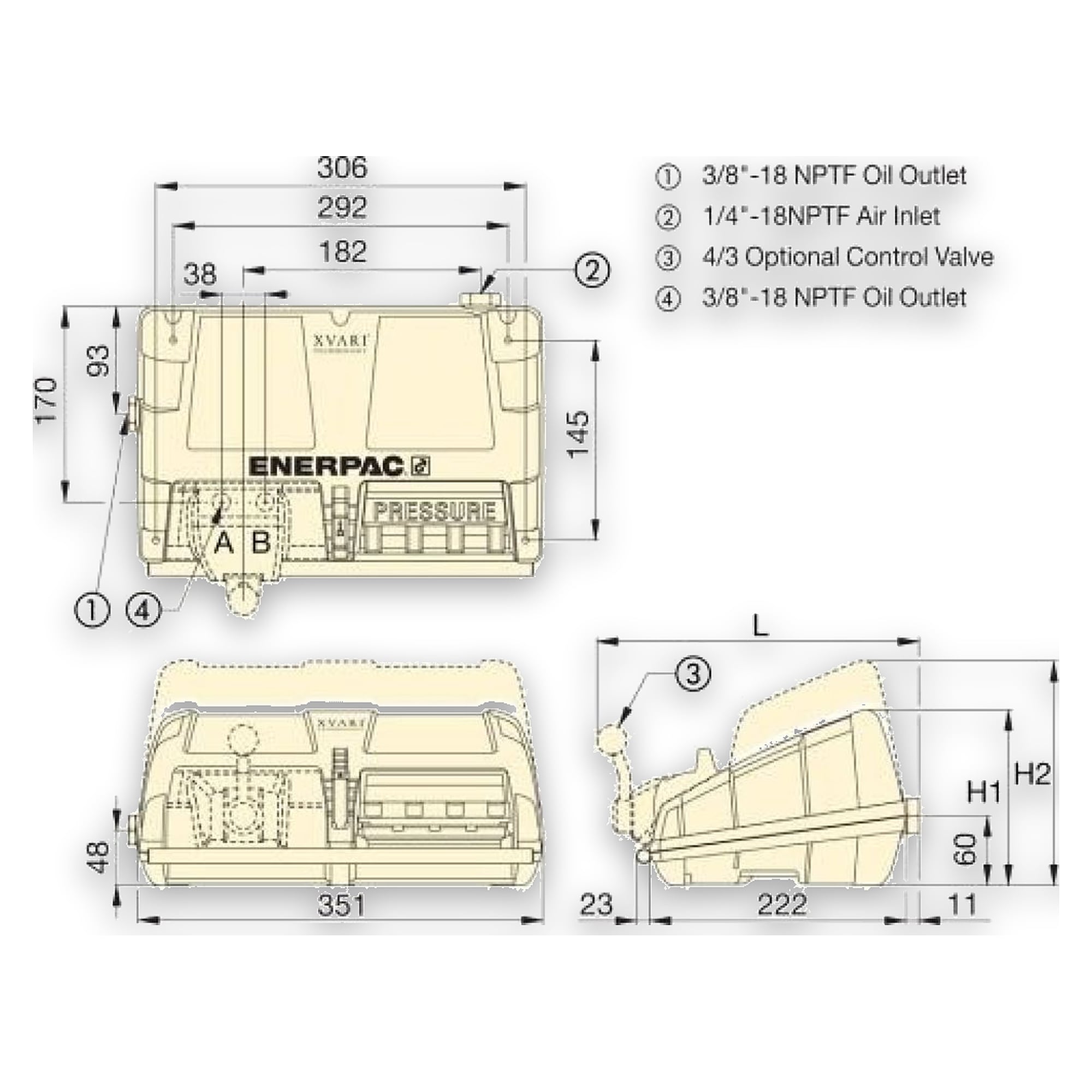

• Height H2: 170 mm
• Weight: 10.4 kg
• Series: XA

Applications

Driving single-acting Enerpac tools and cylinders in locations without mains power where hands-free working is required.
