Turbo II Air Hydraulic Pump, 3/3 Treadle Valve (Hand/Foot), 2081 cm³ - Enerpac PATG1102N

The PATG1102N Turbo II air hydraulic pump of the PATG series turns available compressed air into the hydraulic power you need and runs quietly at only 76 dBA. The air saver piston cuts air consumption, and the foot- or hand-operated treadle controls advance, hold and retract.

Benefits

• Air saver piston reduces air consumption and operating costs

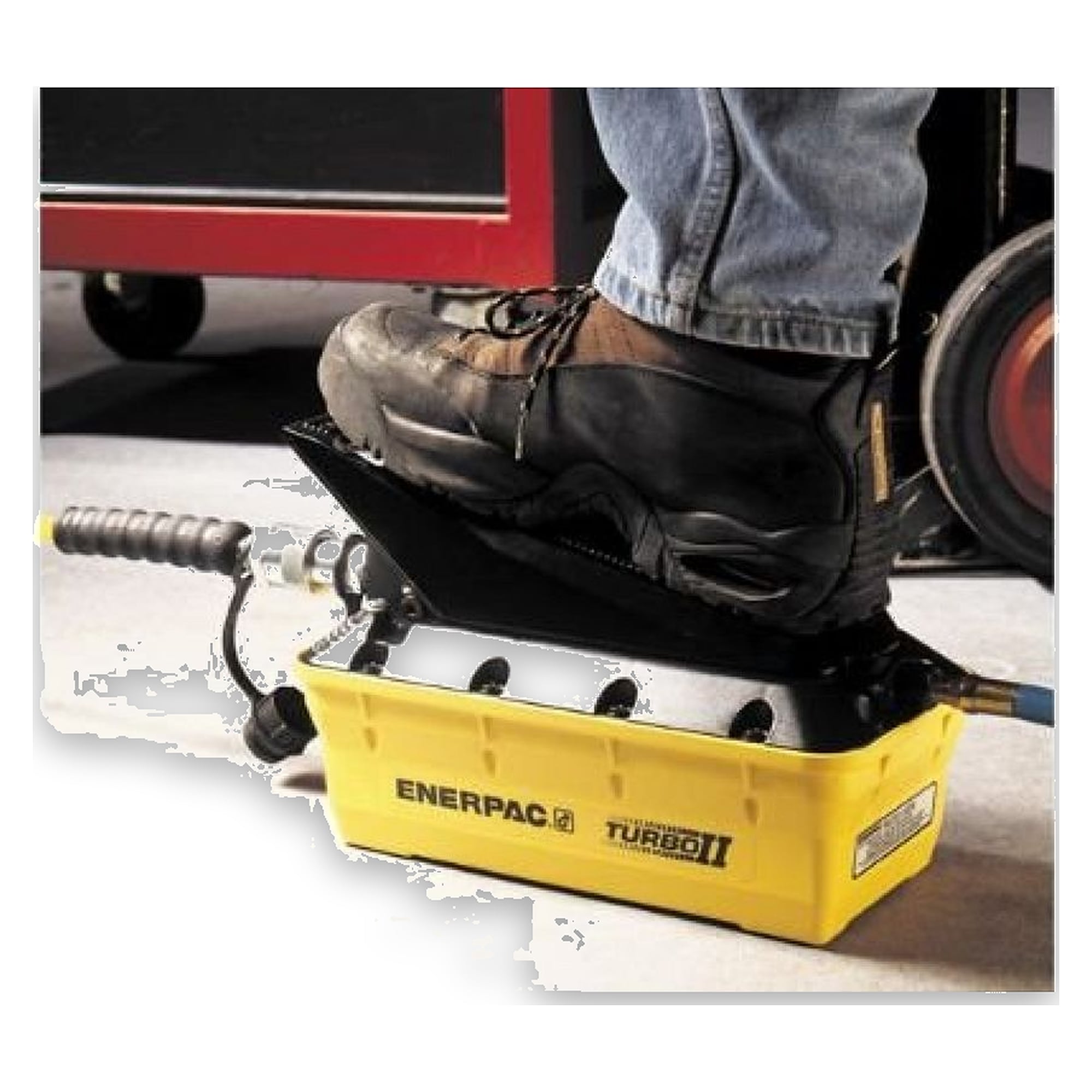

• foot- or hand-operated treadle for advance, hold and retract
• Starts at low air pressure, operating range 2.8 - 8.8 bar
• External adjustable pressure relief valve and internal overload protection
• Reinforced reservoir and high-efficiency cast aluminium air motor

Technical data

• Type: Turbo II air hydraulic pump
• Valve: 3/3 treadle valve (hand/foot)
• Usable oil volume: 2081 cm³
• Operating air pressure: 2.8 - 8.8 bar
• Noise level: 76 dBA
• Weight: 8.2 kg
• Series: PATG
