1489 kN Capacity, 50 mm Stroke, Double-Acting, Aluminum Hollow Plunger Hydraulic Cylinder - Enerpac RARH1502
Datasheet (PDF)

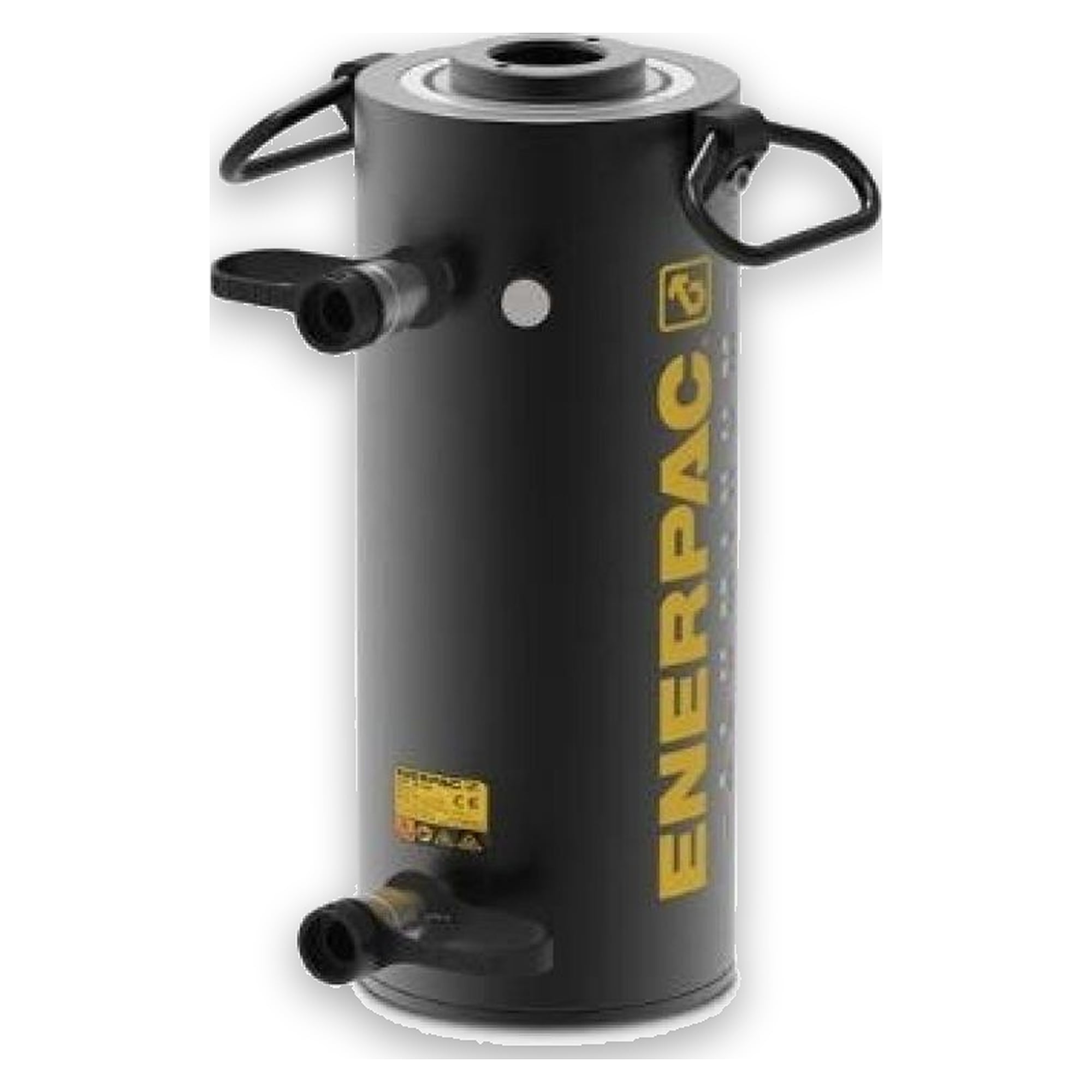

Pictures are for reference and may not be accurate, actual product may differ
RARH1502, 1489 kN Capacity, 50 mm Stroke, Double-Acting, Aluminum Hollow Plunger Hydraulic Cylinder

1489 kN Capacity, 50 mm Stroke, Double-Acting, Aluminum Hollow Plunger Hydraulic Cylinder - Enerpac RARH1502

ENERPAC Original product
Net price (excl. VAT)
€11,954.13 €10,045.49
excl. Shipping Cost
Available Fast shipping
Item ENP-RARH1502
Manufacturer no. RARH1502
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RARH1502
Country of originUnited States
ConditionNeu
Add to Wish List Add to Compare
Artikel
ENP-RARH1502
Model: RARH1502 |ECCN: EAR99 | Harmonization: 8412210075
Series: RARH |Product Line: Industrial Tools

  • Lighter and shorter collapsed height than equivalent RACH models
  • Double-acting for rapid retraction, regardless of hose lengths or system losses
  • Built-in safety valve prevents accidental over-pressurization
  • Hollow plunger design allows for both pull and push forces
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles and CR-400 couplers with dust caps included on all models
  • Floating center tube increases seal life
  • Steel baseplate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • All cylinders meet ASME B-30.1 standards

Dimension imperial

Collapsed Height A (in)
10.39
Extended Height B (in)
12.36
Outside Diameter D (in)
11.02
Cylinder Bore Diameter E (in)
7.48
Plunger Diameter F (in)
5.91
Base to Advance Port H (in)
2.41
Saddle Diameter J1 (in)
5.00
Saddle Protrusion from Plunger K (in)
0.74
Plunger Internal Thread O (in)
4 1/4"-12 UN
Plunger Thread Length P (in)
1.57
Base Mounting Holes Bolt Circle U (in)
9.84
Base Mounting Holes Thread V
M10
Center Hole Diameter Y (in)
3.11
Base Mounting Holes Thread Depth Z (in)
0.47

Dimension metric

Collapsed Height A (mm)
264
Extended Height B (mm)
314
Outside Diameter D (mm)
280
Cylinder Bore Diameter E (mm)
190
Plunger Diameter F (mm)
150
Base to Advance Port H (mm)
61
Saddle Diameter J (mm)
127
Plunger Internal Thread O (in)
4 1/4"-12 UN
Plunger Thread Length P (mm)
40
Base Mounting Holes Bolt Circle U (mm)
250
Base Mounting Holes Thread V
M10
Center Hole Diameter Y (mm)
79
Base Mounting Holes Thread Depth Z (mm)
12
More Information
Hersteller-Nr RARH1502
Manufacturer Enerpac
Country of Manufacture United States
Weight 42.400000
Hinweis Industriewerkzeuge
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Originalprodukt
Artikelzustand Neu
