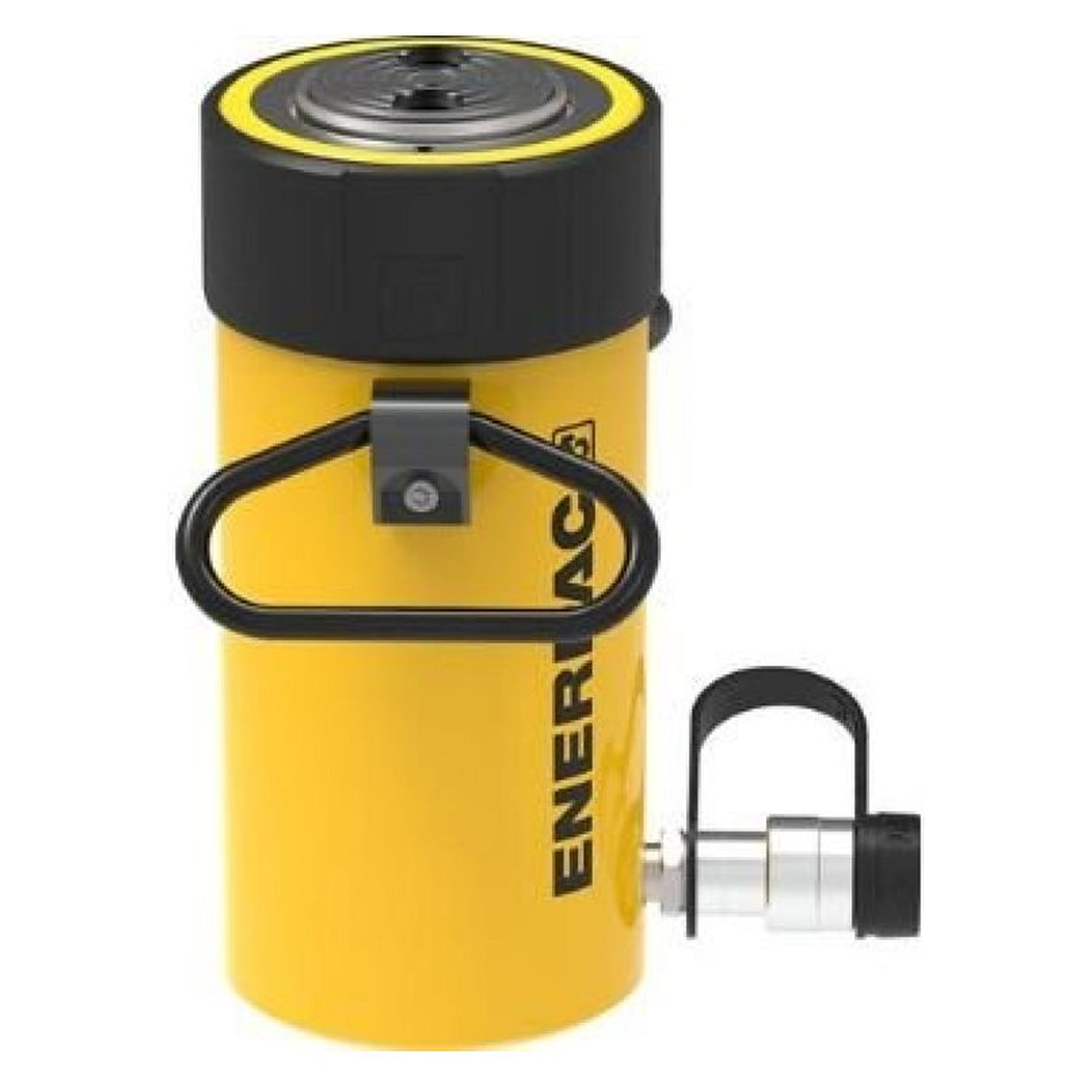

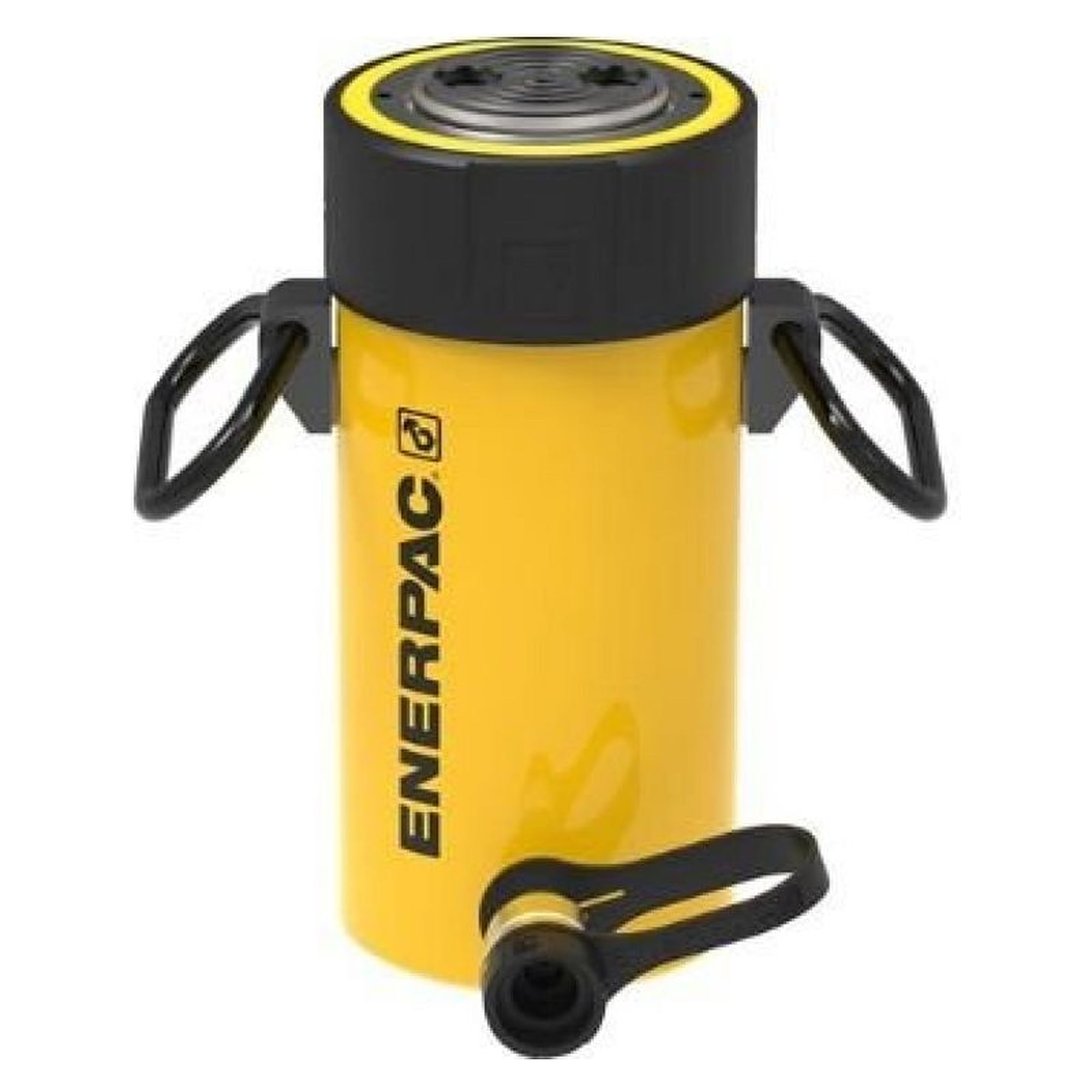

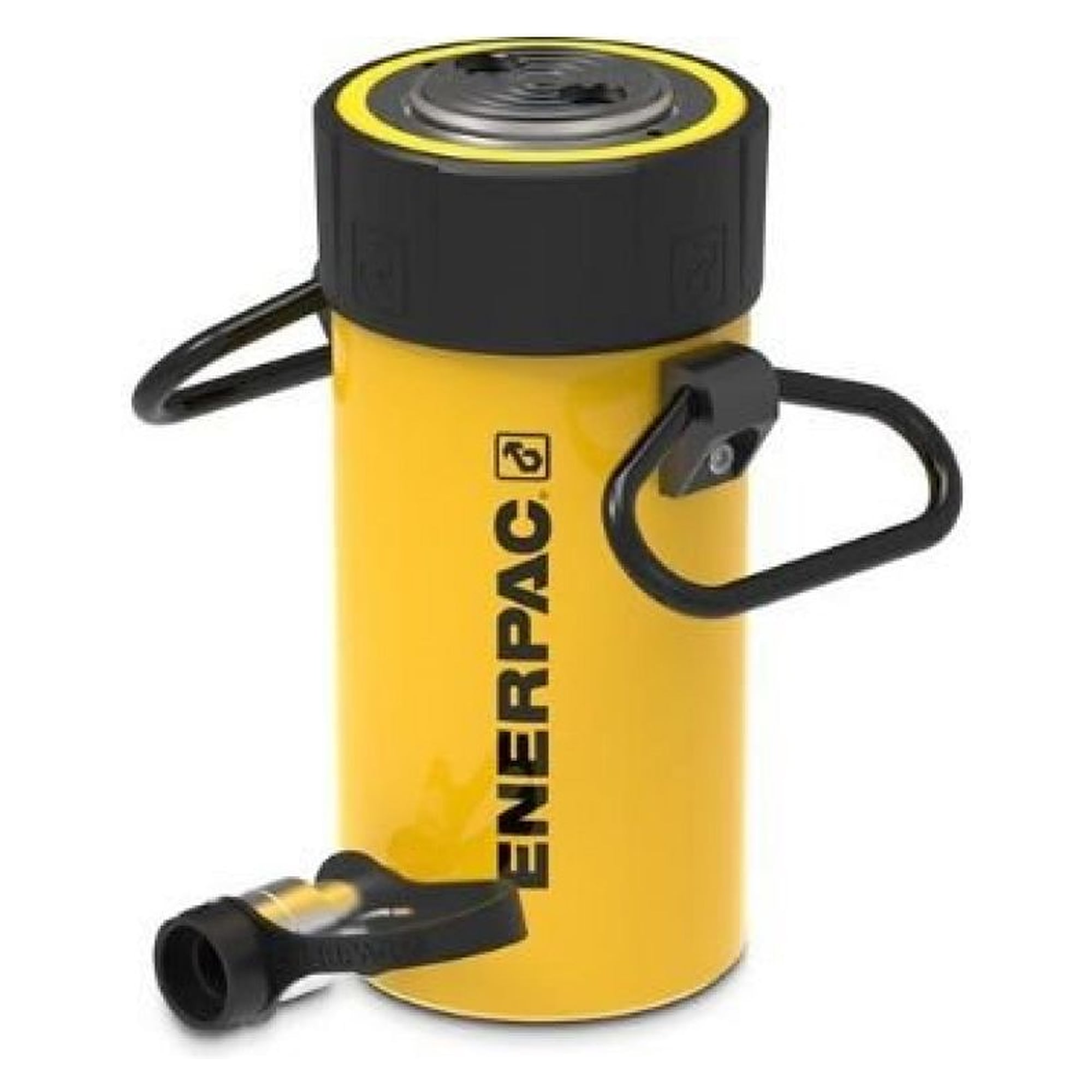

General Purpose Hydraulic Cylinder, 498 kN, 159 mm Stroke - Enerpac RC506

The RC506 handles heavy lifting and pushing jobs with 498 kN of force over 159 mm of stroke and returns quickly thanks to the hybrid spring return.

Benefits

• TRIO bearing system with up to four wear bands that reduces bearing load and extends service life
• Hybrid spring-return system for faster retraction and higher productivity
• High-performance polyethylene seals for long service intervals
• Nickel-plated high-strength steel plunger for corrosion protection and sideload resistance
• Dimensionally identical to prior RC-Series cylinders, so fully compatible with existing systems

Technical data

• Force: 498 kN
• Stroke: 159 mm
• Action: single-acting, spring return
• Operating pressure: 700 bar
• Weight: 23.1 kg
• Series: RC

Applications

For general lifting, pushing and clamping work in maintenance, assembly and production. Collar and base threads allow easy mounting in both vertical and horizontal orientation.
