Aluminum Hydraulic Cylinder, 496 kN, 150 mm Stroke - Enerpac RAC506

The RAC506 lifts and positions loads with 496 kN of force over a 150 mm stroke, yet weighs only 11.1 kg, roughly half the weight of a comparable steel cylinder. That makes it easier to carry and align at the point of use.

Benefits

• Aluminum body at about half the weight of steel, less corrosive and hard-anodized for durability
• Composite bearings prevent metal-to-metal contact and take side loads of up to 10%
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• High-strength return spring for rapid retraction
• Steel base plate, saddle and carrying handle as standard, CR400 coupler and dust cap included

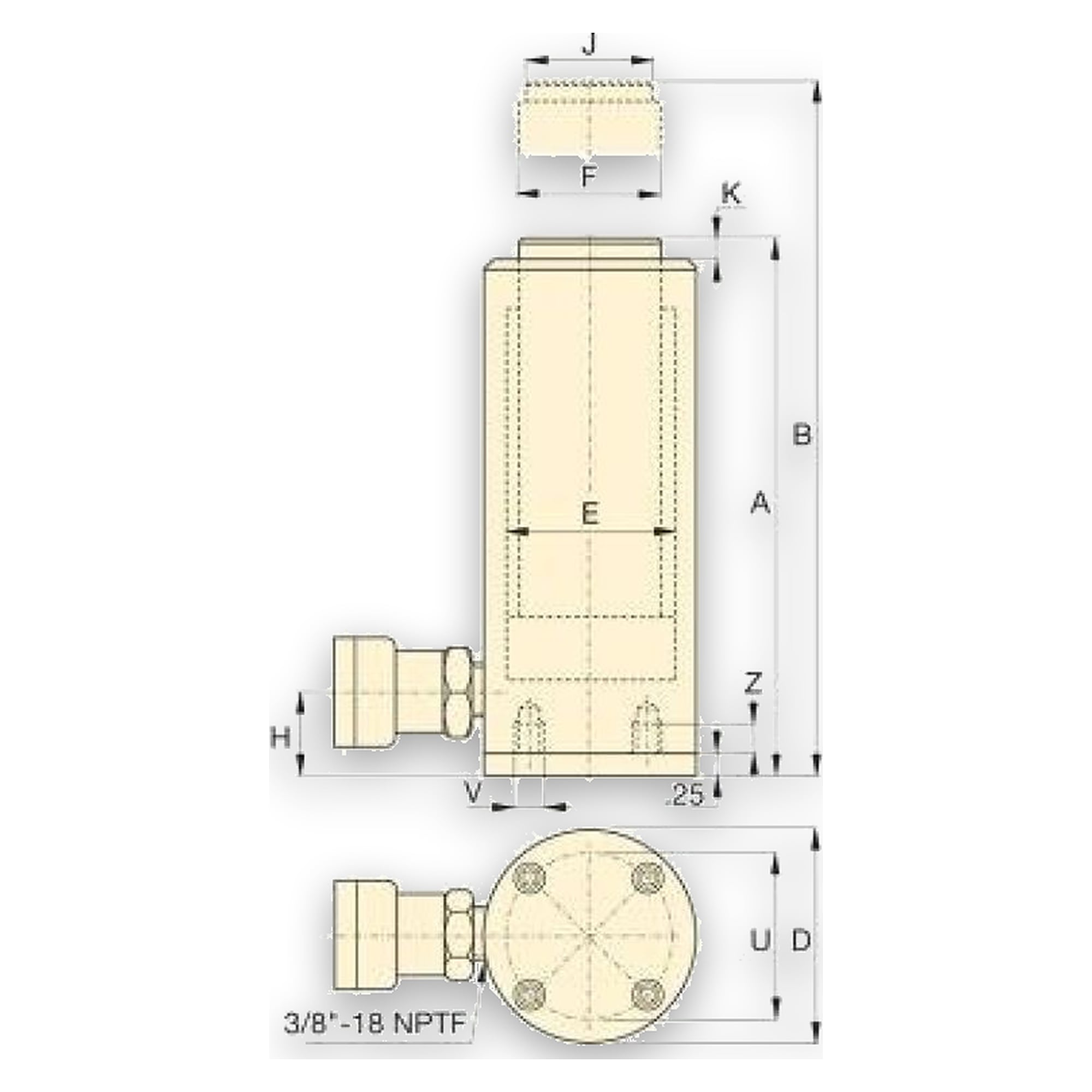

Technical data

• Capacity: 496 kN
• Stroke: 150 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Outside diameter: 130 mm
• Plunger diameter: 80 mm
• Base mounting thread: M6
• Weight: 11.1 kg
• Series: RAC

Standards

• Compliant with ASME B30.1
