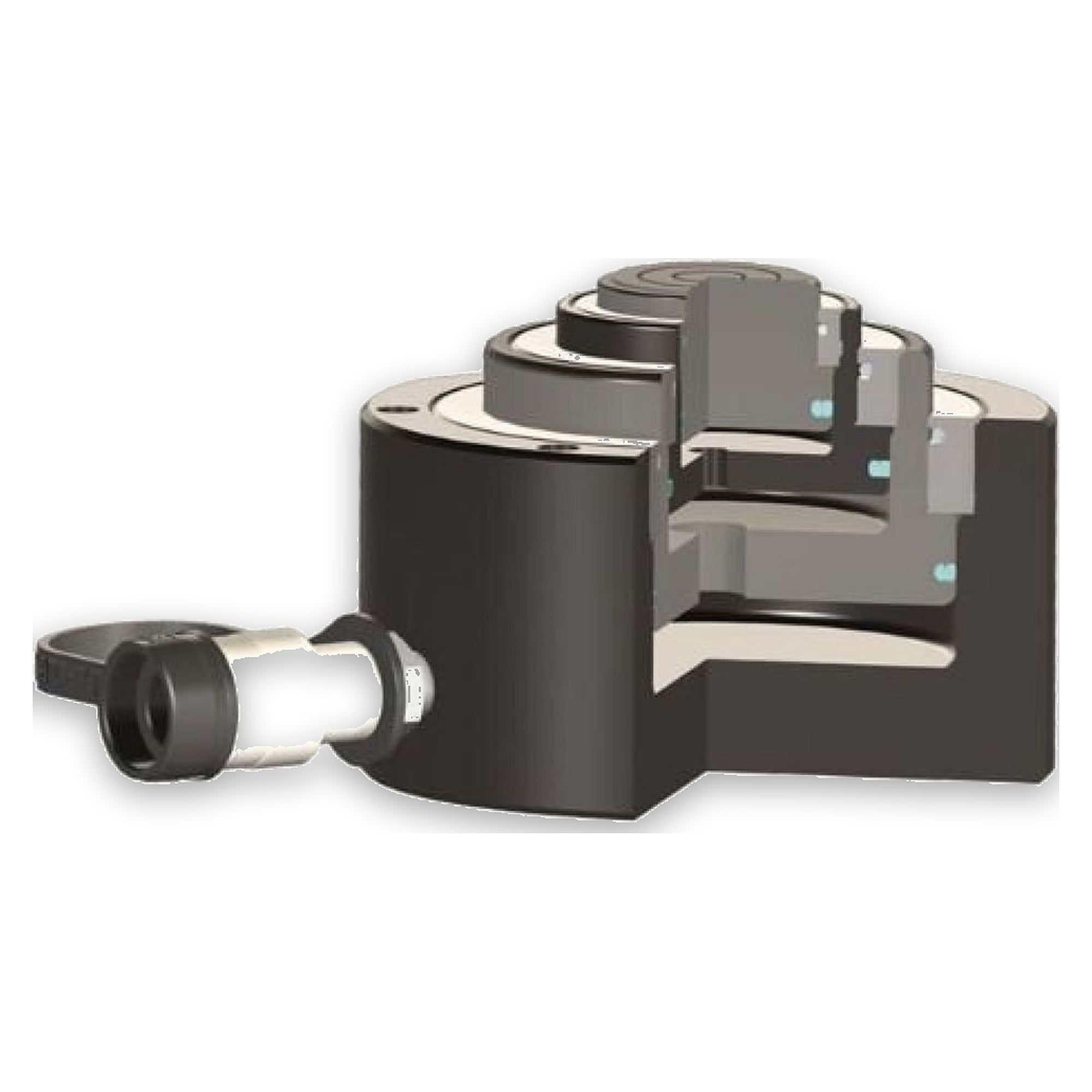

Telescopic Cylinder, 727 kN, 26 mm Stroke - Enerpac RLT741

The RLT741 telescopic cylinder lifts and positions loads with 727 kN of force and reaches a total stroke of 26 mm across its stages, bridging long distances from a minimal collapsed height.

Benefits

• Single-acting with load return, no spring return
• Nitrocarburised surface inside and out for high side-load resistance and corrosion protection
• Long stroke in a compact envelope, saving time and removing temporary cribbing
• Mounting bolt holes for easy fixing
• Up to 3 % side load at full capacity
• CR400 coupler, compatible with the standard Enerpac range

Technical data

• Type: telescopic cylinder, single-acting
• Capacity: 727 kN
• Stroke: 26 mm
• Operating pressure: 700 bar
• Collapsed height: 114 mm
• Extended height: 140 mm
• Coupler: CR400
• Weight: 30.4 kg
• Series: RLT

Applications

Machinery positioning and tool fastening in confined spaces.

Standards

• Design safety factor complies with ASME B30.1 and EN 1494
