High Tonnage Hydraulic Cylinder, 990 kN, 150 mm Stroke - Enerpac HCRL1006

The HCRL1006 is a double-acting high-tonnage hydraulic cylinder delivering 990 kN of force over a 150 mm stroke, with an integrated lock nut for mechanical load holding. The load stays fixed even if hydraulic pressure is lost.

Benefits

• Lock nut holds the load mechanically, independent of hydraulic pressure
• Low-friction lock nut spins easily and saves setting time
• Hydraulically controlled fast retraction
• Integrated tilt saddle compensates for misalignment up to 5 degrees
• Up to 10 % side-load resistance of rated capacity
• Hardened surface and replaceable bearings for guidance and long life
• Stop-ring prevents plunger blow-out

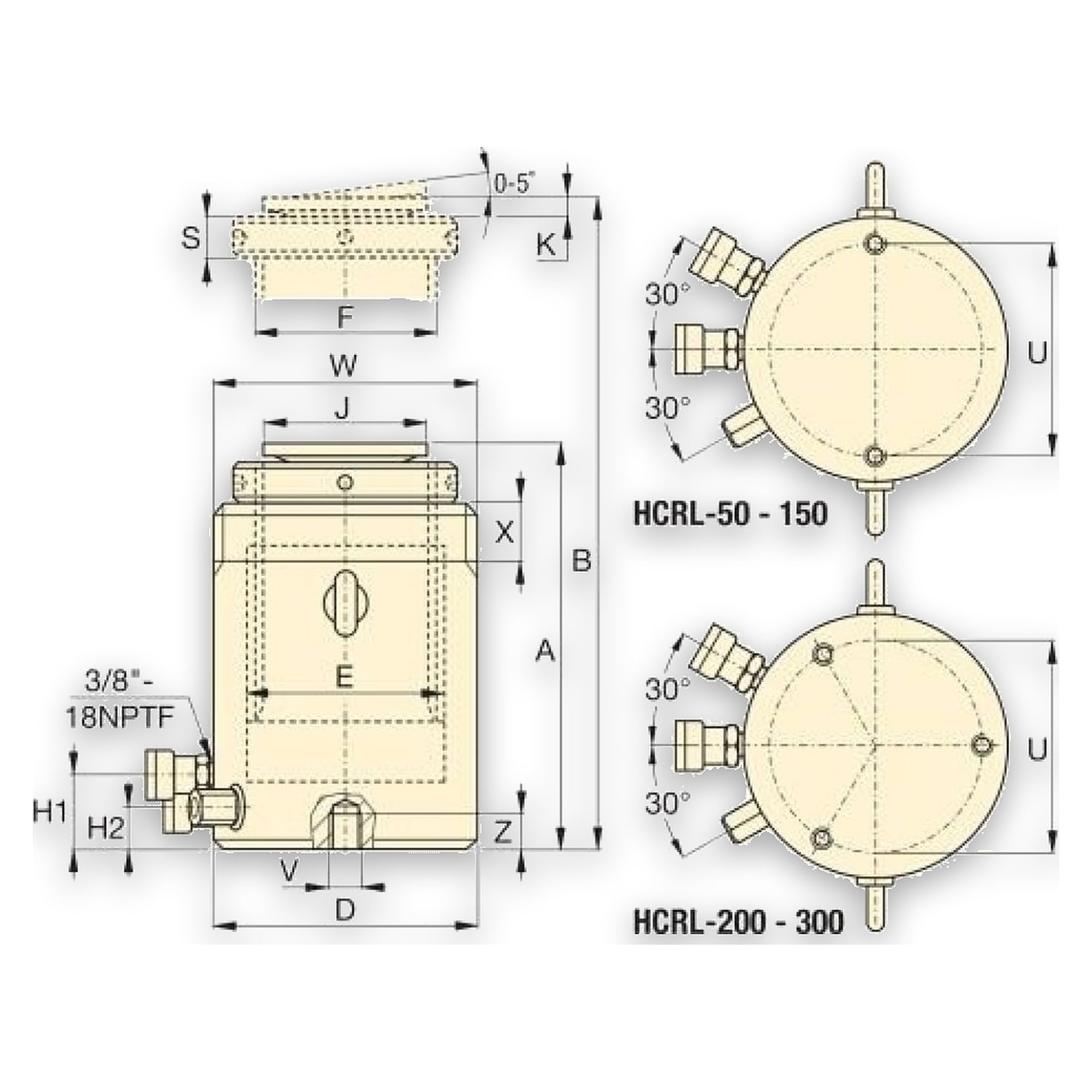

Technical data

• Force: 990 kN
• Stroke: 150 mm
• Action: double-acting, with lock nut
• Operating pressure: 700 bar
• Weight: 64 kg
• Series: HCRL

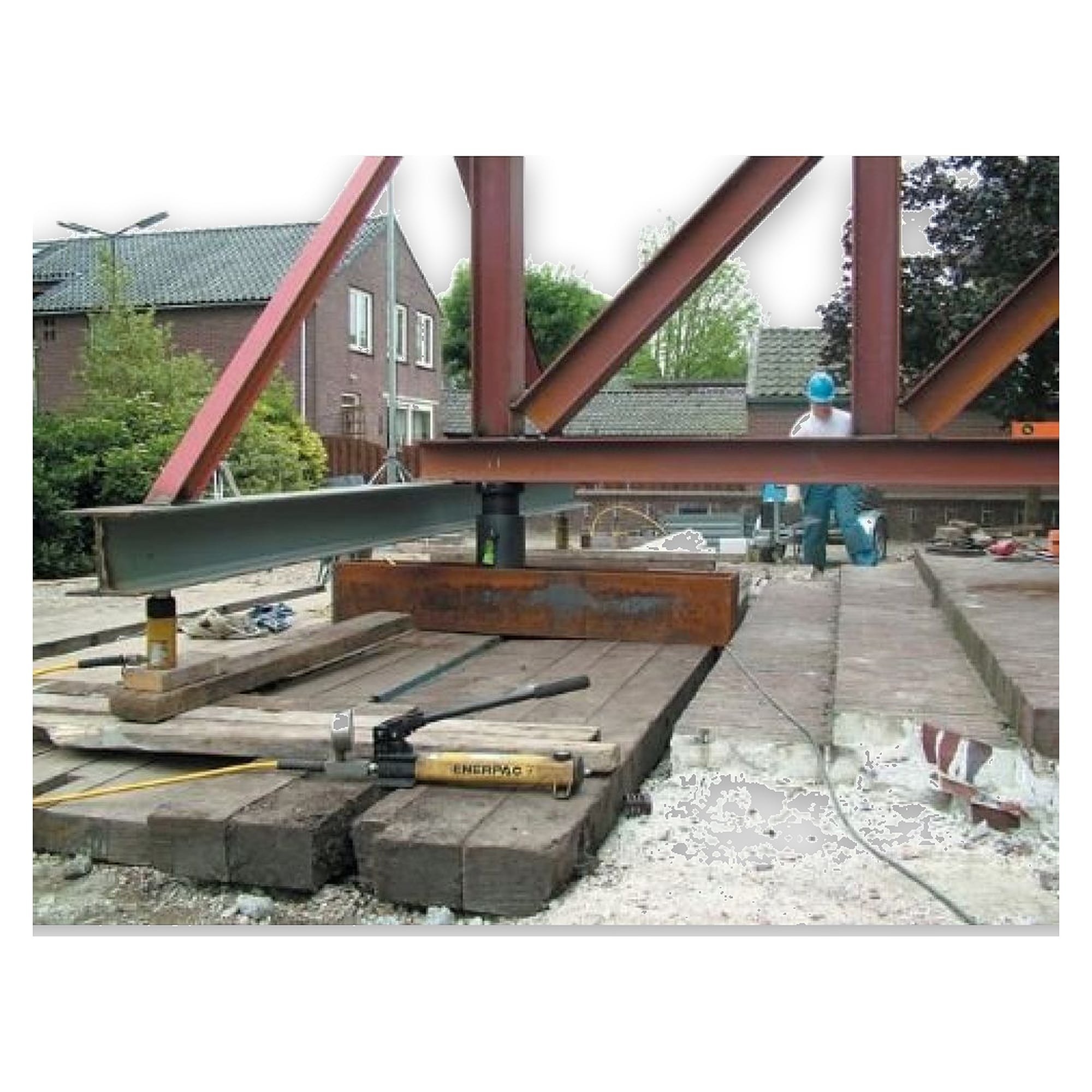

Applications

For heavy lifts that must be held for long periods, such as lifting and supporting structures, machines and plant components. Certified lifting eyes and internal and collar threads are standard.
