General Purpose Cylinder, 1386 kN, 333 mm Stroke - Enerpac RR15013

The RR15013 lifts, pushes and positions heavy loads with 1386 kN of force over a 333 mm stroke. Its double-acting design retracts the plunger hydraulically for fast cycle times, even in high-cycle use.

Benefits

• Collar, plunger and base mounting threads for easy fixturing and accessory mounting
• Baked enamel finish for increased corrosion resistance on demanding sites
• Removable hardened saddles protect the plunger during lifting and pressing
• Built-in safety valve prevents accidental over-pressurization
• CR400 coupler fitted as standard for quick connection
• Plunger wiper keeps out contamination and extends cylinder life

Technical data

• Capacity: 1386 kN
• Stroke: 333 mm
• Type: double-acting, hydraulic return
• Operating pressure: 700 bar
• Collapsed height: 582 mm
• Extended height: 915 mm
• Outer diameter: 203 mm
• Saddle diameter: 114 mm
• Weight: 124 kg
• Series: RR

Applications

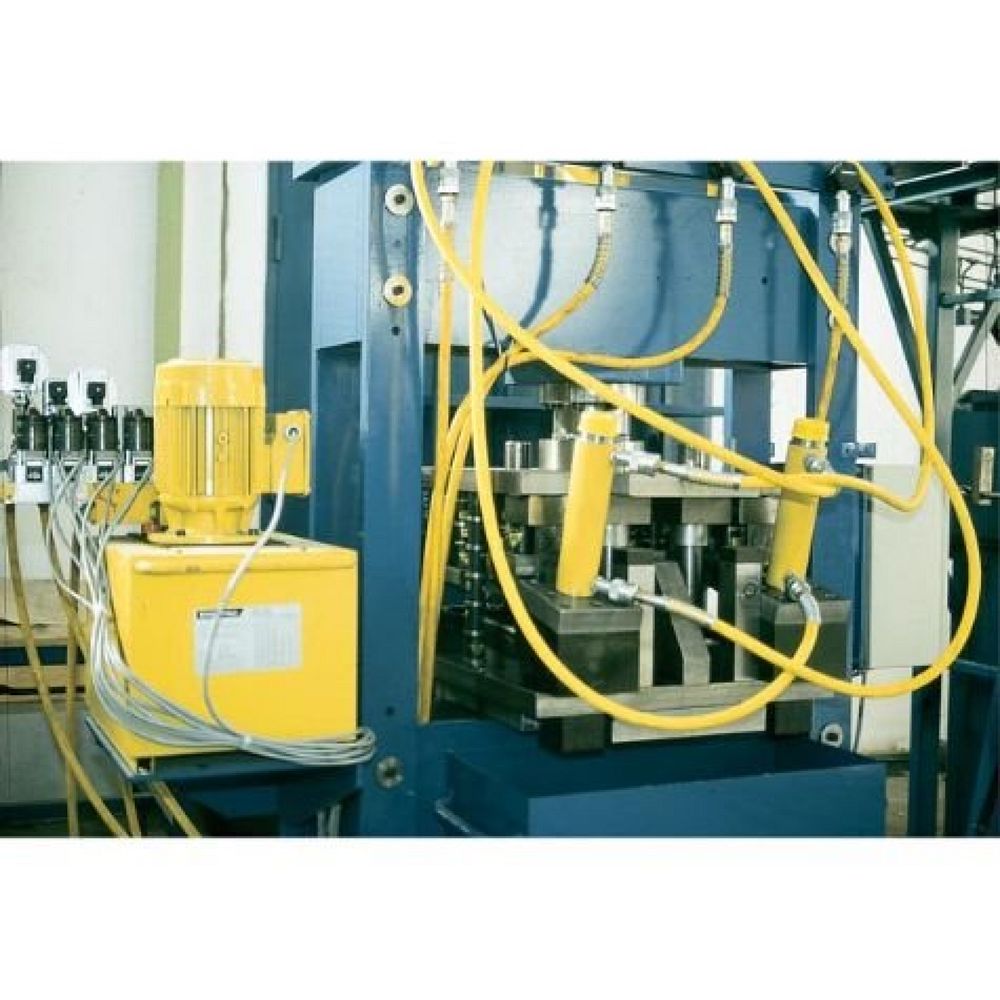

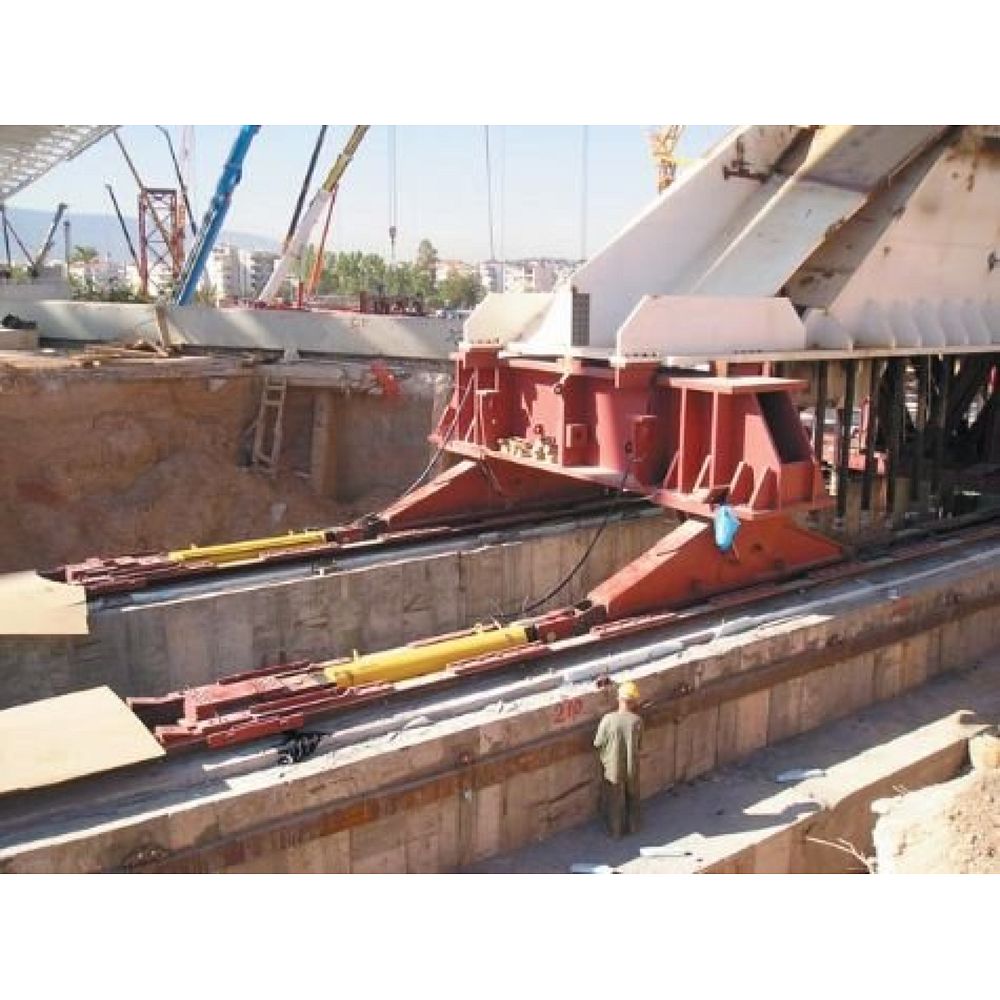

The cylinder suits lifting, pushing and positioning tasks in construction, maintenance and machine building. Long-stroke models move the load over a greater distance and reduce the need for temporary cribbing.

Standards

• Compliant with ASME B30.1
