High Tonnage Hydraulic Cylinder, 1501 kN, 250 mm Stroke - Enerpac HCRL15010

The HCRL15010 is a double-acting high-tonnage hydraulic cylinder delivering 1501 kN of force over a 250 mm stroke, with an integrated lock nut for mechanical load holding. The load stays fixed even if hydraulic pressure is lost.

Benefits

• Lock nut holds the load mechanically, independent of hydraulic pressure
• Low-friction lock nut spins easily and saves setting time
• Hydraulically controlled fast retraction
• Integrated tilt saddle compensates for misalignment up to 5 degrees
• Up to 10 % side-load resistance of rated capacity
• Hardened surface and replaceable bearings for guidance and long life
• Stop-ring prevents plunger blow-out

Technical data

• Force: 1501 kN
• Stroke: 250 mm
• Action: double-acting, with lock nut
• Operating pressure: 700 bar
• Weight: 129 kg
• Series: HCRL

Applications

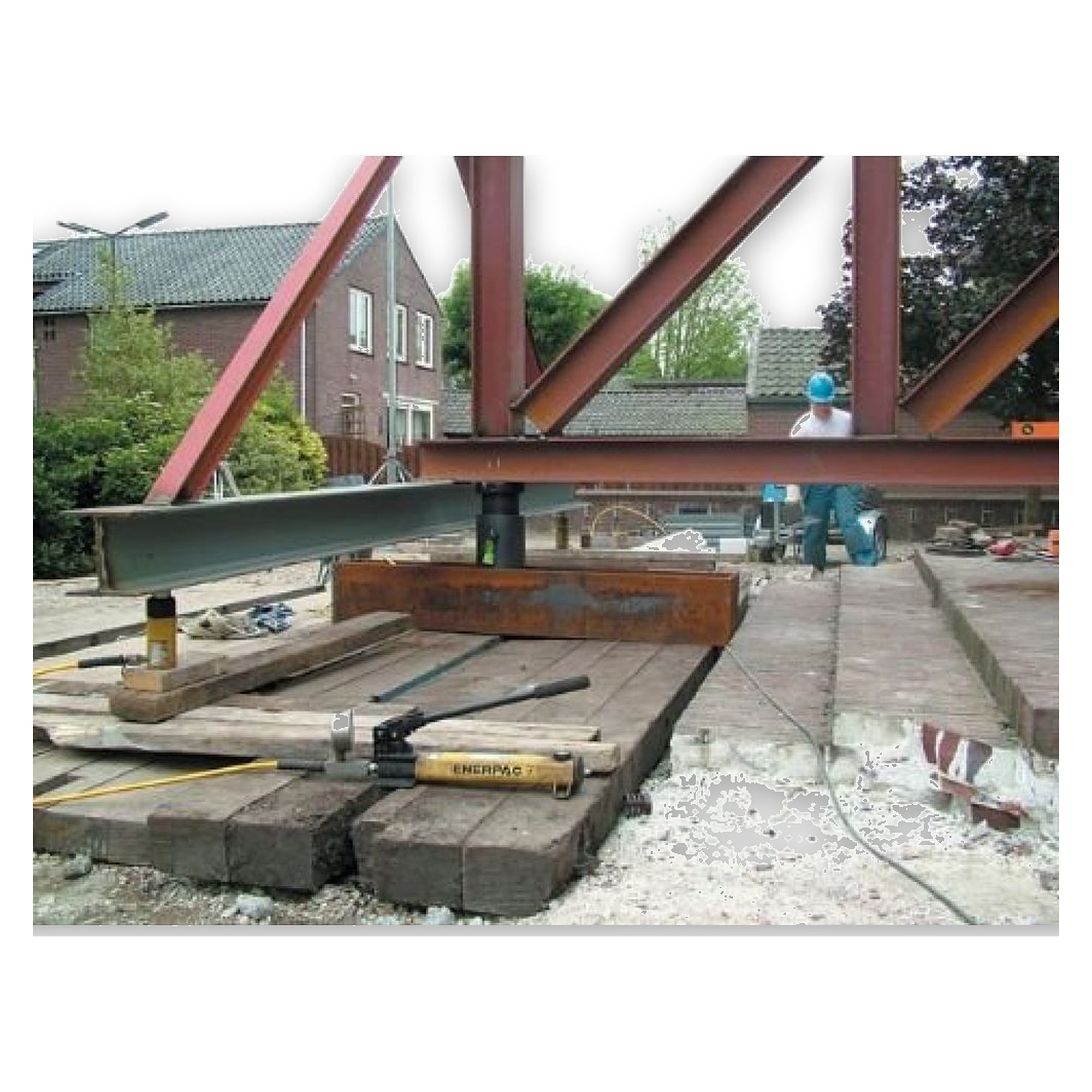

For heavy lifts that must be held for long periods, such as lifting and supporting structures, machines and plant components. Certified lifting eyes and internal and collar threads are standard.
