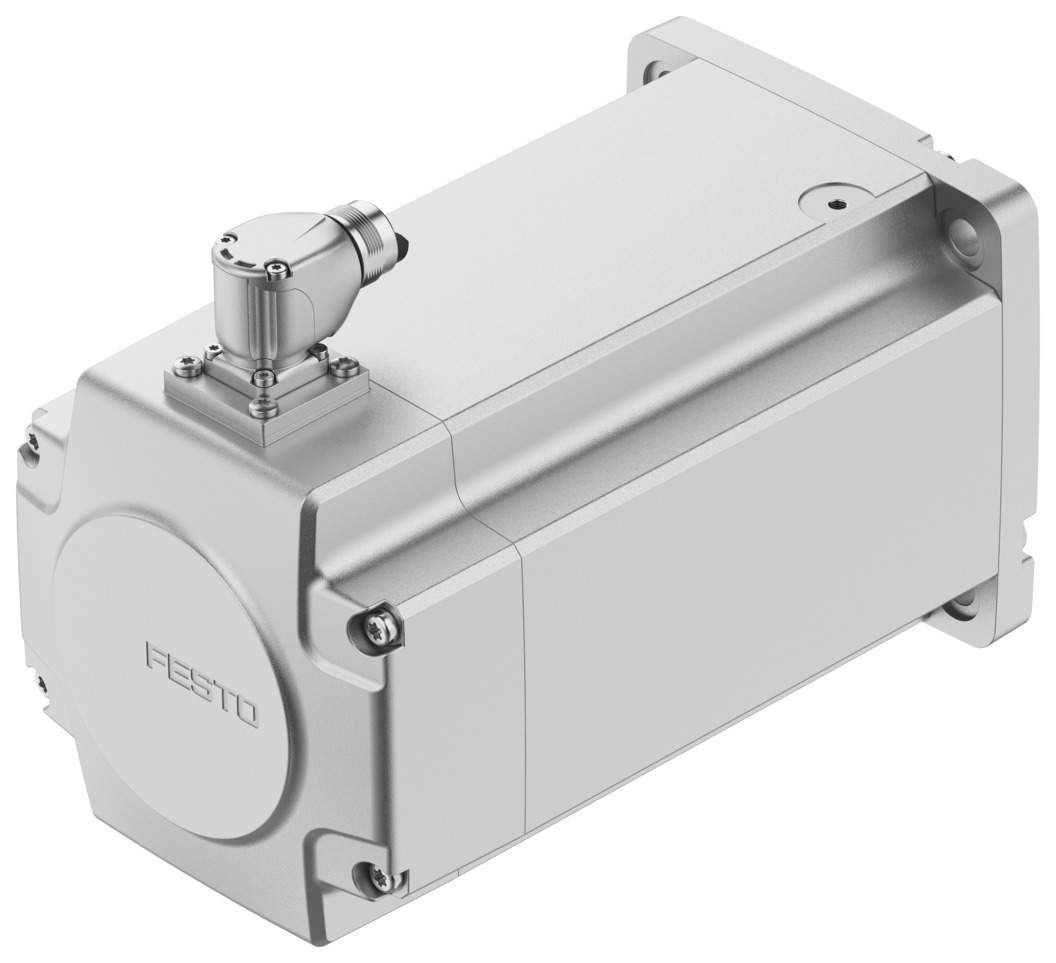

Servo motor 4257 W, 33 Nm standstill torque, single-turn encoder EMMT-AS-150-MK-HS-R2S - Festo 8148282

Festo ✓ Original product Brand new

27.1 Nm nominal torque and 64 Nm peak torque make the EMMT-AS-150-MK-HS-R2S a drive for dynamic positioning tasks. Rated power 4257 W at 1500 1/min, designed for 680 V DC. A single-turn absolute encoder (EnDat 22) captures the rotor position.

Net
€2,278.08
excl. VAT
Item FES-8148282
Manufacturer no. EMMT-AS-150-MK-HS-R2S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo EMMT-AS-150-MK-HS-R2S is a servo motor with 4257 W rated power and 33 Nm standstill torque. Total moment of inertia is 38.7 kgcm².

Benefits

  • Peak torque 64 Nm for short cycles and acceleration phases
  • Speed up to 2368 1/min, nominal speed 1500 1/min
  • Single-turn absolute encoder with 19 bit resolution, EnDat 22 interface
  • Cogging torque below 1.0 % of peak torque, smooth running even at low speeds
  • Degree of protection IP21, ambient temperature -15 to 40 °C

Application

For electric axes, handling systems and rotary indexing tables. The EMMT-AS-150-MK-HS-R2S runs on a servo drive for 680 V DC link voltage.

Technical data

TypeEMMT-AS-150-MK-HS-R2S
Festo part no.8148282
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat® 2.2
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP21
Note on degree of protectionIP67 for motor housing including connection components
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torque&lt,1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Featherkey shaft typeDIN 6885, A 8 x 7 x 36
Interface code, motor out150A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM23x1
Electrical connection 1, number of connections/cores15
Electrical connection 1, connection pattern00995913
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceAs per EN 60068-2-6
Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27
ApprovalRCM, c UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque33 Nm
Nominal torque27.1 Nm
Peak torque64 Nm
Nominal rotary speed1500 1/min
Maximum rotational speed2368 1/min
Maximum mechanical speed10000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor4257 W
Continuous stall current11.4 A
Nominal motor current9.5 A
Peak current24 A
Motor constant2.85 Nm/A
Standstill torque constant3.3 Nm/A
Voltage constant, phase-to-phase199.4 mVmin
Phase-phase winding resistance0.935 Ohm
Phase-phase winding inductance14.6 mH
Winding longitudinal inductivity Ld (phase)7.2 mH
Winding cross inductivity Lq (phase)7.3 mH
Electric time constant15.4 ms
Thermal time constant45 min
Thermal resistance0.45 K/W
Measuring flange450 x 450 x 30 mm, steel
Total mass moment of inertia of output38.7 kgcm²
Product weight18700 g
Permissible axial shaft load294 N
Permissible radial shaft load1470 N
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, manufacturer designationECI 1319
Rotor position sensor, absolute detectable revolutions1
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range3.6 to 14 V
Rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
Rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 1
ManufacturerFesto
Hersteller-NrEMMT-AS-150-MK-HS-R2S
EAN4052568591229
Zolltarifnummer85015220
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungSingleturn-Absolutwertgeber, ohne Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
SeriesEMMT
Protection ratingIP21
Temperature (max.)40
