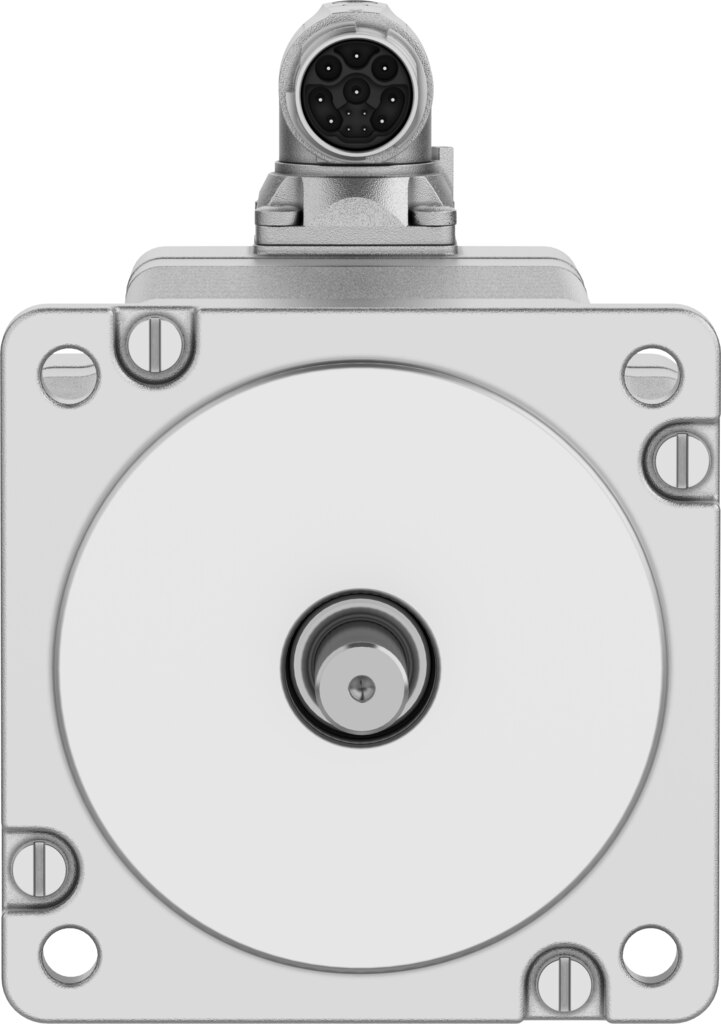

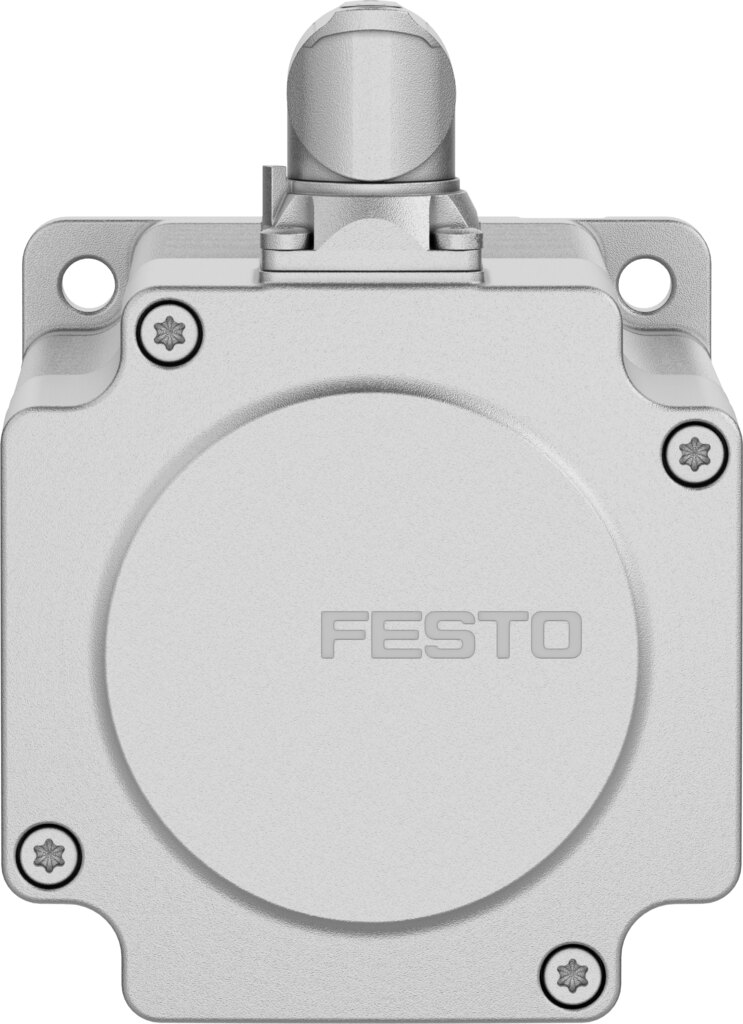

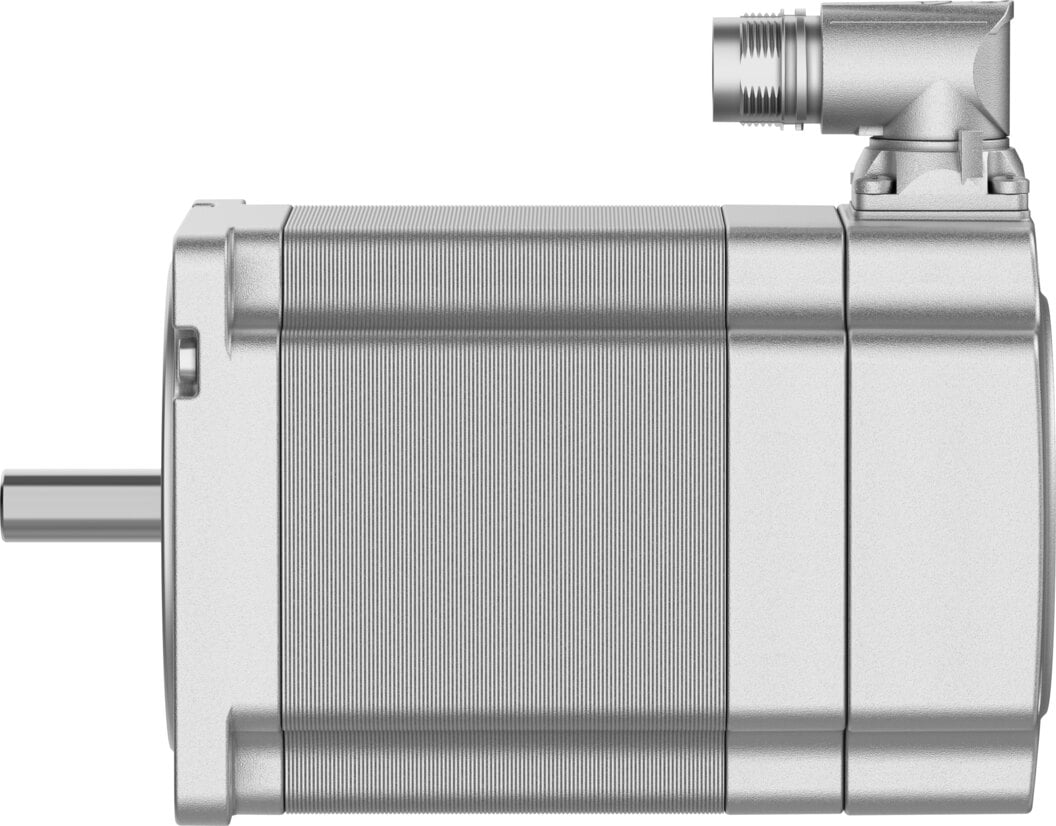

Stepper motor 48 V, 6.6 Nm holding torque EMMT-ST-87-M-R - Festo 8156191

Festo ✓ Original product Brand new

Stepper motor EMMT-ST-87-M-R for 48 V DC link voltage with 6.6 Nm holding torque and up to 6.8 Nm peak torque. The full-step angle is 1.8°. The housing including connection components achieves IP65. Connection is made via hybrid plug M17x0.75.

Net
€361.95
excl. VAT
Item FES-8156191
Manufacturer no. EMMT-ST-87-M-R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo stepper motor EMMT-ST-87-M-R is designed for 48 V and provides 6.6 Nm holding torque.

Benefits

  • Reserve for acceleration: peak torque 6.8 Nm at 6.6 Nm holding torque
  • Connection: hybrid plug M17x0.75, 12 pins
  • Degree of protection: IP40 at the shaft, IP65 for housing and connection components
  • Step angle: 1.8° at full step
  • Mass moment of inertia: 1.9 kgcm² total at output

Applications

The motor suits linear and rotary axes with interface code 87A.

Technical data

Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidityNon-condensing
Conforms to standardIEC 60034
Temperature class as per EN 60034-1B
Maximum winding temperature130 °C
Rating class as per EN 60034-1S1
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP40 motor shaft, IP65 for motor housing, including connection technology
Interface code, motor out87A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM17x0.75
Electrical connection 1, number of connections/cores12
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Number of pole pairs50
Motor holding torque6.6 Nm
Peak torque6.8 Nm
Maximum rotational speed600 1/min
Maximum mechanical speed7000 1/min
Stepper angle for complete step1.8 deg
Stepping angle tolerance±5%
Continuous stall current8.2 A
Nominal motor current7.5 A
Peak current12 A
Motor constant0.79 Nm/A
Voltage constant, phase56.6 mVmin
Phase winding resistance0.27 Ohm
Phase winding inductance2.3 mH
Winding longitudinal inductivity Ld (phase)3.6 mH
Winding cross inductivity Lq (phase)2.3 mH
Electric time constant8.5 ms
Thermal time constant32 min
Thermal resistance0.83 K/W
Measuring flange250 x 250 x 15 mm, steel
Total mass moment of inertia of output1.9 kgcm²
Product weight3490 g
Permissible axial shaft load60 N
Permissible radial shaft load220 N
Weight4.1 kg
ManufacturerFesto
Hersteller-NrEMMT-ST-87-M-R
EAN4052568639792
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
