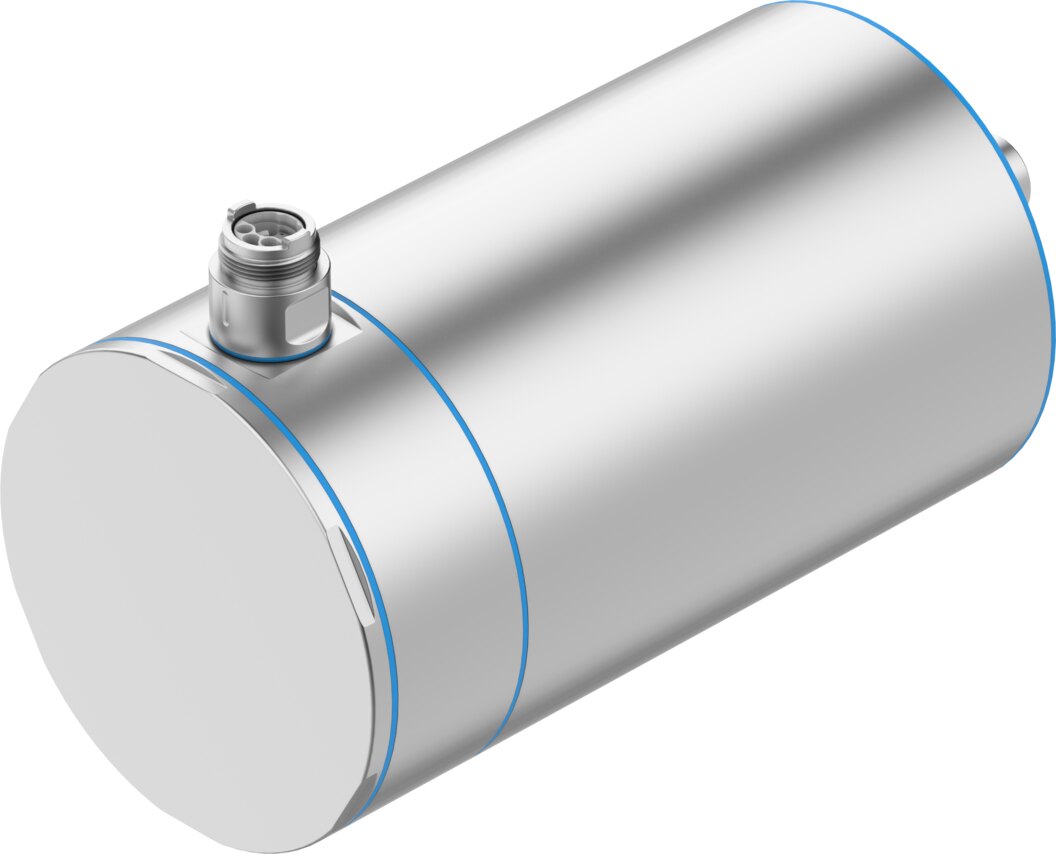

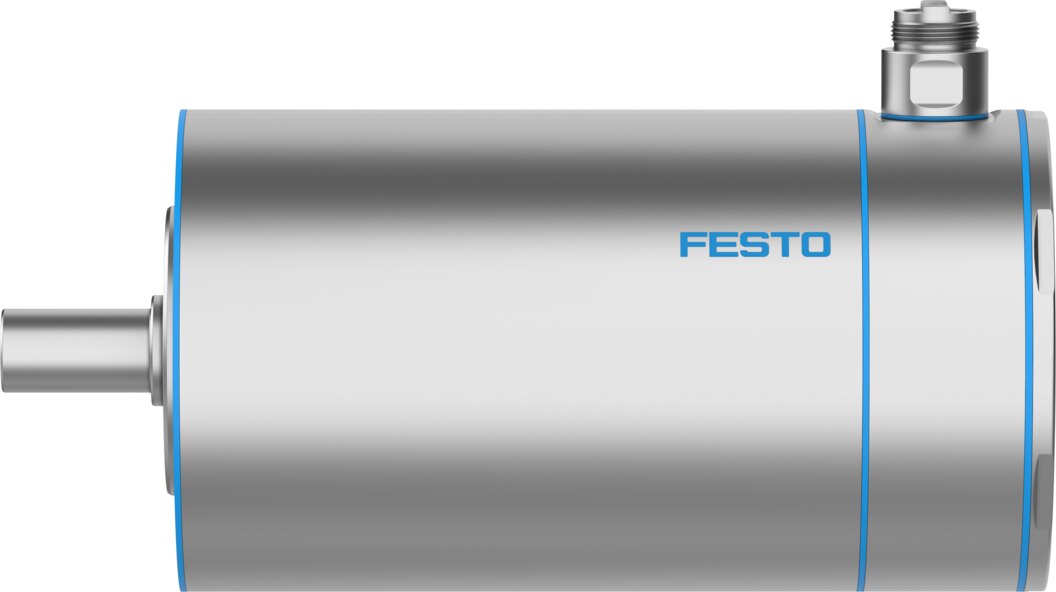

Servo motor IP69K 680 V, 5.9 Nm standstill torque, multi-turn absolute encoder, holding brake EMMH-AS-108-MA-HS-S1MB-T - Festo 8215359

Festo ✓ Original product Brand new

The servo motor EMMH-AS-108-MA-HS-S1MB-T delivers 3.85 Nm nominal torque at 2000 1/min and briefly reaches 19 Nm. A multi-turn absolute encoder with EnDat 22 reports the rotor position at 19 bit. A 11 Nm holding brake secures the load when the drive is switched off.

Net
€4,416.00
excl. VAT
Item FES-8215359
Manufacturer no. EMMH-AS-108-MA-HS-S1MB-T
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo servo motor EMMH-AS-108-MA-HS-S1MB-T is designed for 680 V and delivers 3.85 Nm nominal torque at 2000 1/min.

Benefits

  • Reserve for acceleration: peak torque 19 Nm at 3.85 Nm nominal torque
  • Multi-turn absolute encoder: EnDat 22, 19 bit, 4096 revolutions absolute
  • Holding brake: 11 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug M21x1, 15 pins
  • Hygienic design: IP69K, corrosion resistance class CRC 4, approved for direct food contact
  • Bearing service life: 20000 h under nominal conditions

Applications

IP69K and approval for direct food contact make the motor suitable for food and beverage machines with wet cleaning.

Technical data

Ambient temperature-30 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height3000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidity0 - 100%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat 2.2
Motor type to EN 60034-7IM B14, IM V18
Mounting positionAny
Degree of protectionIP69K
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torquebelow 1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out108C
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM21x1
Electrical connection 1, number of connections/cores15
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC4 - Very high corrosion stress, (except laser marking)
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodApproved for direct contact with food
Vibration resistanceAs per EN 60068-2-6
Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque5.9 Nm
Nominal torque3.85 Nm
Peak torque19 Nm
Nominal rotary speed2000 1/min
Maximum rotational speed7000 1/min
Maximum mechanical speed7000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor810 W
Continuous stall current6.5 A
Nominal motor current4.4 A
Peak current22.8 A
Motor constant0.89 Nm/A
Standstill torque constant0.92 Nm/A
Voltage constant, phase-to-phase59.5 mVmin
Phase-phase winding resistance1.03 Ohm
Phase-phase winding inductance5.3 mH
Winding longitudinal inductivity Ld (phase)2.4 mH
Winding cross inductivity Lq (phase)2.7 mH
Electric time constant5.2 ms
Thermal time constant82 min
Thermal resistance0.77 K/W
Measuring flange300 x 300 x 30 mm, steel
Mass moment of inertia of rotor3.57 kgcm²
Total mass moment of inertia of output4.3 kgcm²
Product weight8900 g
Permissible axial shaft load137 N
Permissible radial shaft load685 N
Rotor position sensorAbsolute encoder, multi-turn
rotor position sensor, manufacturer designationEQI 1331
rotor position sensor, absolute detectable revolutions4096
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range3.6 to 14 V
rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Brake holding torque11 Nm
Operating voltage DC for brake24 V
Brake current consumption0.57 A
Power consumption, brake13.6 W
Brake coil resistance42.1 Ohm
Brake coil inductivity2600 mH
Brake separation time60 ms
Brake closing time58 ms
DC brake response delay10 ms
Maximum brake no-load speed10000 1/min
Maximum friction per braking process910 J
Number of emergency stops per hour1
Total brake friction910 kJ
Mass moment of inertia of brake0.73 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 2
ManufacturerFesto
Hersteller-NrEMMH-AS-108-MA-HS-S1MB-T
EAN4052568788094
Zolltarifnummer85015220
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP69K
Temperature (max.)40
