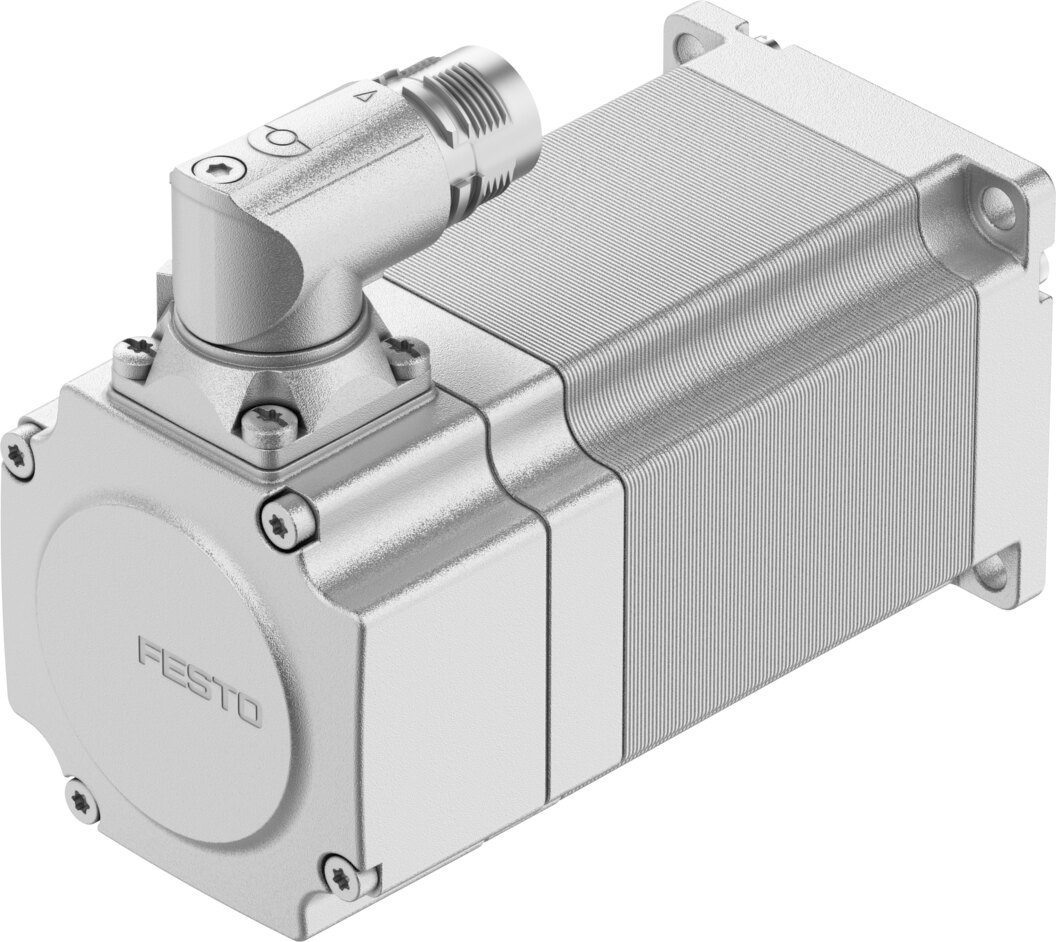

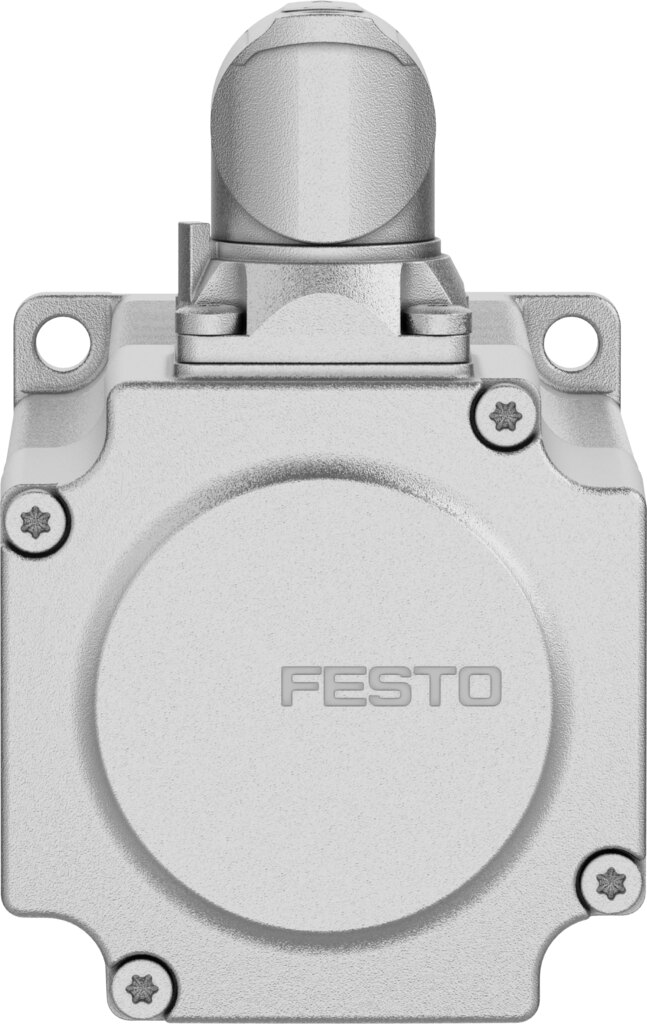

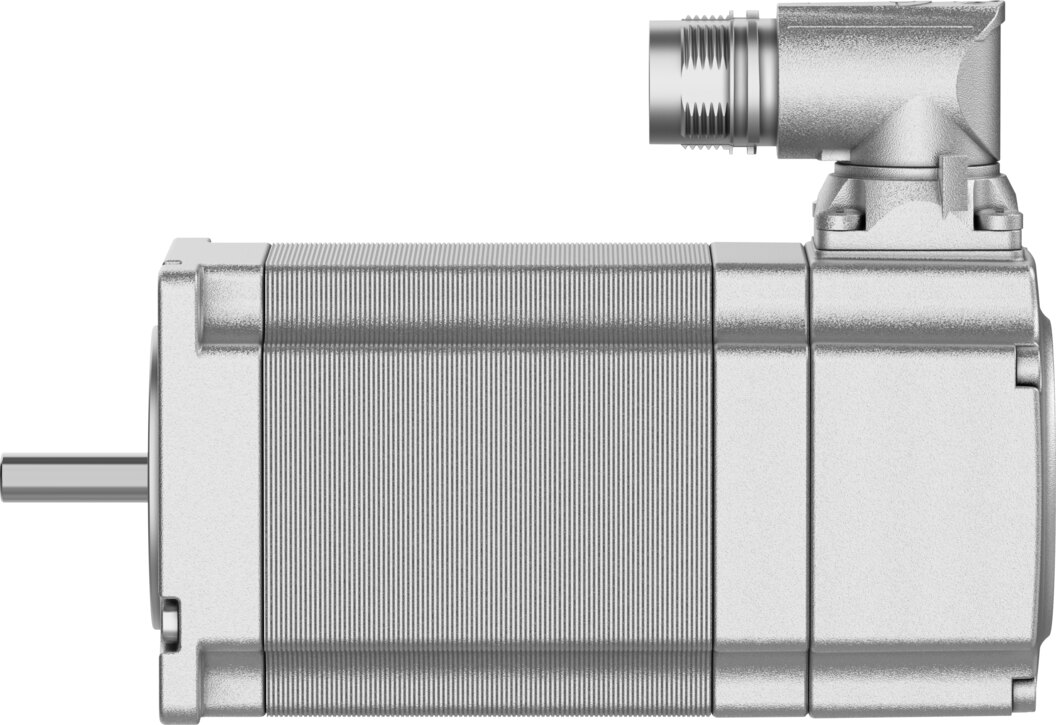

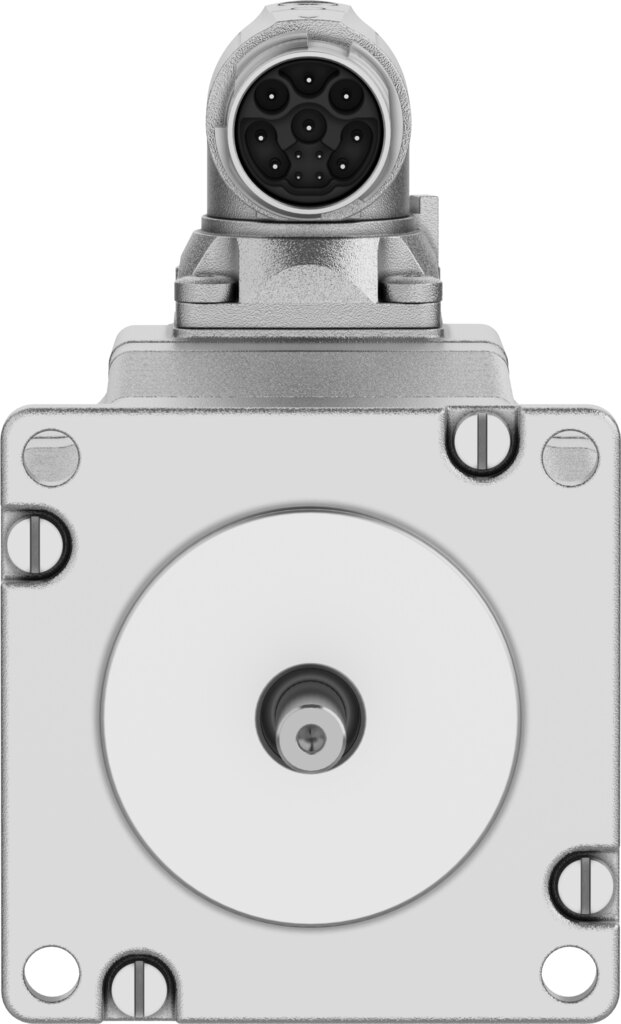

Stepper motor 48 V, 1.86 Nm holding torque, single-turn absolute encoder EMMT-ST-57-L-RS - Festo 8156180

Festo ✓ Original product Brand new

The stepper motor EMMT-ST-57-L-RS delivers 1.64 Nm nominal torque at 500 1/min and briefly reaches 2.1 Nm. An integrated single-turn absolute encoder with BiSS-C handles position control. Motor housing and connector are rated IP65. It is connected via a hybrid plug M17x0.75 with 12 pins.

Net
€321.45
excl. VAT
Item FES-8156180
Manufacturer no. EMMT-ST-57-L-RS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For positioning drives at 48 V, the stepper motor EMMT-ST-57-L-RS offers 1.64 Nm continuous nominal torque and peaks up to 2.1 Nm.

Benefits

  • Reserve for acceleration: peak torque 2.1 Nm at 1.64 Nm nominal torque
  • Single-turn absolute encoder: BiSS-C, 16 bit
  • Connection: hybrid plug M17x0.75, 12 pins
  • Degree of protection: IP40 at the shaft, IP65 for housing and connection components
  • Step angle: 1.8° at full step
  • Mass moment of inertia: 0.48 kgcm² total at output

Applications

The motor suits linear and rotary axes with interface code 57A. Temperature class B to EN 60034-1 and rating class S1 permit continuous duty at 1.64 Nm.

Technical data

Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidityNon-condensing
Conforms to standardIEC 60034
Temperature class as per EN 60034-1B
Maximum winding temperature130 °C
Rating class as per EN 60034-1S1
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP40 motor shaft, IP65 for motor housing, including connection technology
Interface code, motor out57A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM17x0.75
Electrical connection 1, number of connections/cores12
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Number of pole pairs50
Motor holding torque1.86 Nm
Nominal torque1.64 Nm
Peak torque2.1 Nm
Nominal rotary speed500 1/min
Maximum rotational speed1500 1/min
Maximum mechanical speed8000 1/min
Stepper angle for complete step1.8 deg
Stepping angle tolerance±5%
Nominal power rating of motor86 W
Continuous stall current6.1 A
Nominal motor current5.2 A
Peak current8 A
Motor constant0.32 Nm/A
Voltage constant, phase22.6 mVmin
Phase winding resistance0.26 Ohm
Phase winding inductance0.95 mH
Winding longitudinal inductivity Ld (phase)1.75 mH
Winding cross inductivity Lq (phase)0.95 mH
Electric time constant3.7 ms
Thermal time constant30 min
Thermal resistance1.3 K/W
Measuring flange200 x 200 x 15 mm, steel
Total mass moment of inertia of output0.48 kgcm²
Product weight1260 g
Permissible axial shaft load15 N
Permissible radial shaft load75 N
Rotor position sensorAbsolute encoder, single turn
rotor position sensor, manufacturer designationFesto iC-MHM
rotor position sensor, absolute detectable revolutions1
Rotor position encoder interfaceBiSS-C
Rotor position sensor, encoder measuring principlemagnetic
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range4.75 to 5.25 V
Rotor position encoder, sine/cosine periods per revolution2
rotor position sensor, position values per revolution65536
Rotor position transducer resolution16 bit
rotor position sensor, system accuracy of angle measurement-540 to 540 arcsec
Mean time to failure (MTTF), subcomponent106 years, rotor position encoder
Weight1.4 kg
ManufacturerFesto
Hersteller-NrEMMT-ST-57-L-RS
EAN4052568639686
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
