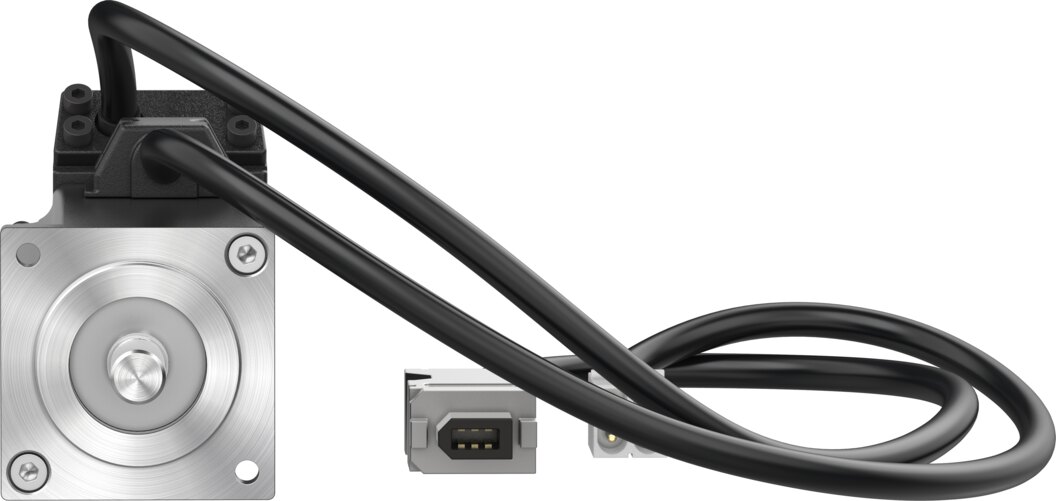

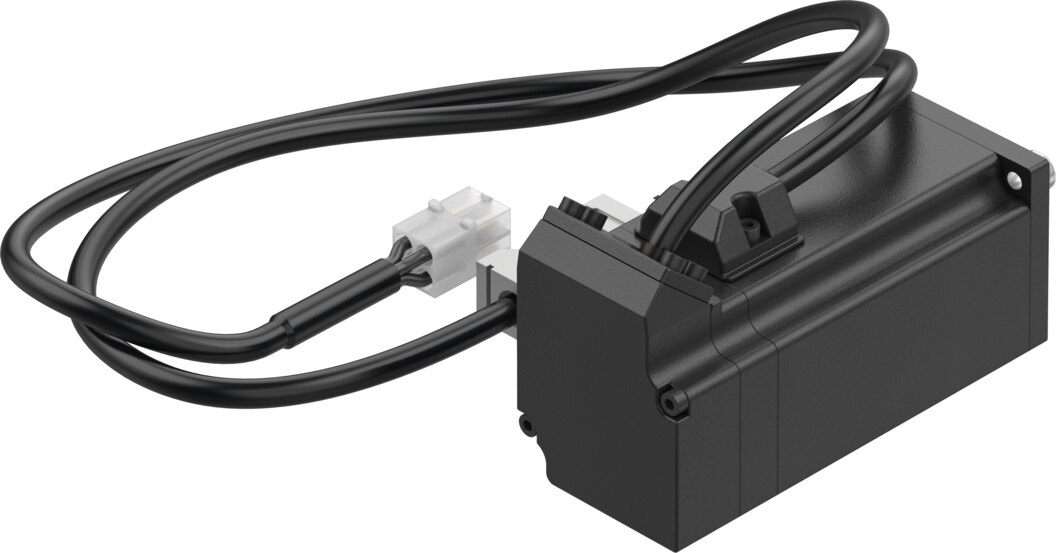

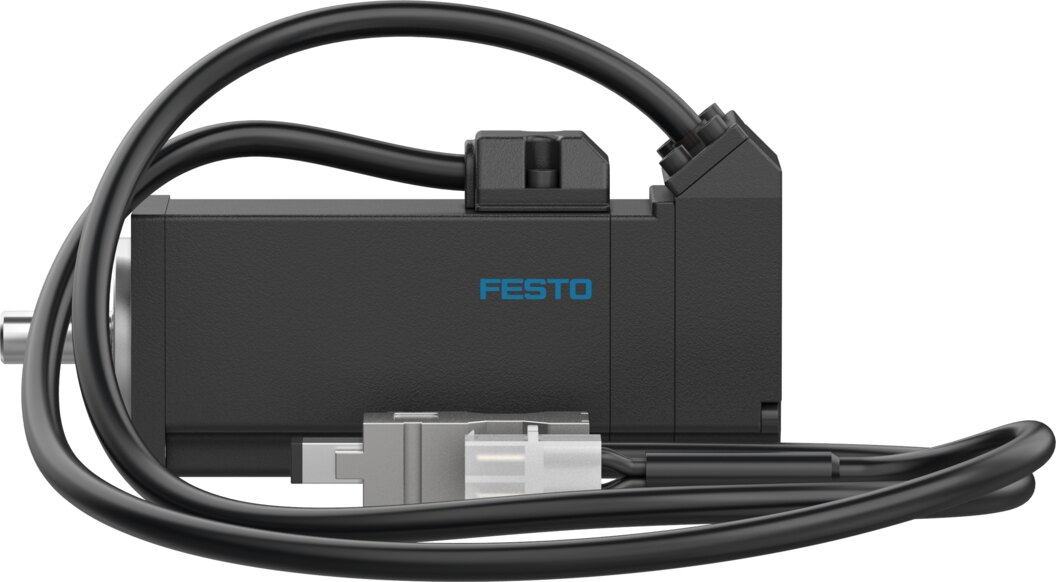

Servo motor 100 W, 0.352 Nm standstill torque, multi-turn encoder EMMB-AS-40-01-S30M - Festo 8097167

Festo ✓ Original product Brand new

With 0.352 Nm standstill torque and 0.96 Nm peak torque, the Festo EMMB-AS-40-01-S30M holds and accelerates loads precisely. Rated power 100 W at 3000 1/min, designed for 300 V DC. A multi-turn absolute encoder (Nikon A-Format) captures the rotor position.

Net
€555.67
excl. VAT
Item FES-8097167
Manufacturer no. EMMB-AS-40-01-S30M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

0.32 Nm nominal torque at 3000 1/min: the Festo EMMB-AS-40-01-S30M servo motor delivers 100 W rated power to the axis. Total moment of inertia is 0.059 kgcm².

Benefits

  • Peak torque 0.96 Nm for short cycles and acceleration phases
  • Speed up to 6000 1/min, nominal speed 3000 1/min
  • Multi-turn absolute encoder with 65536 absolute revolutions, no homing run after power-up
  • Degree of protection IP65, ambient temperature -15 to 40 °C

Application

For electric axes, handling systems and rotary indexing tables. The EMMB-AS-40-01-S30M runs on a servo drive for 300 V DC link voltage.

Technical data

TypeEMMB-AS-40-01-S30M
Festo part no.8097167
Weight0.8 kg
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 60°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 55 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via Nikon A format
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP65
Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal, IP65 for motor housing without connection technology
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Bearing lifetime under nominal conditions20000 h
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemConnection pattern RE
Electrical connection 1, number of connections/cores6
Electrical connection 1, connection pattern00995792
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Approvalc UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC300 V
Nominal voltage DC300 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque0.352 Nm
Nominal torque0.32 Nm
Peak torque0.96 Nm
Nominal rotary speed3000 1/min
Maximum rotational speed6000 1/min
Maximum mechanical speed10000 1/min
Nominal power rating of motor100 W
Continuous stall current1.43 A
Nominal motor current1.3 A
Peak current3.9 A
Motor constant0.268 Nm/A
Voltage constant, phase-to-phase16.2 mVmin
Phase-phase winding resistance7.9 Ohm
Phase-phase winding inductance10.5 mH
Electric time constant1.33 ms
Measuring flange175 x 200 x 10 mm, aluminium
Total mass moment of inertia of output0.059 kgcm²
Product weight570 g
Permissible axial shaft load60 N
Permissible radial shaft load120 N
Rotor position sensorAbsolute encoder, multi-turn
Rotor position sensor, manufacturer designationMAR-MX50AHN00
Rotor position sensor, absolute detectable revolutions65536
Rotor position encoder interfaceNikon A-format
Rotor position sensor, encoder measuring principleOptical
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range4.75 to 5.25 V
Rotor position sensor, position values per revolution1048576
Rotor position transducer resolution20 bit
Rotor position sensor, system accuracy of angle measurement-120 to 120 arcsec
ManufacturerFesto
Hersteller-NrEMMB-AS-40-01-S30M
EAN4052568458942
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungMultiturn-Absolutwertgeber, ohne Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
Operating voltage300 V DC
Protection ratingIP65
Temperature (max.)40
