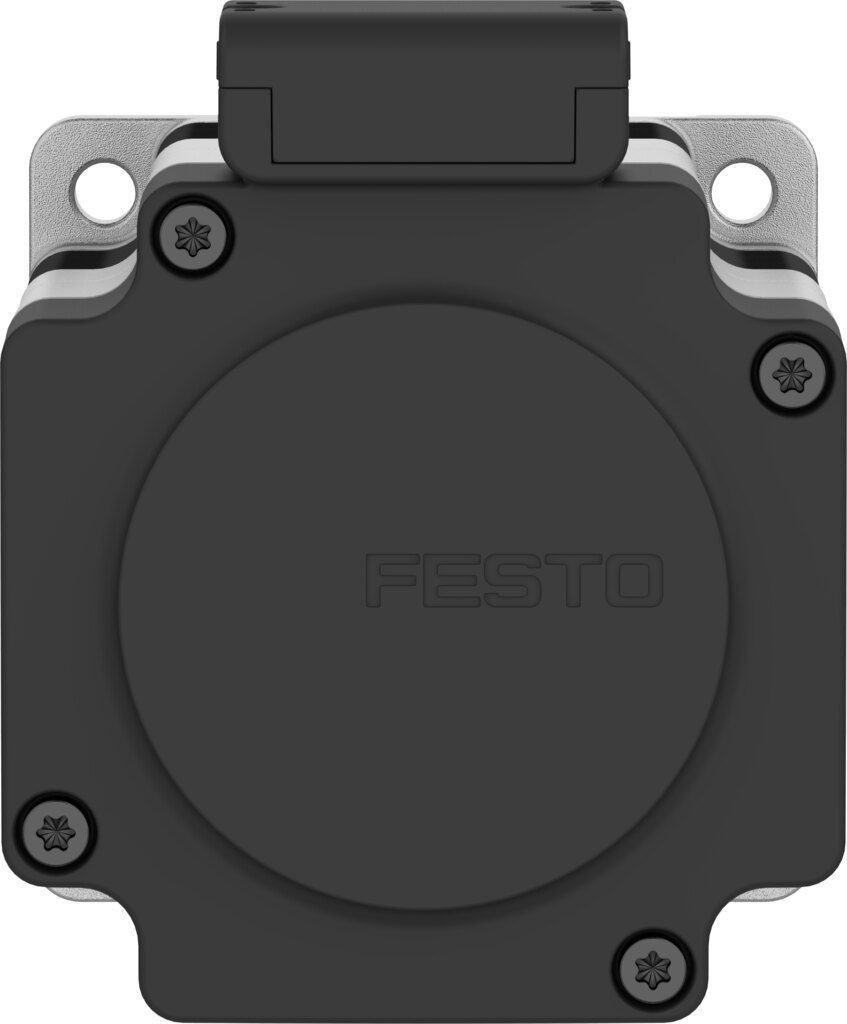

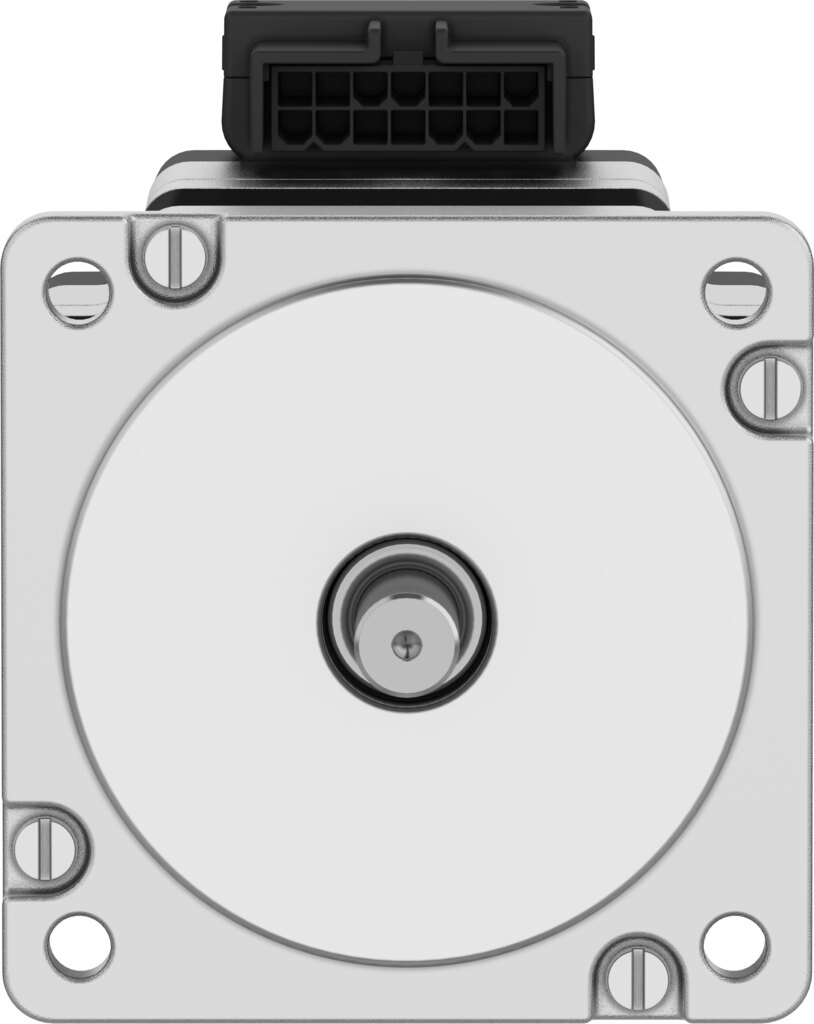

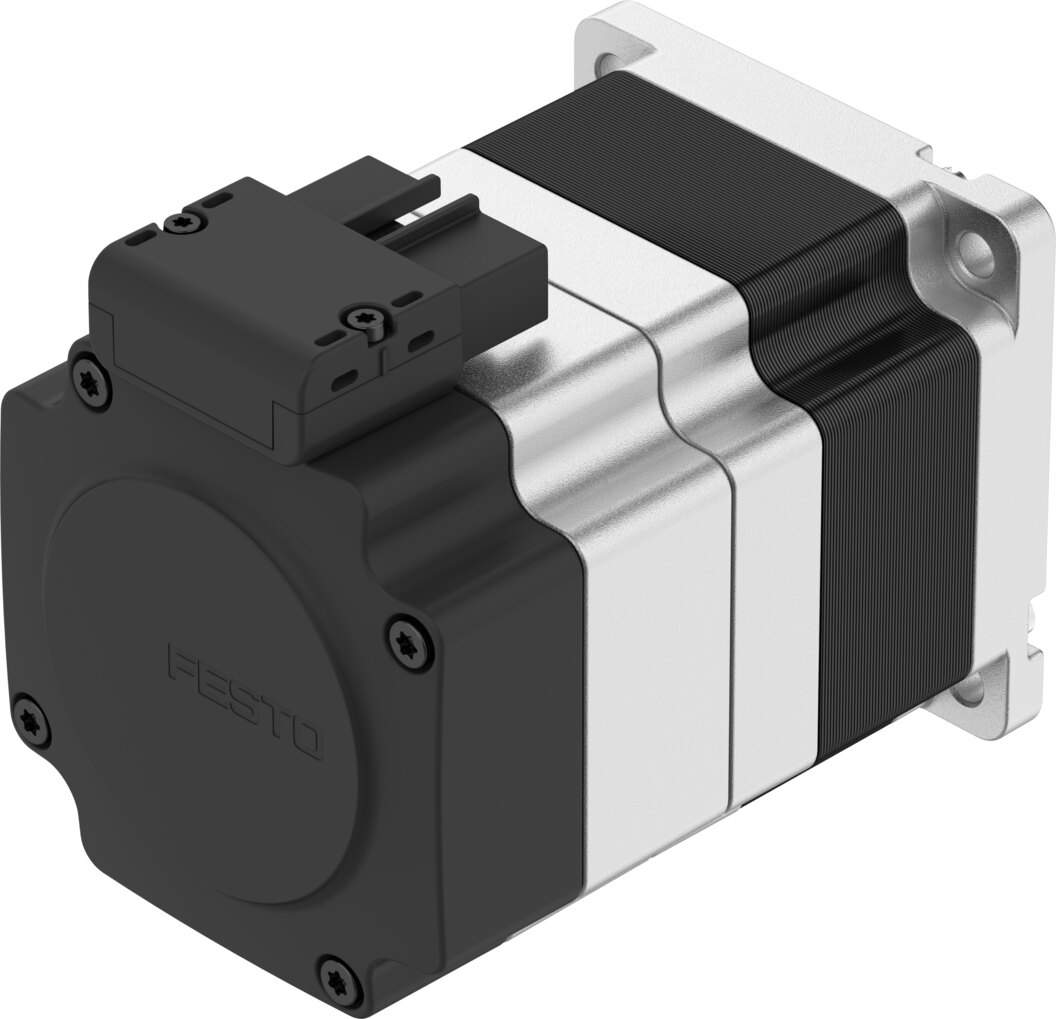

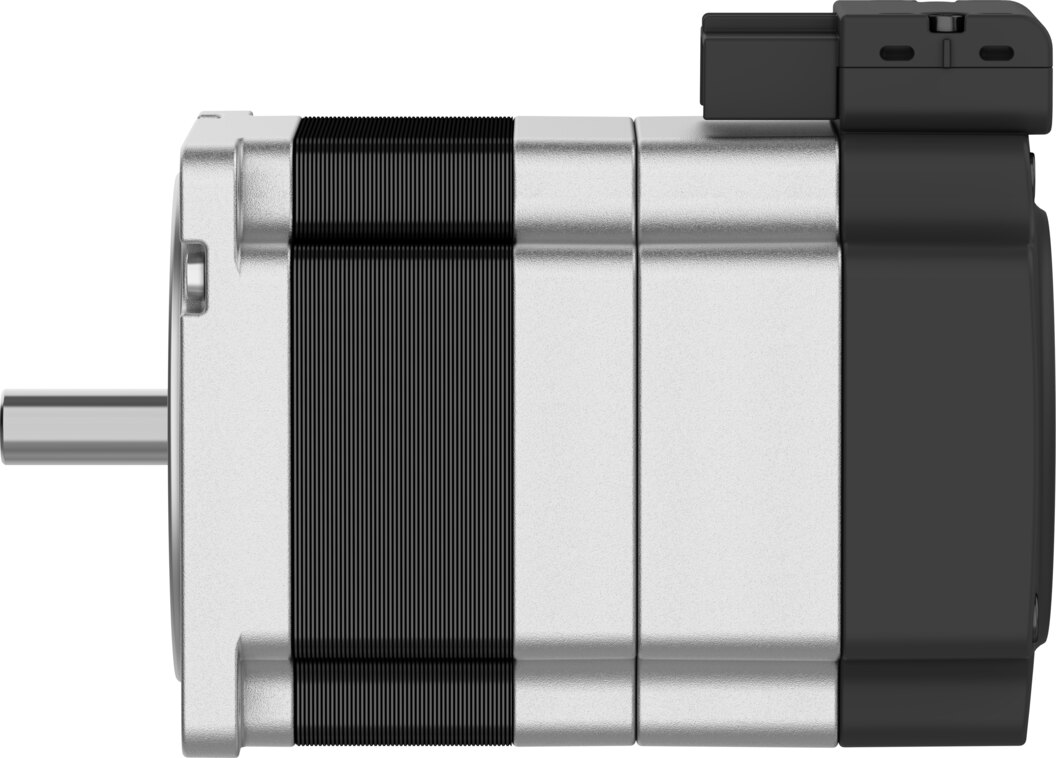

Stepper motor 48 V, 2.4 Nm holding torque, holding brake EMMB-ST-87-S-SB - Festo 8156152

Festo ✓ Original product Brand new

Stepper motor EMMB-ST-87-S-SB for 48 V DC link voltage with 2.4 Nm holding torque and up to 2.7 Nm peak torque. The full-step angle is 1.8°. The integrated 24 V holding brake holds 4.26 Nm at standstill. Degree of protection IP20. At 48 V nominal operating voltage the nominal current is 6.9 A.

Net
€456.01
excl. VAT
Item FES-8156152
Manufacturer no. EMMB-ST-87-S-SB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For positioning drives at 48 V, the stepper motor EMMB-ST-87-S-SB offers 2.4 Nm holding torque and peaks up to 2.7 Nm.

Benefits

  • Reserve for acceleration: peak torque 2.7 Nm at 2.4 Nm holding torque
  • Holding brake: 4.26 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug with connection pattern L10, 14 pins
  • Step angle: 1.8° at full step
  • Mass moment of inertia: 1.11 kgcm² total at output

Applications

The motor suits linear and rotary axes with interface code 87A. Temperature class B to EN 60034-1 and rating class S1 permit continuous duty.

Technical data

Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidityNon-condensing
Conforms to standardIEC 60034
Temperature class as per EN 60034-1B
Maximum winding temperature130 °C
Rating class as per EN 60034-1S1
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP20
Note on degree of protectionIP40 motor shaft
Interface code, motor out87A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemConnection pattern L10
Electrical connection 1, number of connections/cores14
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Number of pole pairs50
Motor holding torque2.4 Nm
Peak torque2.7 Nm
Maximum rotational speed2200 1/min
Maximum mechanical speed7000 1/min
Stepper angle for complete step1.8 deg
Stepping angle tolerance±5%
Continuous stall current9.5 A
Nominal motor current6.9 A
Peak current12 A
Motor constant0.24 Nm/A
Voltage constant, phase15.4 mVmin
Phase winding resistance0.13 Ohm
Phase winding inductance0.35 mH
Winding longitudinal inductivity Ld (phase)0.56 mH
Winding cross inductivity Lq (phase)0.35 mH
Electric time constant1.75 ms
Thermal time constant37 min
Thermal resistance0.91 K/W
Measuring flange250 x 250 x 15 mm, steel
Total mass moment of inertia of output1.11 kgcm²
Product weight2720 g
Permissible axial shaft load60 N
Permissible radial shaft load220 N
Brake holding torque4.26 Nm
Operating voltage DC for brake24 V
Brake current consumption0.49 A
Power consumption, brake12 W
Brake coil resistance49.2 Ohm
Brake coil inductivity110 mH
Brake separation time44 ms
Brake closing time110 ms
DC brake response delay30 ms
Maximum brake no-load speed7000 1/min
Maximum friction per braking process14000 J
Number of emergency stops per hour1
Mass moment of inertia of brake0.11 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
ManufacturerFesto
Hersteller-NrEMMB-ST-87-S-SB
EAN4052568639402
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
Protection ratingIP20
Temperature (max.)40
