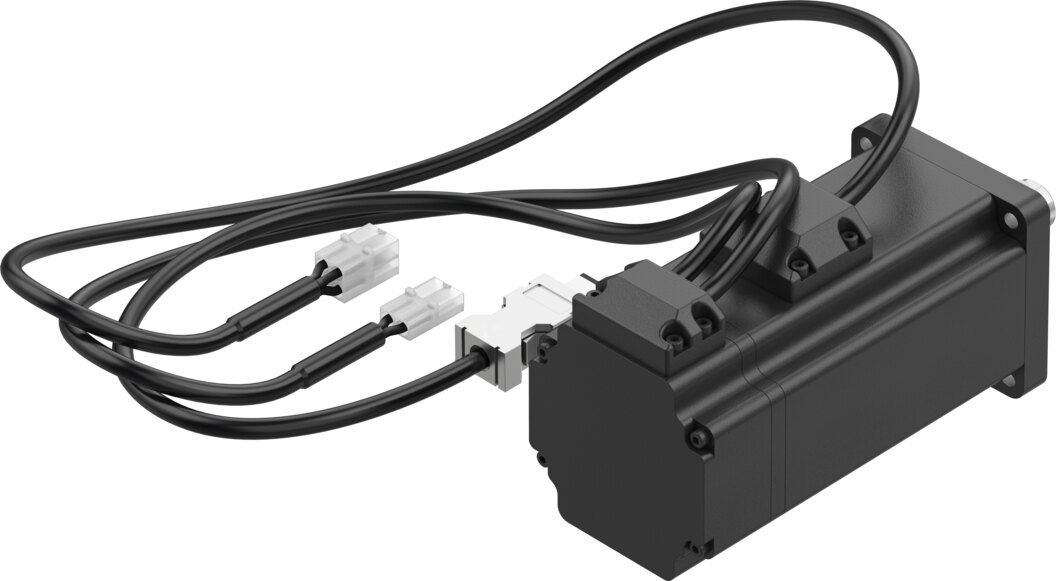

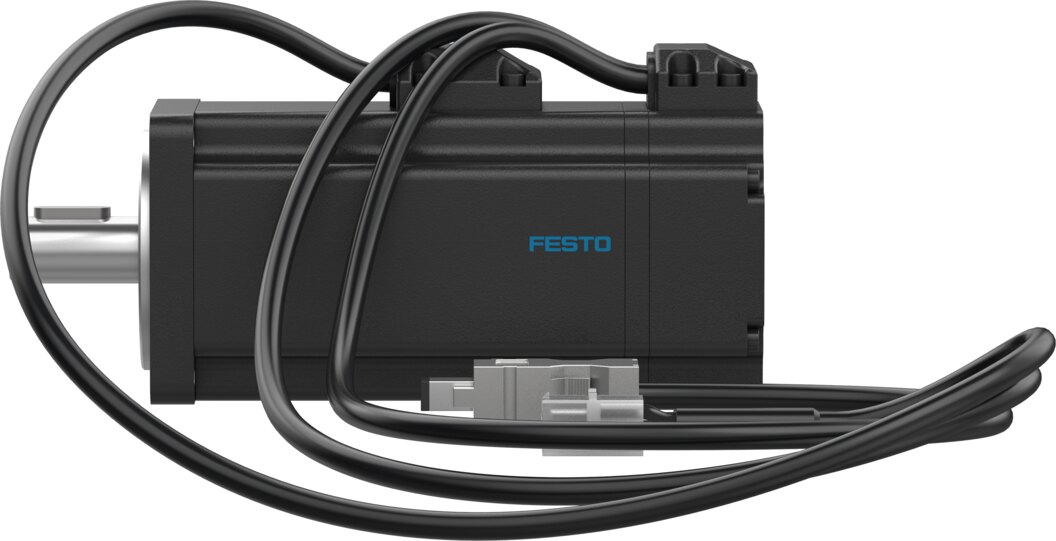

Servo motor 200 W, 0.7 Nm standstill torque, holding brake, multi-turn encoder EMMB-AS-60-02-K-S30MB - Festo 8097178

Festo ✓ Original product Brand new

The EMMB-AS-60-02-K-S30MB servo motor delivers 0.64 Nm nominal torque and up to 1.92 Nm for short acceleration phases. Rated power 200 W at 3000 1/min, designed for 300 V DC. A multi-turn absolute encoder (Nikon A-Format) captures the rotor position, the holding brake holds 1.3 Nm.

Net
€862.75
excl. VAT
Item FES-8097178
Manufacturer no. EMMB-AS-60-02-K-S30MB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo EMMB-AS-60-02-K-S30MB servo motor: 200 W rated power, 0.64 Nm nominal torque, up to 1.92 Nm in peak operation. Total moment of inertia is 0.234 kgcm².

Benefits

  • Peak torque 1.92 Nm for short cycles and acceleration phases
  • Speed up to 6000 1/min, nominal speed 3000 1/min
  • Multi-turn absolute encoder with 65536 absolute revolutions, no homing run after power-up
  • Holding brake 1.3 Nm, operating voltage 24 V DC
  • Degree of protection IP65, ambient temperature -15 to 40 °C

Application

Typical uses are positioning axes, feed systems and pick-and-place units. Before mounting, match the interface and shaft loads of the EMMB-AS-60-02-K-S30MB to the mechanics.

Technical data

TypeEMMB-AS-60-02-K-S30MB
Festo part no.8097178
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 60°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 55 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via Nikon A format
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP65
Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal, IP65 for motor housing without connection technology
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Bearing lifetime under nominal conditions20000 h
Featherkey shaft typeDIN 6885, A 5 x 5 x 16
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemConnection pattern RE
Electrical connection 1, number of connections/cores6
Electrical connection 1, connection pattern00995792
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Approvalc UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC300 V
Nominal voltage DC300 V
Type of winding switchStar inside
Number of pole pairs3
Standstill torque0.7 Nm
Nominal torque0.64 Nm
Peak torque1.92 Nm
Nominal rotary speed3000 1/min
Maximum rotational speed6000 1/min
Maximum mechanical speed10000 1/min
Nominal power rating of motor200 W
Continuous stall current1.5 A
Nominal motor current1.4 A
Peak current4.2 A
Motor constant0.48 Nm/A
Voltage constant, phase-to-phase29 mVmin
Phase-phase winding resistance11.2 Ohm
Phase-phase winding inductance20.9 mH
Electric time constant1.87 ms
Measuring flange255 x 255 x 8 mm, aluminium
Total mass moment of inertia of output0.234 kgcm²
Product weight1400 g
Permissible axial shaft load90 N
Permissible radial shaft load180 N
Rotor position sensorAbsolute encoder, multi-turn
Rotor position sensor, manufacturer designationMAR-MX50AHN00
Rotor position sensor, absolute detectable revolutions65536
Rotor position encoder interfaceNikon A-format
Rotor position sensor, encoder measuring principleOptical
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range4.75 to 5.25 V
Rotor position sensor, position values per revolution1048576
Rotor position transducer resolution20 bit
Rotor position sensor, system accuracy of angle measurement-120 to 120 arcsec
Brake holding torque1.3 Nm
Operating voltage DC for brake24 V
Power consumption, brake7.2 W
ManufacturerFesto
Hersteller-NrEMMB-AS-60-02-K-S30MB
EAN4052568459055
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungMultiturn-Absolutwertgeber, mit Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
Operating voltage300 V DC
Protection ratingIP65
Temperature (max.)40
