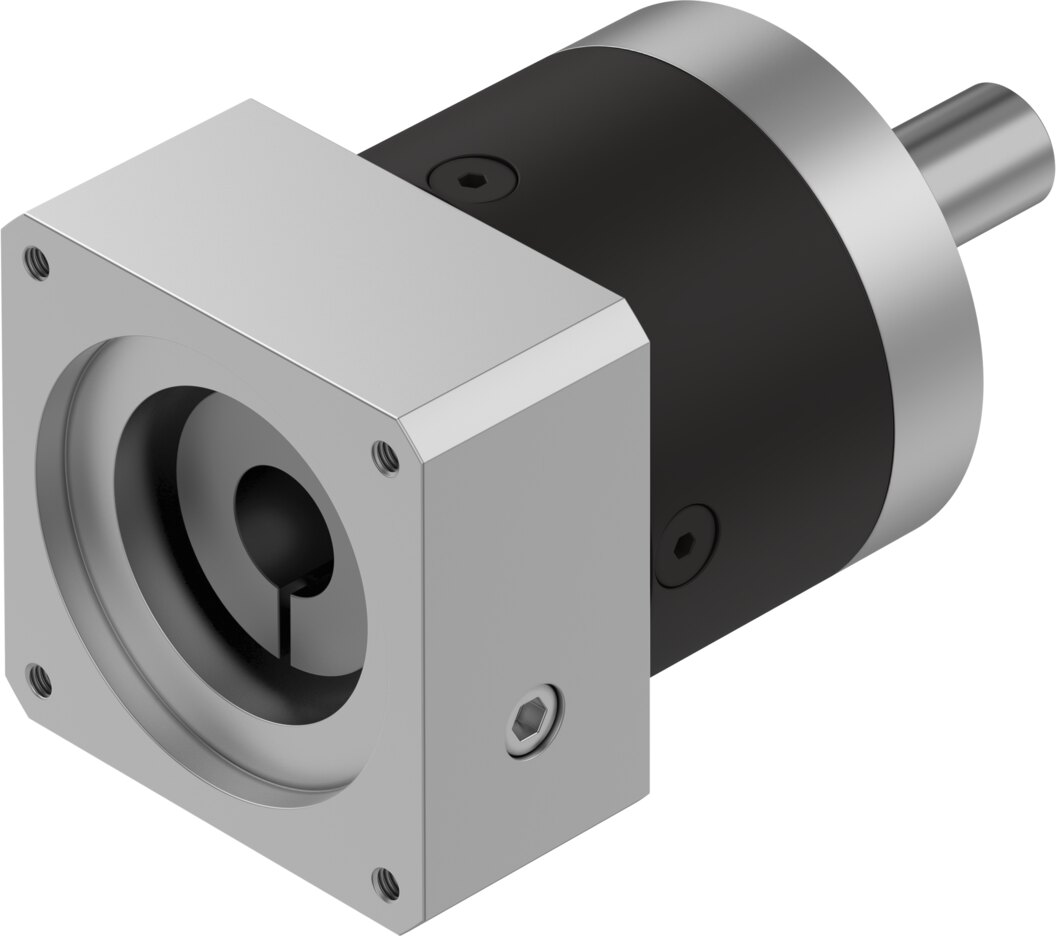

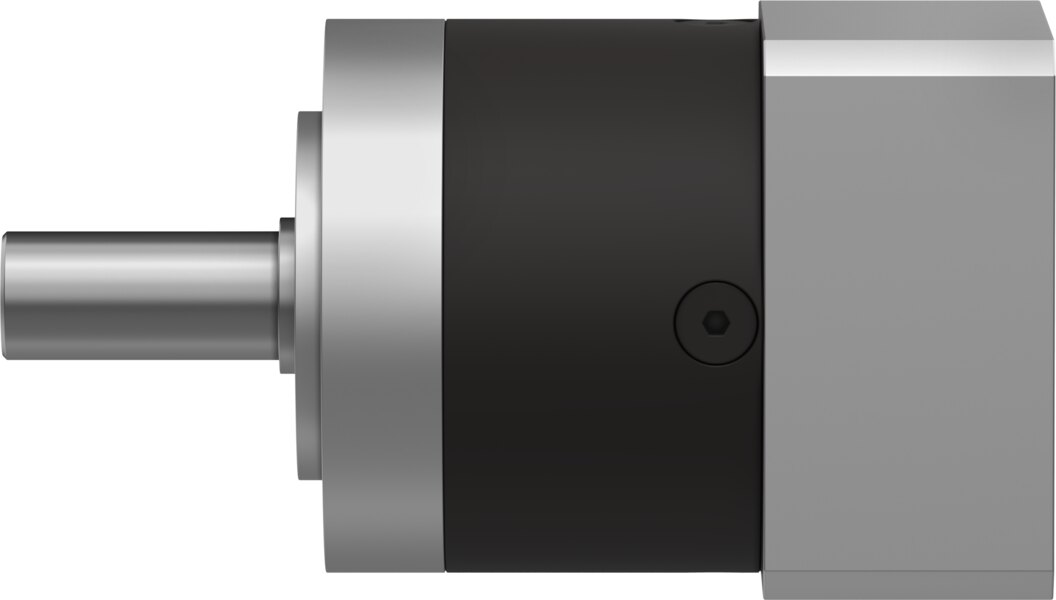

Planetary gear unit 8:1, 18 Nm continuous output torque, flange 60 mm, motor 60 mm EMGA-60-P-G8-EAS-60 - Festo 8141735
18 Nm continuous output torque, 29 Nm briefly: the EMGA-60-P-G8-EAS-60 planetary gear unit multiplies motor torque at a ratio of 8:1. Torsional backlash 0.17°, efficiency up to 97 %. Motor side flange 60 mm with interface 60P, output side 60 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Planetary gear unit EMGA-60-P-G8-EAS-60: ratio 8:1, torsional backlash 0.17°, 60 mm flange on the output side.
Benefits
- Ratio 8:1, continuous output torque 18 Nm
- Max. output torque 29 Nm for start-up and braking
- Torsional backlash 0.17° for repeatable positions
- Efficiency up to 97 %
- Torsional stiffness 2.4 Nm/arcmin
- Input speed up to 13000 1/min
Application
For servo and stepper motors on electric axes when more torque or better inertia matching is needed. Motor flange 60 mm, interface 60P.
Technical data
| Type | EMGA-60-P-G8-EAS-60 |
|---|---|
| Festo part no. | 8141735 |
| Weight | 1 kg |
| Gear unit flange size | 60 mm |
| Motor flange size | 60 mm |
| Torsional backlash | 0.17° |
| Type of gear unit | Planetary gear set |
| Gear unit ratio | 8:1 |
| Maximum drive speed | 13000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 18 Nm |
| Mass moment of inertia of gear unit | 0.088 kgcm² |
| Maximum output torque | 29 Nm |
| Maximum efficiency | 97 % |
| Torsional rigidity | 2.4 Nm/arcmin |
| Product weight | 900 g |
| Permissible axial shaft load | 500 N |
| Permissible radial shaft load | 400 N |
| Gear unit interface, output shaft | 60H |
| Gear unit interface, drive shaft | 60P |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-60-P-G8-EAS-60 |
| EAN | 4052568565145 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Planetengetriebe 8:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
