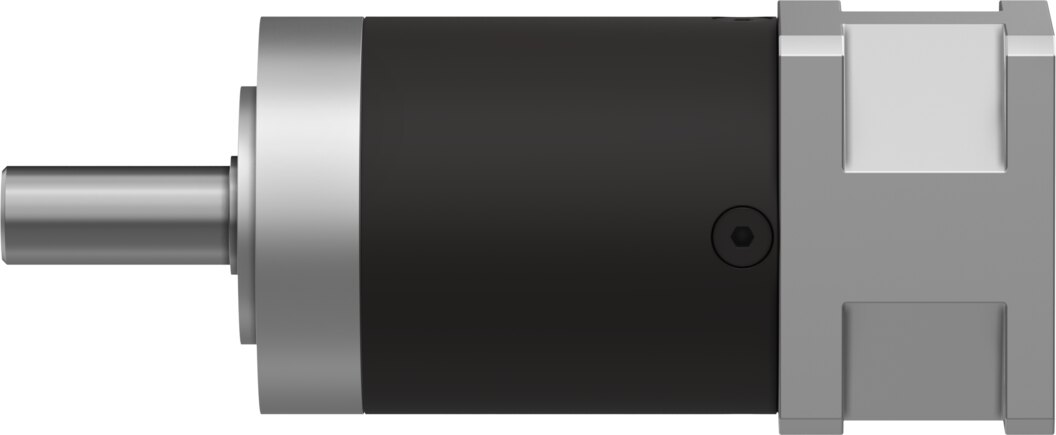

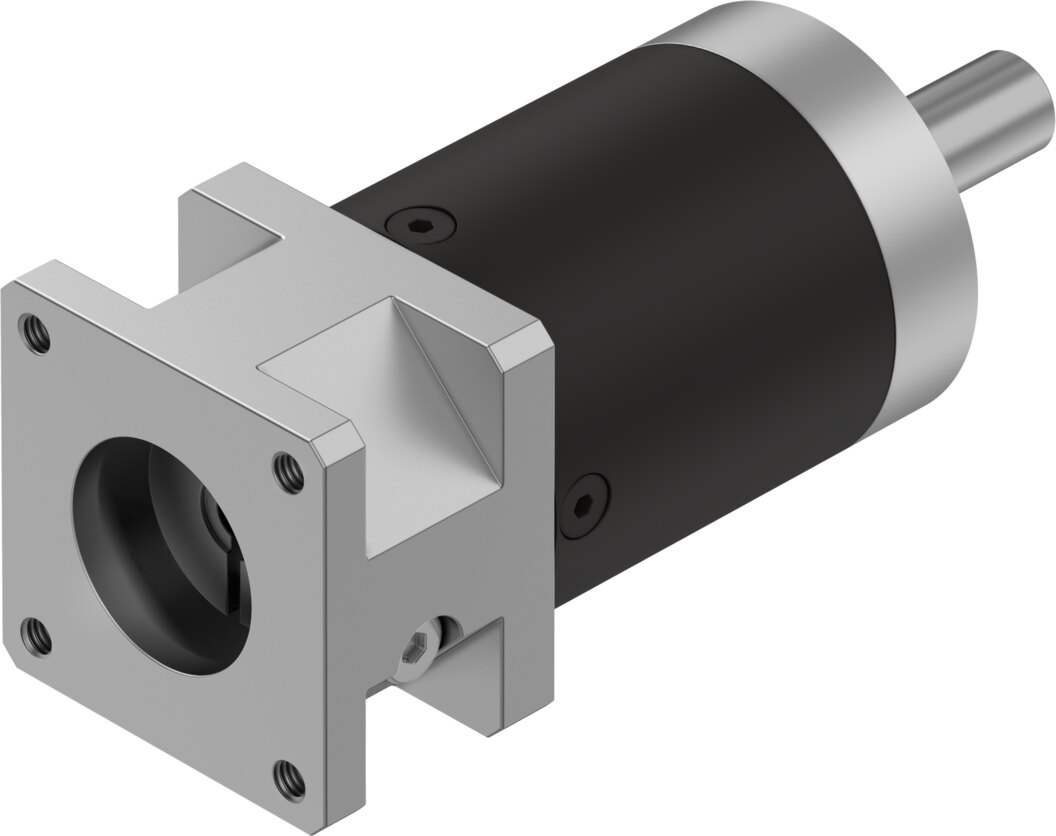

Planetary gear unit 12:1, 20 Nm continuous output torque, flange 40 mm, motor 42 mm EMGA-40-P-G12-SST-42 - Festo 8141763
With a 12:1 ratio and 20 Nm continuous output torque, the Festo EMGA-40-P-G12-SST-42 matches motor power to the load. Torsional backlash 0.31°, efficiency up to 96 %. Motor side flange 42 mm with interface 42A, output side 40 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Planetary gear unit EMGA-40-P-G12-SST-42: ratio 12:1, torsional backlash 0.31°, 40 mm flange on the output side.
Benefits
- Ratio 12:1, continuous output torque 20 Nm
- Max. output torque 32 Nm for start-up and braking
- Torsional backlash 0.31° for repeatable positions
- Efficiency up to 96 %
- Torsional stiffness 1 Nm/arcmin
- Input speed up to 18000 1/min
Application
The EMGA-40-P-G12-SST-42 reduces speed, multiplies torque by a factor of 12 and improves the inertia ratio between load and motor.
Technical data
| Type | EMGA-40-P-G12-SST-42 |
|---|---|
| Festo part no. | 8141763 |
| Weight | 0.46 kg |
| Gear unit flange size | 40 mm |
| Motor flange size | 42 mm |
| Torsional backlash | 0.31° |
| Type of gear unit | Planetary gear set |
| Gear unit ratio | 12:1 |
| Maximum drive speed | 18000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 20 Nm |
| Mass moment of inertia of gear unit | 0.026 kgcm² |
| Maximum output torque | 32 Nm |
| Maximum efficiency | 96 % |
| Torsional rigidity | 1 Nm/arcmin |
| Product weight | 450 g |
| Gear unit interface, output shaft | 40G |
| Gear unit interface, drive shaft | 42A |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-40-P-G12-SST-42 |
| EAN | 4052568565398 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Planetengetriebe 12:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
