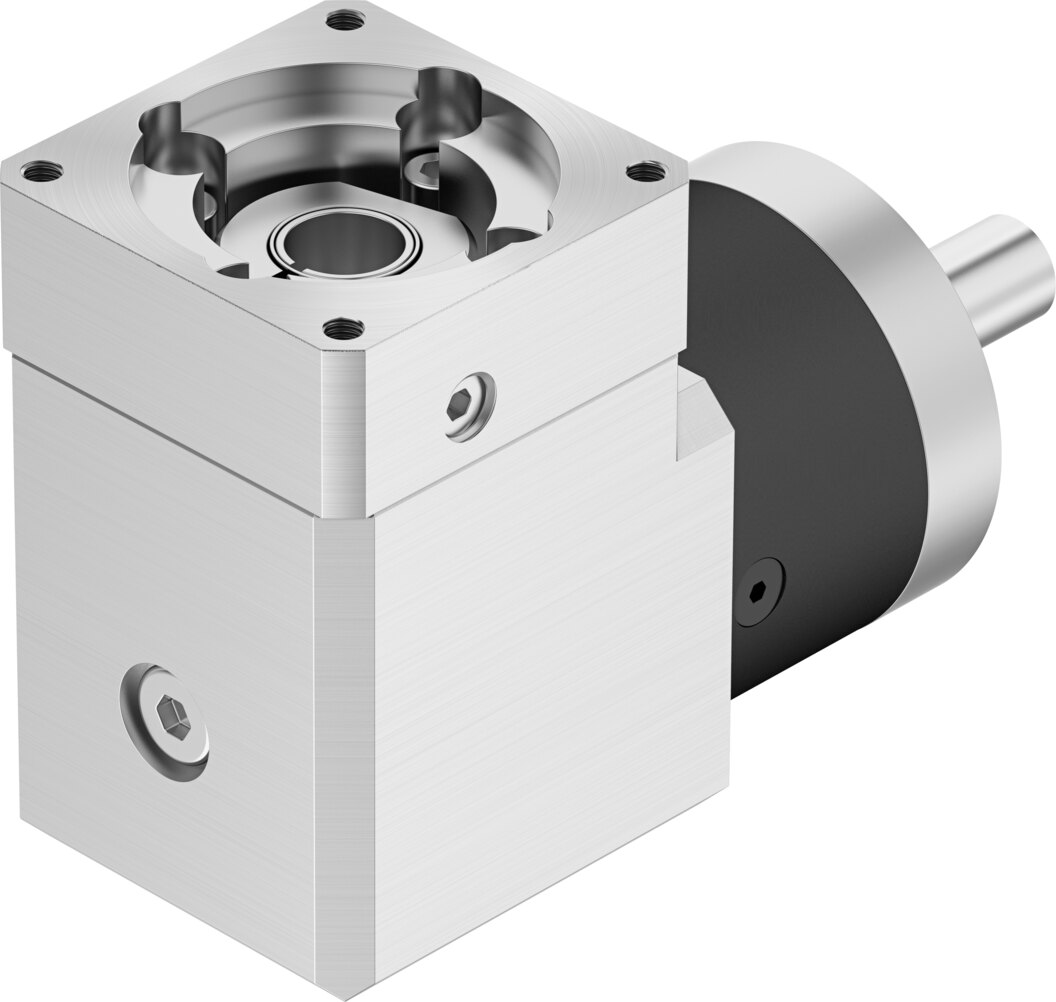

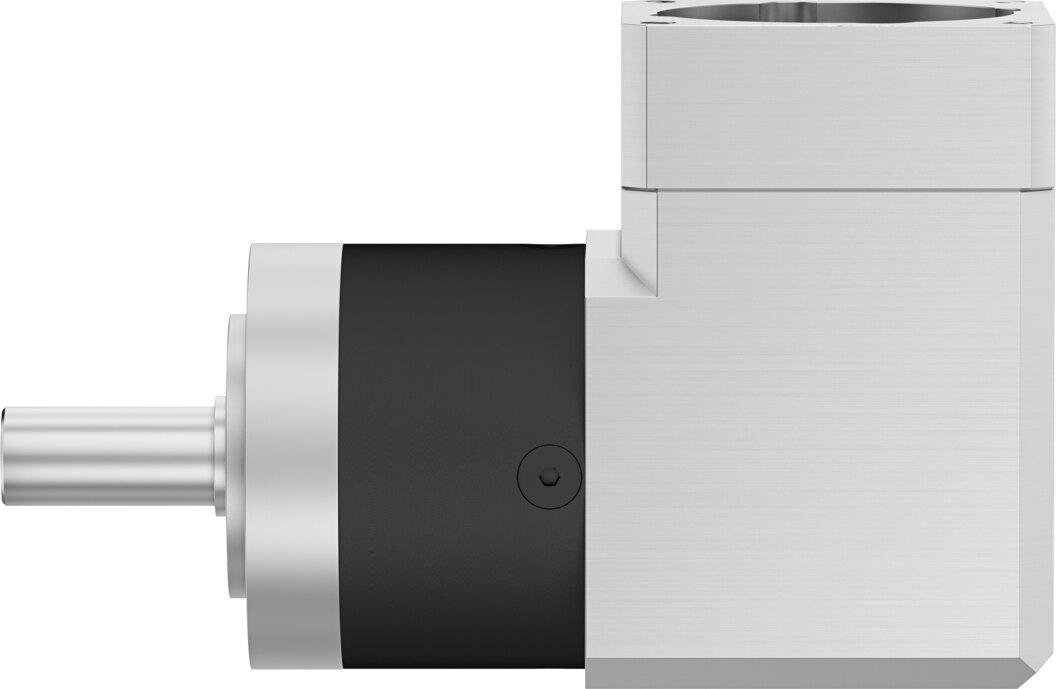

Right-angle gear unit 5:1, 24 Nm continuous output torque, flange 60 mm, motor 60 mm EMGA-60-A-G5-60P - Festo 8085345

Festo ✓ Original product Brand new

The EMGA-60-A-G5-60P right-angle gear unit reduces motor speed at a ratio of 5:1 and transmits 24 Nm continuously. Torsional backlash 0.27°, efficiency up to 95 %. Motor side flange 60 mm with interface 60P, output side 60 mm.

Net
€681.64
excl. VAT
Item FES-8085345
Manufacturer no. EMGA-60-A-G5-60P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

24 Nm continuously at the output with a 5:1 ratio: the Festo EMGA-60-A-G5-60P right-angle gear unit sits between motor and axis.

Benefits

  • Ratio 5:1, continuous output torque 24 Nm
  • Max. output torque 38 Nm for start-up and braking
  • Torsional backlash 0.27° for repeatable positions
  • Efficiency up to 95 %
  • Torsional stiffness 1.9 Nm/arcmin
  • Input speed up to 13000 1/min

Application

The right-angle gear unit turns the drive by 90° and saves installation space in the axis direction. Before ordering, check flange 60 mm and interface 60P against the motor.

Technical data

TypeEMGA-60-A-G5-60P
Festo part no.8085345
Weight1.8 kg
Gear unit flange size60 mm
Motor flange size60 mm
Torsional backlash0.27°
Type of gear unitRight-angle gear unit
Gear unit ratio5:1
Maximum drive speed13000 1/min
Operating temperature of gear unit-25 to 90 °C
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque24 Nm
Mass moment of inertia of gear unit0.257 kgcm²
Maximum output torque38 Nm
Maximum efficiency95 %
Torsional rigidity1.9 Nm/arcmin
Product weight1700 g
Permissible axial shaft load500 N
Permissible radial shaft load400 N
Gear unit interface, output shaft60G
Gear unit interface, drive shaft60P
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEMGA-60-A-G5-60P
EAN4052568450908
Zolltarifnummer84834090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungWinkelgetriebe 5:1
SeriesEMGA
Protection ratingIP54
Temperature (max.)90
