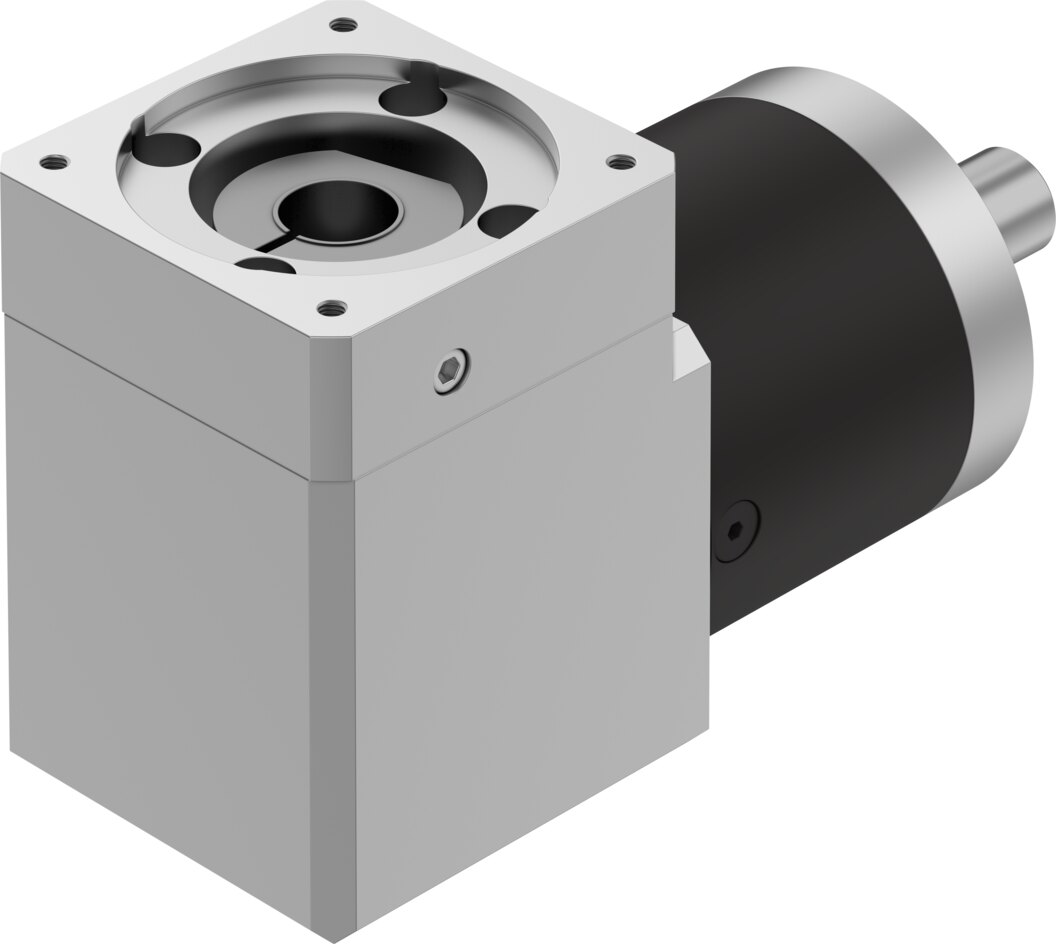

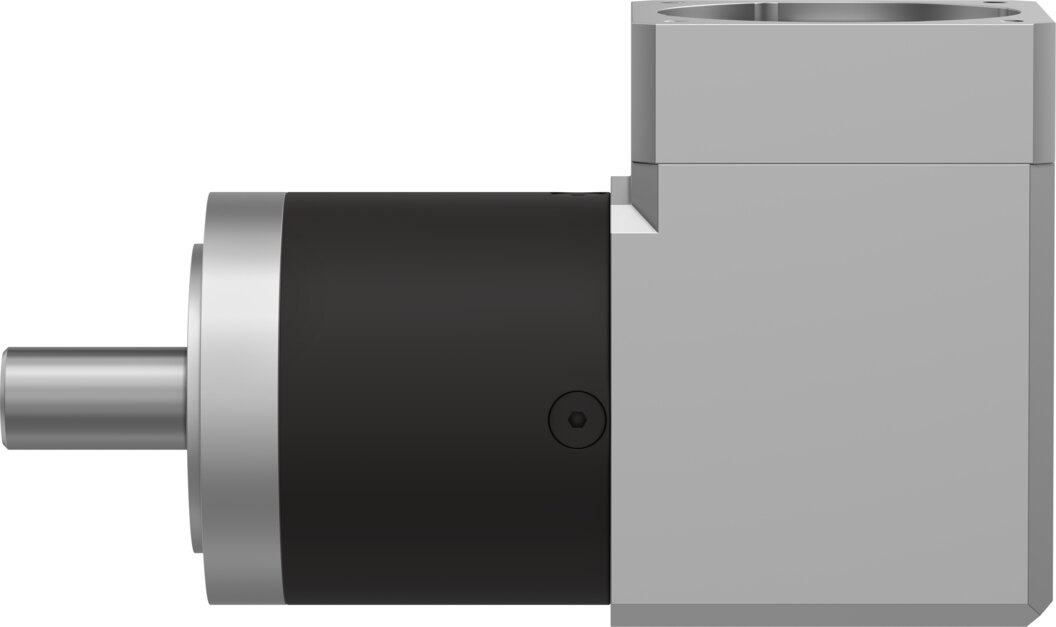

Right-angle gear unit 20:1, 120 Nm continuous output torque, flange 80 mm, motor 80 mm EMGA-80-A-G20-80P - Festo 8141746
With a 20:1 ratio and 120 Nm continuous output torque, the Festo EMGA-80-A-G20-80P matches motor power to the load. Torsional backlash 0.25°, efficiency up to 93 %. Motor side flange 80 mm with interface 80P, output side 80 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Right-angle gear unit EMGA-80-A-G20-80P: ratio 20:1, torsional backlash 0.25°, 80 mm flange on the output side.
Benefits
- Ratio 20:1, continuous output torque 120 Nm
- Max. output torque 192 Nm for start-up and braking
- Torsional backlash 0.25° for repeatable positions
- Efficiency up to 93 %
- Torsional stiffness 5.1 Nm/arcmin
- Input speed up to 7000 1/min
Application
The right-angle gear unit turns the drive by 90° and saves installation space in the axis direction. Before ordering, check flange 80 mm and interface 80P against the motor.
Technical data
| Type | EMGA-80-A-G20-80P |
|---|---|
| Festo part no. | 8141746 |
| Weight | 4.5 kg |
| Gear unit flange size | 80 mm |
| Motor flange size | 80 mm |
| Torsional backlash | 0.25° |
| Type of gear unit | Right-angle gear unit |
| Gear unit ratio | 20:1 |
| Maximum drive speed | 7000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 120 Nm |
| Mass moment of inertia of gear unit | 1.013 kgcm² |
| Maximum output torque | 192 Nm |
| Maximum efficiency | 93 % |
| Torsional rigidity | 5.1 Nm/arcmin |
| Product weight | 5000 g |
| Permissible axial shaft load | 1000 N |
| Permissible radial shaft load | 750 N |
| Gear unit interface, output shaft | 80G |
| Gear unit interface, drive shaft | 80P |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-80-A-G20-80P |
| EAN | 4052568565251 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Winkelgetriebe 20:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
