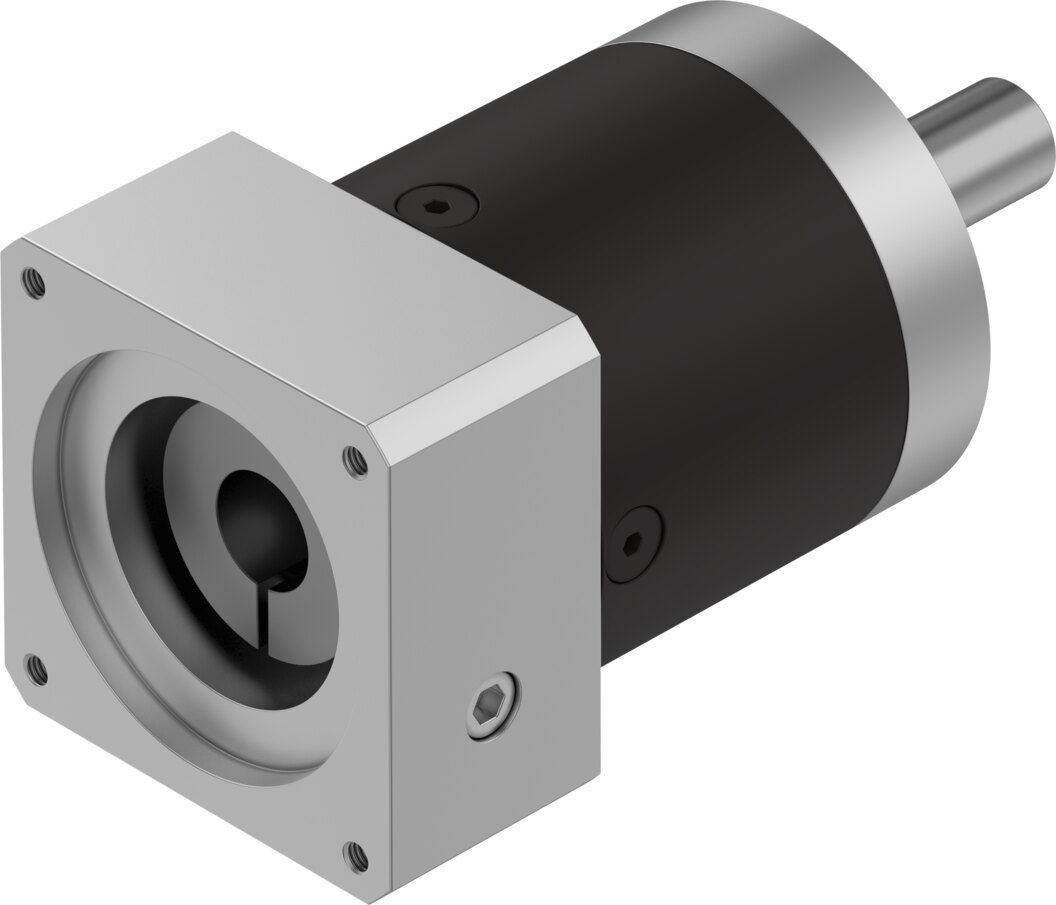

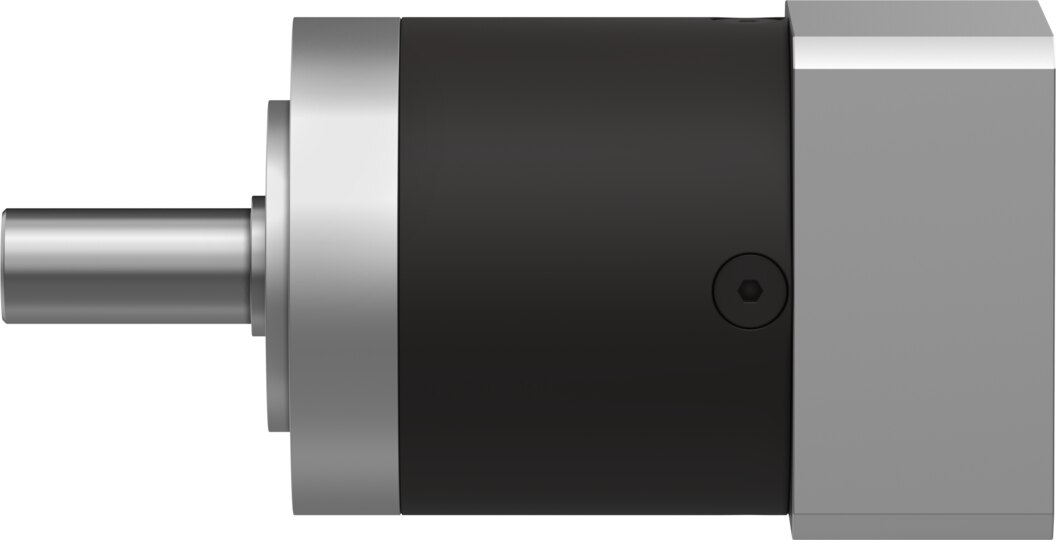

Planetary gear unit 20:1, 44 Nm continuous output torque, flange 60 mm, motor 60 mm EMGA-60-P-G20-EAS-60 - Festo 8141737

Festo ✓ Original product Brand new

With a 20:1 ratio and 44 Nm continuous output torque, the Festo EMGA-60-P-G20-EAS-60 matches motor power to the load. Torsional backlash 0.2°, efficiency up to 96 %. Motor side flange 60 mm with interface 60P, output side 60 mm.

Net
€635.29
excl. VAT
Item FES-8141737
Manufacturer no. EMGA-60-P-G20-EAS-60
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Planetary gear unit EMGA-60-P-G20-EAS-60: ratio 20:1, torsional backlash 0.2°, 60 mm flange on the output side.

Benefits

  • Ratio 20:1, continuous output torque 44 Nm
  • Max. output torque 70 Nm for start-up and braking
  • Torsional backlash 0.2° for repeatable positions
  • Efficiency up to 96 %
  • Torsional stiffness 2.8 Nm/arcmin
  • Input speed up to 13000 1/min

Application

Used between motor and axis, for example on toothed belt axes and rotary modules. Before mounting, check flange 60 mm and shaft loads of the EMGA-60-P-G20-EAS-60.

Technical data

TypeEMGA-60-P-G20-EAS-60
Festo part no.8141737
Weight1.2 kg
Gear unit flange size60 mm
Motor flange size60 mm
Torsional backlash0.2°
Type of gear unitPlanetary gear set
Gear unit ratio20:1
Maximum drive speed13000 1/min
Operating temperature of gear unit-25 to 90 °C
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque44 Nm
Mass moment of inertia of gear unit0.096 kgcm²
Maximum output torque70 Nm
Maximum efficiency96 %
Torsional rigidity2.8 Nm/arcmin
Product weight1100 g
Permissible axial shaft load500 N
Permissible radial shaft load400 N
Gear unit interface, output shaft60H
Gear unit interface, drive shaft60P
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEMGA-60-P-G20-EAS-60
EAN4052568565169
Zolltarifnummer84834090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungPlanetengetriebe 20:1
SeriesEMGA
Protection ratingIP54
Temperature (max.)90
