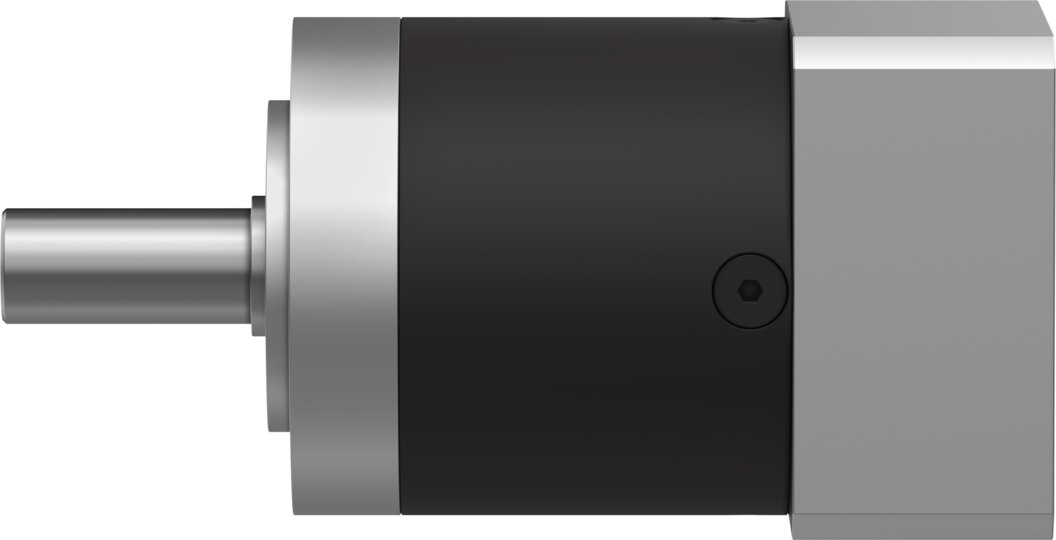

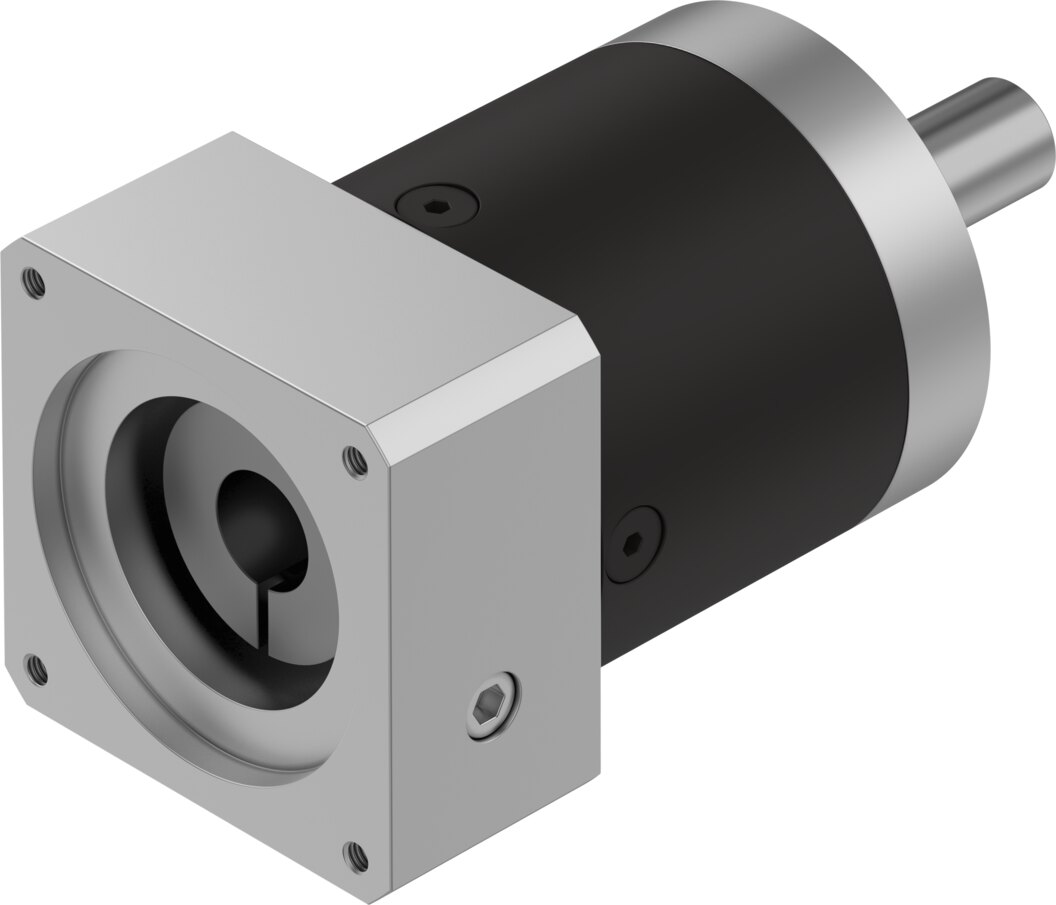

Planetary gear unit 12:1, 44 Nm continuous output torque, flange 60 mm, motor 60 mm EMGA-60-P-G12-EAS-60 - Festo 8141736
The EMGA-60-P-G12-EAS-60 planetary gear unit reduces motor speed at a ratio of 12:1 and transmits 44 Nm continuously. Torsional backlash 0.2°, efficiency up to 96 %. Motor side flange 60 mm with interface 60P, output side 60 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Planetary gear unit EMGA-60-P-G12-EAS-60: ratio 12:1, torsional backlash 0.2°, 60 mm flange on the output side.
Benefits
- Ratio 12:1, continuous output torque 44 Nm
- Max. output torque 70 Nm for start-up and braking
- Torsional backlash 0.2° for repeatable positions
- Efficiency up to 96 %
- Torsional stiffness 2.8 Nm/arcmin
- Input speed up to 13000 1/min
Application
For servo and stepper motors on electric axes when more torque or better inertia matching is needed. Motor flange 60 mm, interface 60P.
Technical data
| Type | EMGA-60-P-G12-EAS-60 |
|---|---|
| Festo part no. | 8141736 |
| Weight | 1.2 kg |
| Gear unit flange size | 60 mm |
| Motor flange size | 60 mm |
| Torsional backlash | 0.2° |
| Type of gear unit | Planetary gear set |
| Gear unit ratio | 12:1 |
| Maximum drive speed | 13000 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 44 Nm |
| Mass moment of inertia of gear unit | 0.138 kgcm² |
| Maximum output torque | 70 Nm |
| Maximum efficiency | 96 % |
| Torsional rigidity | 2.8 Nm/arcmin |
| Product weight | 1100 g |
| Permissible axial shaft load | 500 N |
| Permissible radial shaft load | 400 N |
| Gear unit interface, output shaft | 60H |
| Gear unit interface, drive shaft | 60P |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-60-P-G12-EAS-60 |
| EAN | 4052568565152 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Planetengetriebe 12:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
