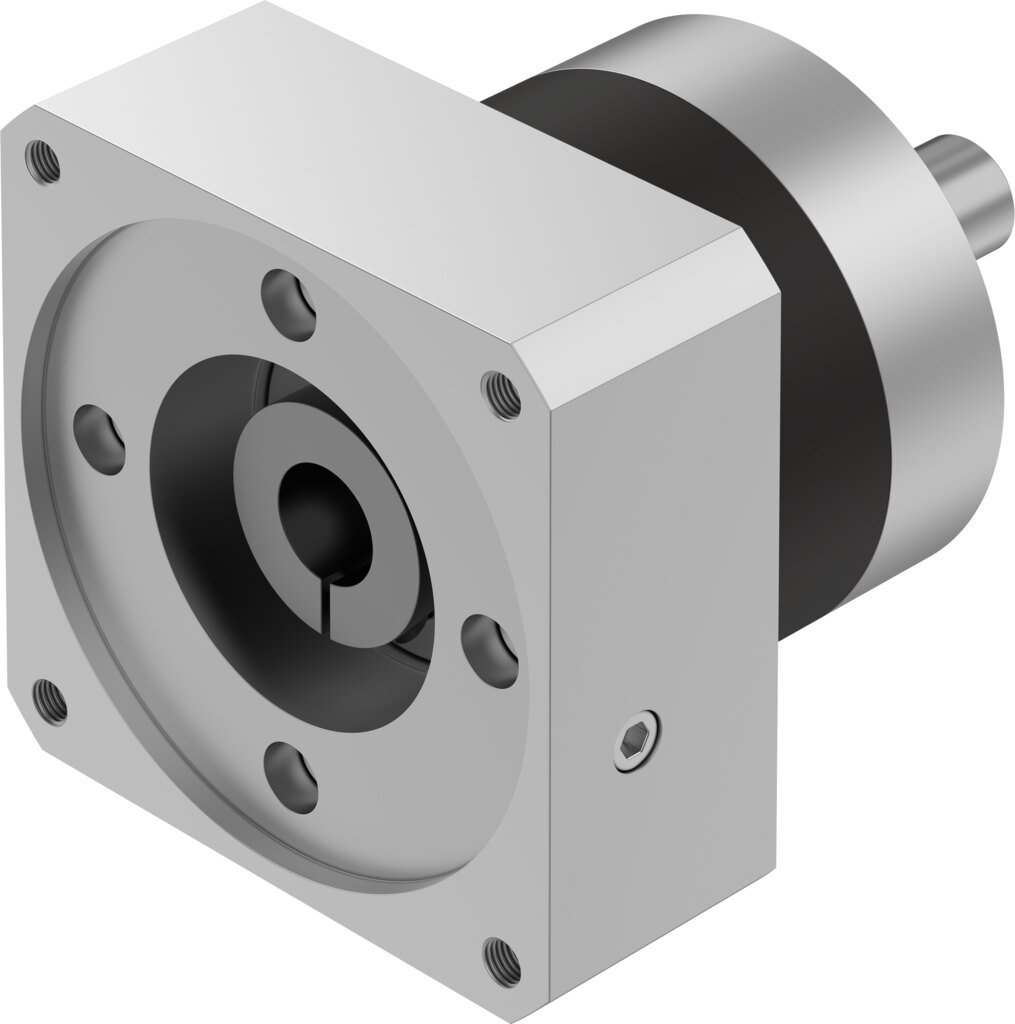

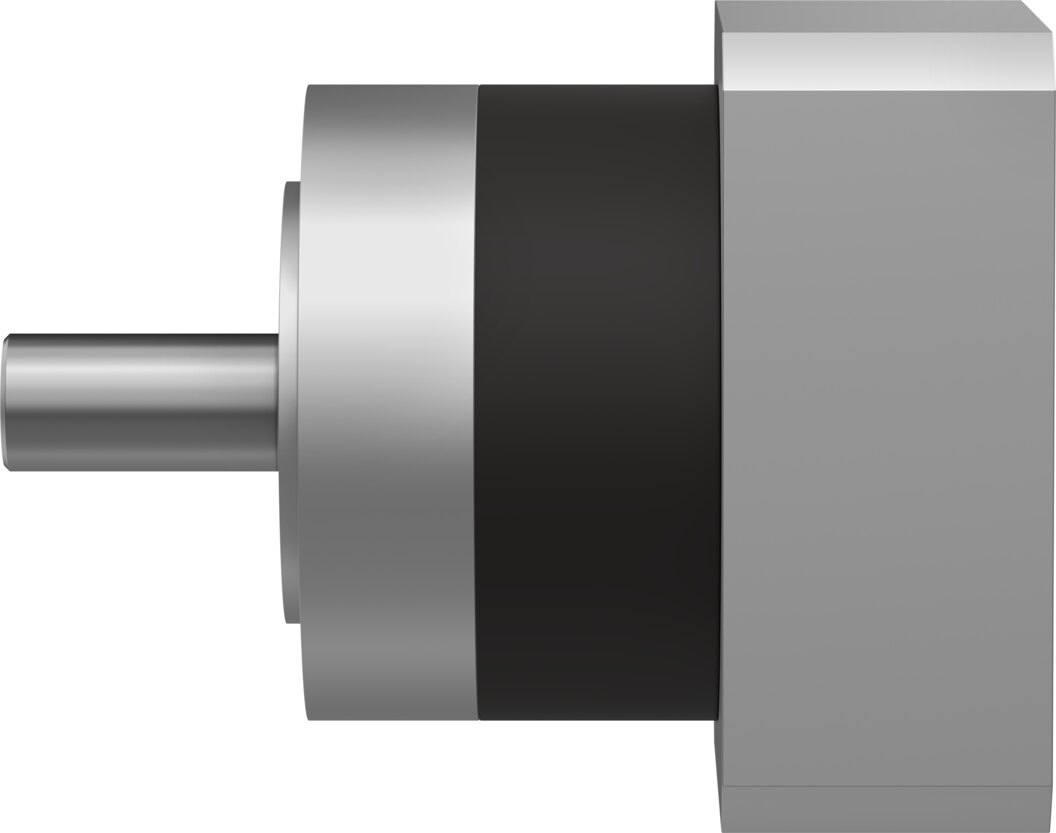

Planetary gear unit 8:1, 120 Nm continuous output torque, flange 120 mm, motor 140 mm EMGA-120-P-G8-SAS-140 - Festo 8141759
With a 8:1 ratio and 120 Nm continuous output torque, the Festo EMGA-120-P-G8-SAS-140 matches motor power to the load. Torsional backlash 0.12°, efficiency up to 97 %. Motor side flange 140 mm with interface 140A, output side 120 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo EMGA-120-P-G8-SAS-140 is a planetary gear unit with a 8:1 ratio and 380 Nm max. output torque.
Benefits
- Ratio 8:1, continuous output torque 120 Nm
- Max. output torque 380 Nm for start-up and braking
- Torsional backlash 0.12° for repeatable positions
- Efficiency up to 97 %
- Torsional stiffness 18 Nm/arcmin
- Input speed up to 6500 1/min
Application
Used between motor and axis, for example on toothed belt axes and rotary modules. Before mounting, check flange 140 mm and shaft loads of the EMGA-120-P-G8-SAS-140.
Technical data
| Type | EMGA-120-P-G8-SAS-140 |
|---|---|
| Festo part no. | 8141759 |
| Weight | 7 kg |
| Gear unit flange size | 120 mm |
| Motor flange size | 140 mm |
| Torsional backlash | 0.12° |
| Type of gear unit | Planetary gear set |
| Gear unit ratio | 8:1 |
| Maximum drive speed | 6500 1/min |
| Operating temperature of gear unit | -25 to 90 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 120 Nm |
| Mass moment of inertia of gear unit | 1.431 kgcm² |
| Maximum output torque | 380 Nm |
| Maximum efficiency | 97 % |
| Torsional rigidity | 18 Nm/arcmin |
| Product weight | 7000 g |
| Gear unit interface, output shaft | 120G |
| Gear unit interface, drive shaft | 140A |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EMGA-120-P-G8-SAS-140 |
| EAN | 4052568565350 |
| Zolltarifnummer | 84834090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Planetengetriebe 8:1 |
| Series | EMGA |
| Protection rating | IP54 |
| Temperature (max.) | 90 |
