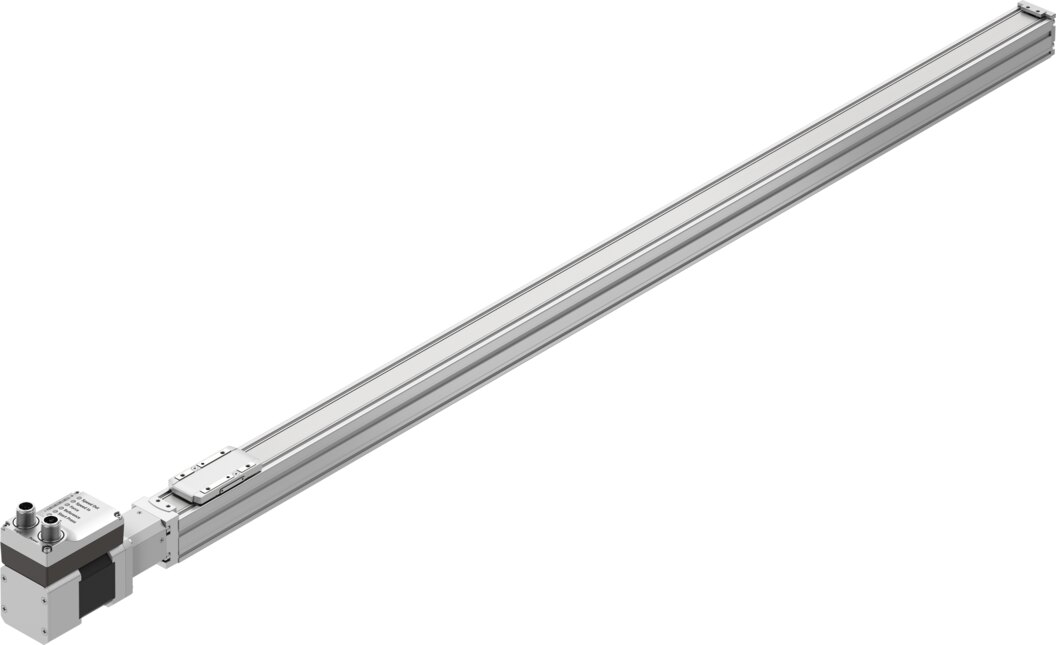

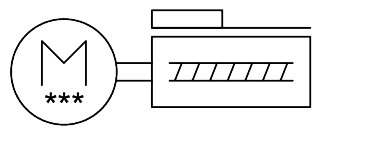

Ball screw axis unit with integrated drive stroke 800 mm ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA - Festo 8083430
The ball screw axis unit ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA moves loads over an 800 mm stroke and returns to position within ±0.015 mm. Ball screw with 8 mm pitch, feed force up to 40 N and travel speed up to 0.18 m/s.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo ball screw axis unit ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA at a glance: 800 mm stroke, size 32, up to 0.18 m/s. The ball screw with 8 mm/rev pitch converts motor torque into up to 40 N feed force, while the recirculating ball bearing guide carries transverse forces up to 356 N.
Advantages
- Reproducible end positions with ±0.015 mm repeatability.
- Short cycles with up to 0.18 m/s and 5 m/s².
- Integrated drive, motor encoder, end-position detection.
- Feed force up to 40 N in the direction of motion.
- Parameterisation via IO-Link, supply 24 V DC.
- Transverse forces up to 356 N and moments up to 1.3 Nm via the recirculating ball bearing guide.
Application
The ball screw axis unit ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA needs no separate servo drive and can be commissioned directly on the machine over its 800 mm stroke. Mounting position any, ambient temperature 0 to 50 °C. Price-list weight 2.1 kg.
Technical data
| Type | ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA |
|---|---|
| Working stroke | 800 mm |
| Size | 32 |
| Stroke reserve | 0 mm |
| Spindle diameter | 8 mm |
| Spindle pitch | 8 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw, with integrated drive |
| Type of motor | Stepper motor |
| Spindle type | Ball screw |
| Position detection | Motor encoder, via proximity switch |
| Referencing | Positive fixed stop block, negative fixed stop block |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Temperature monitoring | Switch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output |
| Additional functions | User interface, Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 5 m/s² |
| Maximum speed | 0.18 m/s |
| Speed "Speed press" | 0.01 m/s |
| Repetition accuracy | ±0.015 mm |
| Features of digital logic outputs | Configurable, not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 3000 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 3 A |
| Parameterisation interface | IO-Link®, user interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, to UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C. |
| 2nd moment of area Iy | 38000 mm⁴ |
| 2nd moment of area Iz | 45000 mm⁴ |
| Maximum force Fy | 356 N |
| Maximum force Fz | 356 N |
| Maximum force Fy total axis | 150 N |
| Maximum force Fz total axis | 300 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 1310 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 1310 N |
| Maximum moment Mx | 1.3 Nm |
| Maximum moment My | 1.1 Nm |
| Maximum moment Mz | 1.1 Nm |
| Maximum moment Mx total axis | 1.3 Nm |
| Maximum moment My total axis | 1.1 Nm |
| Maximum moment Mz total axis | 1.1 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 5 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 4 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 4 Nm |
| Maximum feed force Fx | 40 N |
| Reference value effective load, horizontal | 2 kg |
| Reference value effective load, vertical | 2 kg |
| Torsional mass moment of inertia It | 1700 mm⁴ |
| Feed constant | 8 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 83.4 g |
| Product weight | 2329 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, maximum 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| IO-Link, SIO-Mode support | Yes |
| Features of logic input | Configurable, not galvanically isolated |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | Move in 1 bit, move out 1 bit, quit Error 1 bit, move intermediate 1 bit |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | State Device 1 bit, state In 1 bit, state Intermediate 1 bit, state Move 1 bit, state Out 1 bit |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min. cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link® operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | With female thread, with centring sleeve and pin, with accessories |
| Material end cap | Painted die cast aluminium |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Painted die cast aluminium |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Die-cast aluminium |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight (price list) | 2.1 kg |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA |
| EAN | 4052568458331 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 800 |
| Housing material | Aluminium, anodised |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
