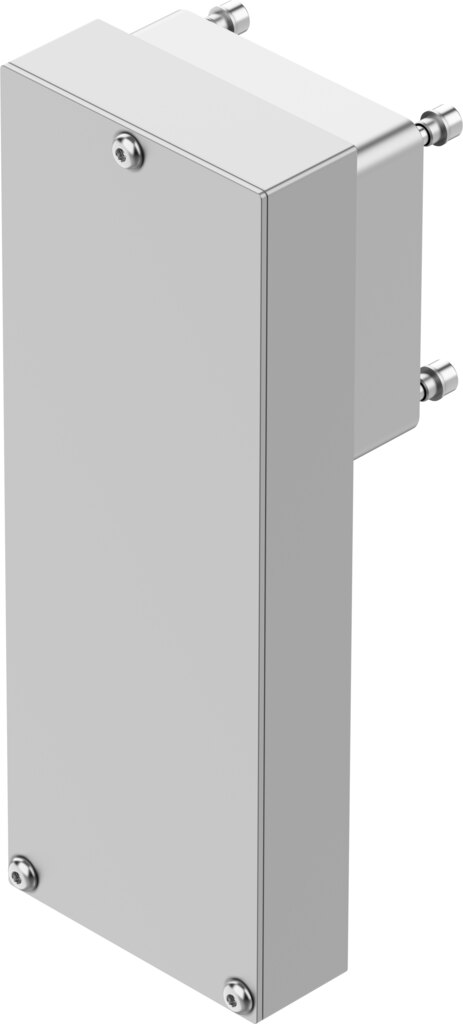

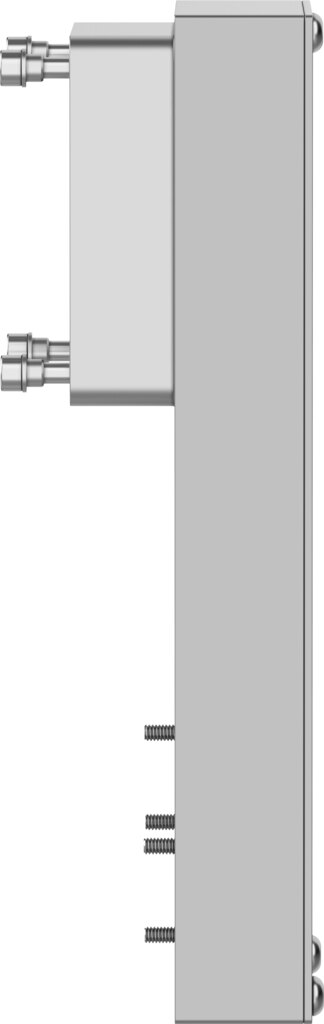

Parallel kit for motor mounting, 3 Nm, actuator T42, motor 84AA EAMM-U-87-T42-84AA-147 - Festo 8223780

Festo ✓ Original product Brand new

With the parallel kit EAMM-U-87-T42-84AA-147 the motor sits alongside the axis instead of extending it. The transmittable torque is 3 Nm, the part is rated for up to 3000 1/min. The codes T42 (actuator) and 84AA (motor) define the match.

Net
€328.44
excl. VAT
Item FES-8223780
Manufacturer no. EAMM-U-87-T42-84AA-147
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the parallel kit EAMM-U-87-T42-84AA-147 the motor sits alongside the axis instead of extending it. The transmittable torque is 3 Nm, the part is rated for up to 3000 1/min.

Why this part

  • Transmittable torque 3 Nm
  • Speeds up to 3000 1/min
  • Ratio 1:1, motor speed and torque reach the axis unchanged
  • No-load driving torque only 0.22 Nm
  • Mass moment of inertia 44.2 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-U-87-T42-84AA-147.

Technical data

TypeEAMM-U-87-T42-84AA-147
Festo part no.8223780
Size87
Centre-to-centre distance147 mm
Gear unit ratio1:1
Transmittable torque3 Nm
Frictional torque independent of load0.22 Nm
Max. rotational speed3000 1/min
Mass moment of inertia44.2 kgmm²
Interface code, actuatorT42
Interface code, motor in84AA
Degree of protectionIP40
Mounting positionAny
Ambient temperature0 to 50 °C
Storage temperature-20 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-zone III
Product weight1223 g
Note on materialsRoHS compliant
Weight1.3 kg
ManufacturerFesto
Hersteller-NrEAMM-U-87-T42-84AA-147
EAN4052568802011
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
